AR33.15-P-0160-02EW Press Torque Strut Rubber Bushing In/Out

AR33.15-P-0160-02EW Press torque strut rubber bushing in/out

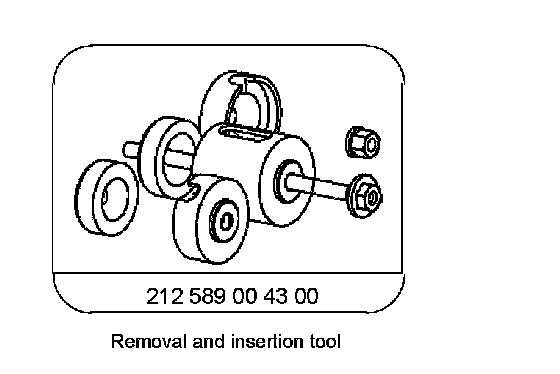

Special Tools:

Mark
1 Mark rubber mount (1) relative to strut rod (2).

Component Identification:

Vehicles without 4MATIC

Component Identification:

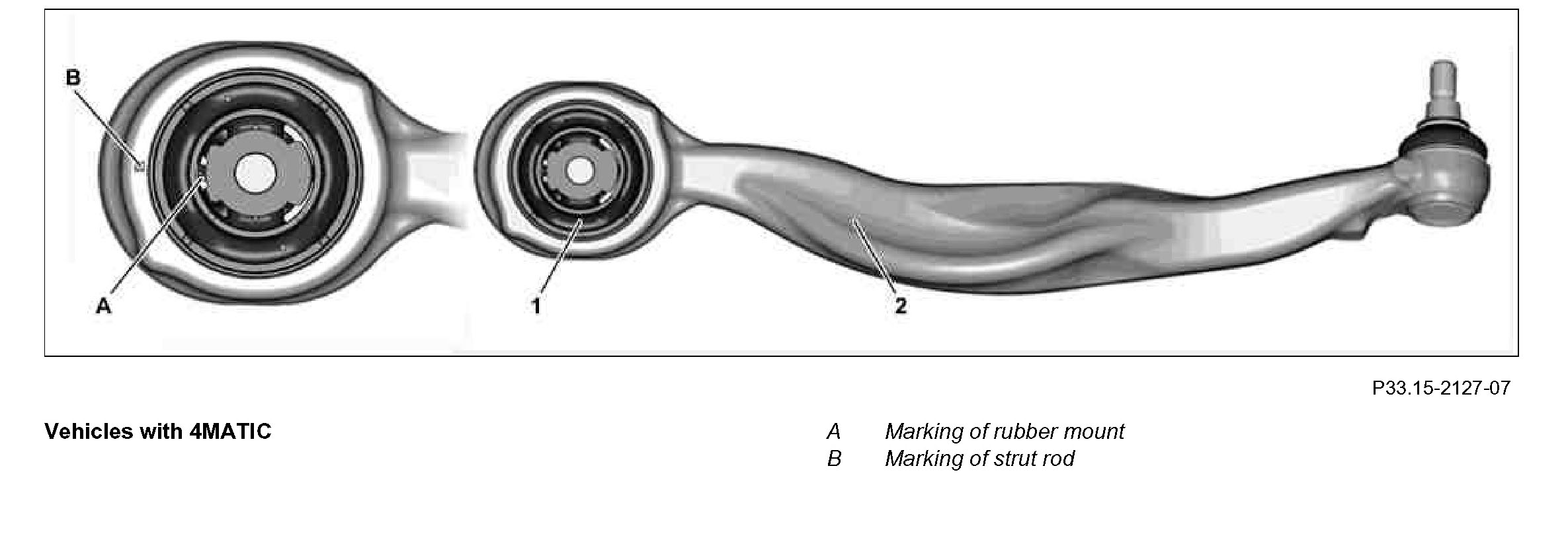

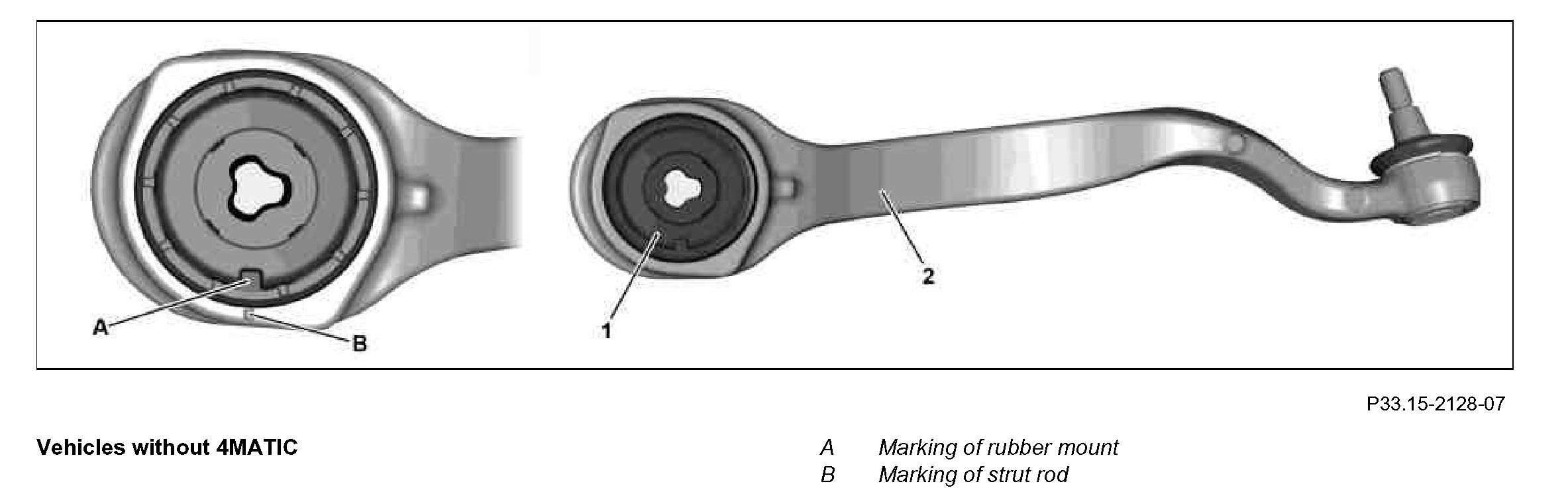

Vehicles with 4MATIC

Component Identification:

Press out

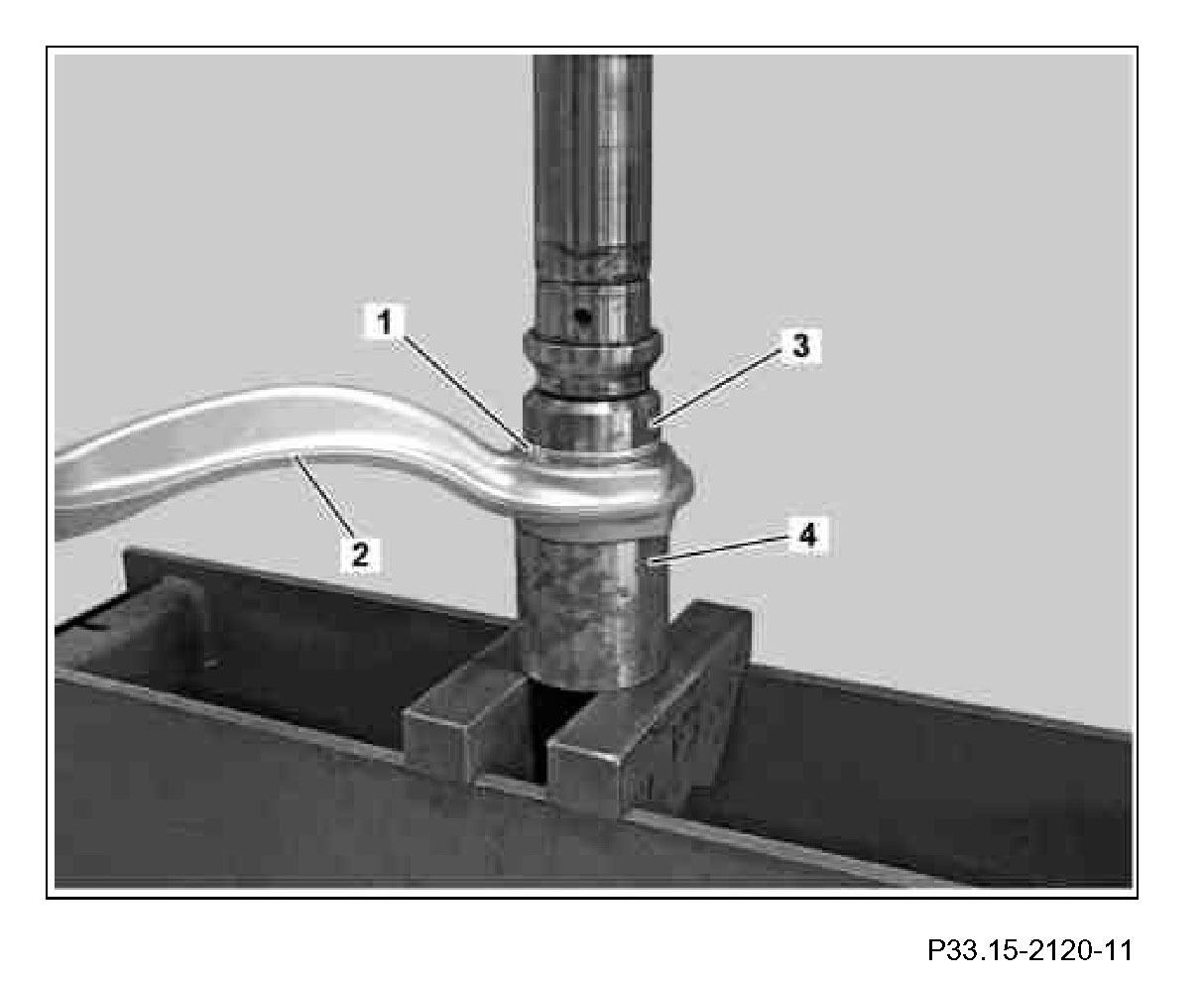

2 Attach the extraction tool to the non-chamfered side of the strut rod (2) and press out rubber mount (1).

212 589 00 43 01 (3) and use 212 589 00 43 03 (4) from the extraction and insertion tool.

3 Check bearing seat in torque strut (2).

Should the bearing seat have clearly noticeable scores, the torque strut (2) should be replaced

Component Identification:

Pressing in
4 Attach chamfered side of the rubber mount (1) to the chamfered side of the strut rod.

Align marking of rubber mount (A) with marking of strut rod (B).

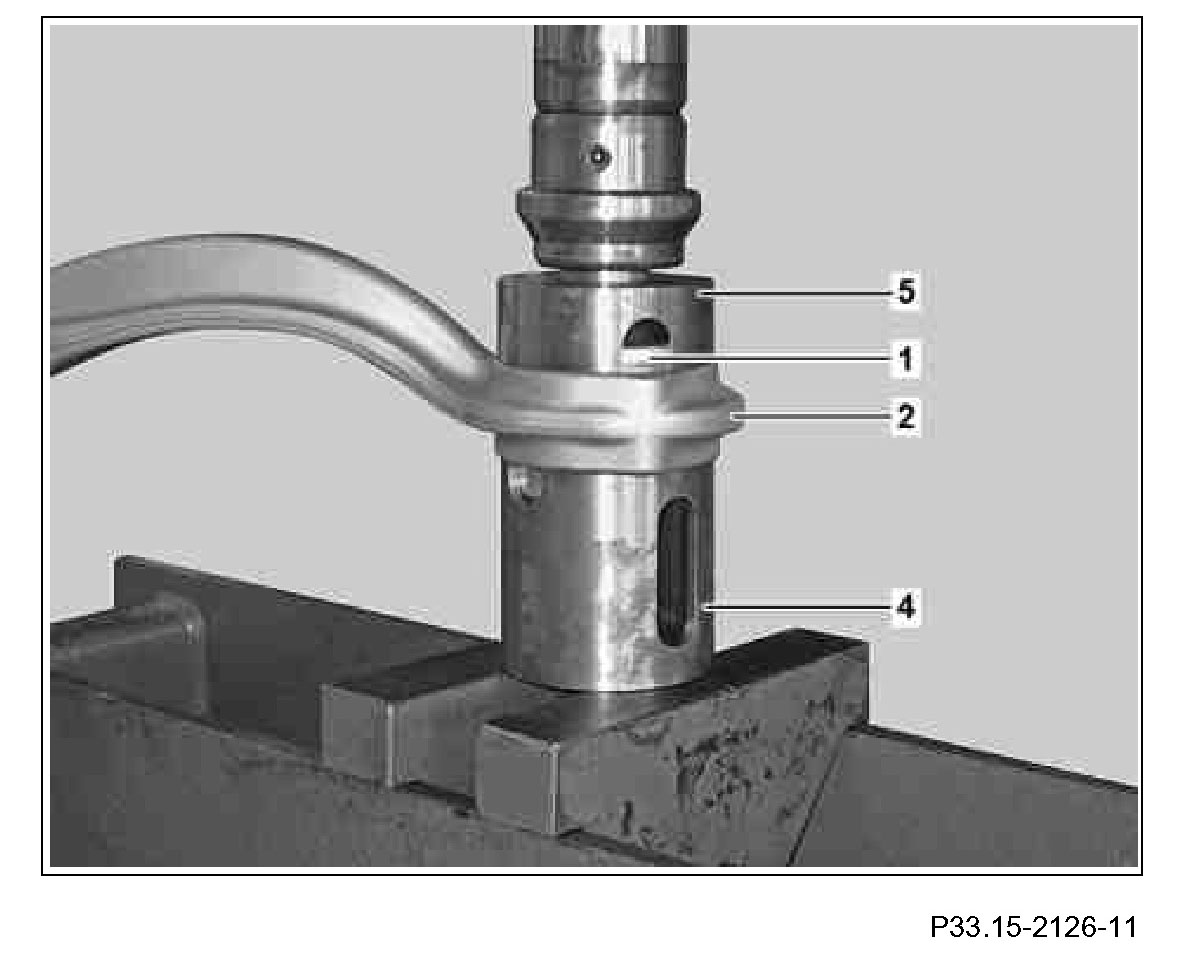

5 Attach insertion tool to the chamfered side of the strut rod and press in rubber mount (1) as far as the end stop.

212 589 00 43 04Use (5) and 212 589 00 43 03 (4) from the extraction and insertion tool.

Component Identification:

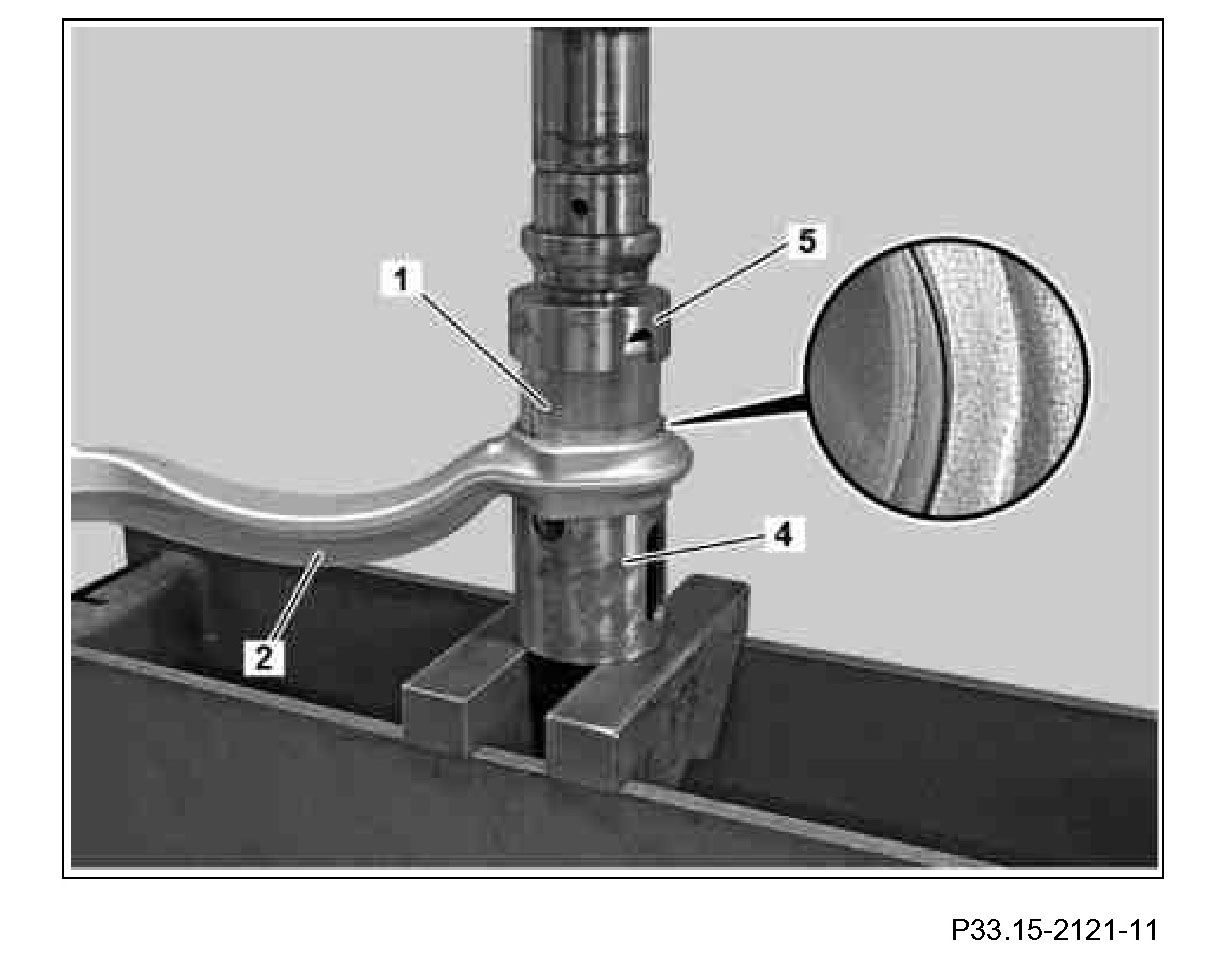

6 Turn over strut rod (2) and press rubber mount (1) again back as far as the end stop.

212 589 00 43 04Use (5) and 212 589 00 43 03 (4) from the extraction and insertion tool.
