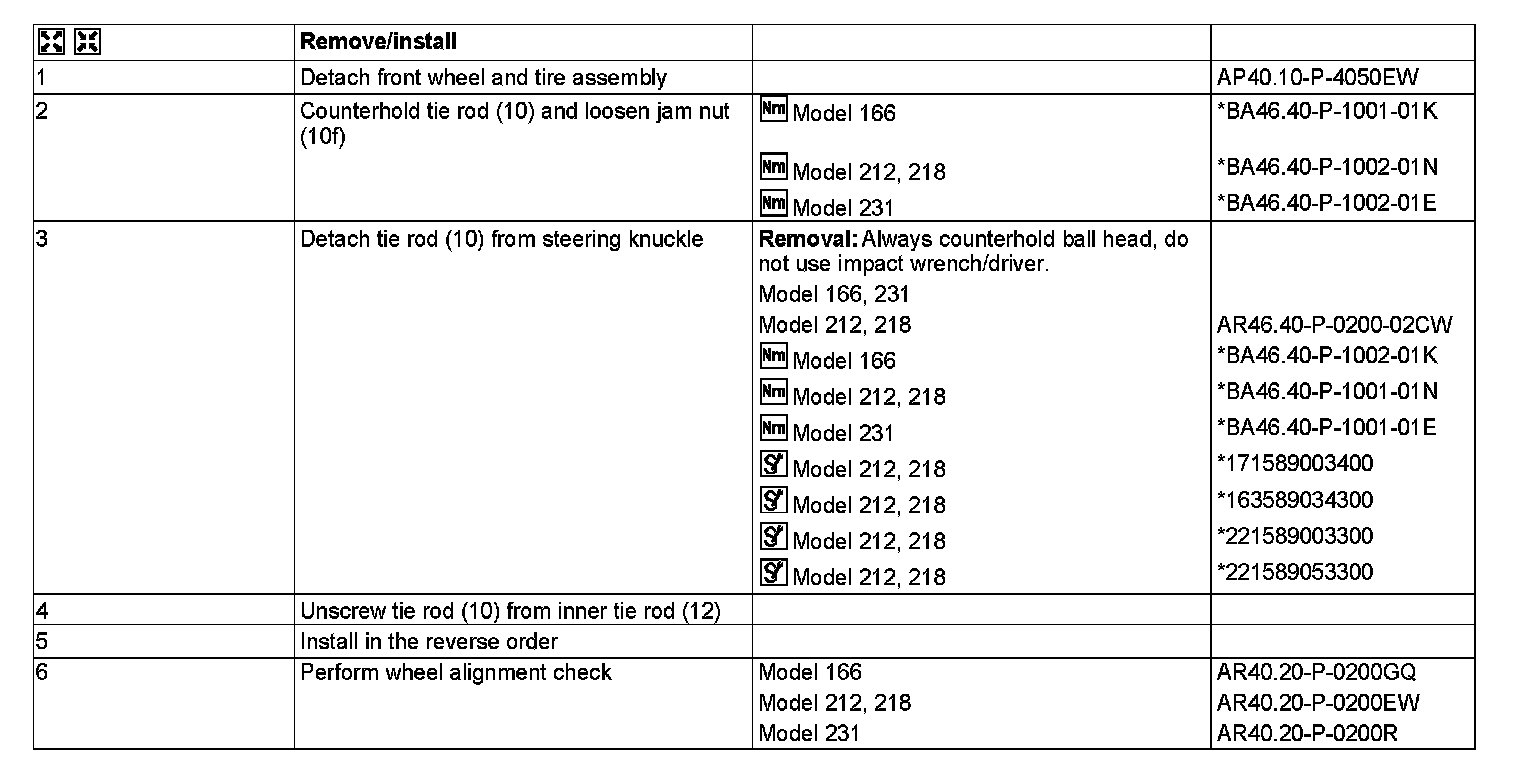

AR46.40-P-0200EW Remove/Install Track Rod

AR46.40-P-0200EW Remove/Install Track Rod
MODEL 166, 212, 218, 231





Shown on model 212 with hydraulic steering

10 Tie rod
10f Jam nut
12 Inner track rod











163 589 03 43 00
Press





171 589 00 34 00
Thrust piece





221 589 00 33 00
Puller





221 589 05 33 00
Puller
