Removal and Replacement

AR46.40-P-0400-02CW Push the boot onto the steering gear housing and position
- Bellows diaphragm valve

Component Identification:

1 Push boot (1) onto steering gear housing (2).

Models 204, 207, 212: Slide on so far until the recesses (1a) appear at the housing (2) of the steering gear.

2 Position boot (1):

Models 204, 207 with diaphragm valve (1b):

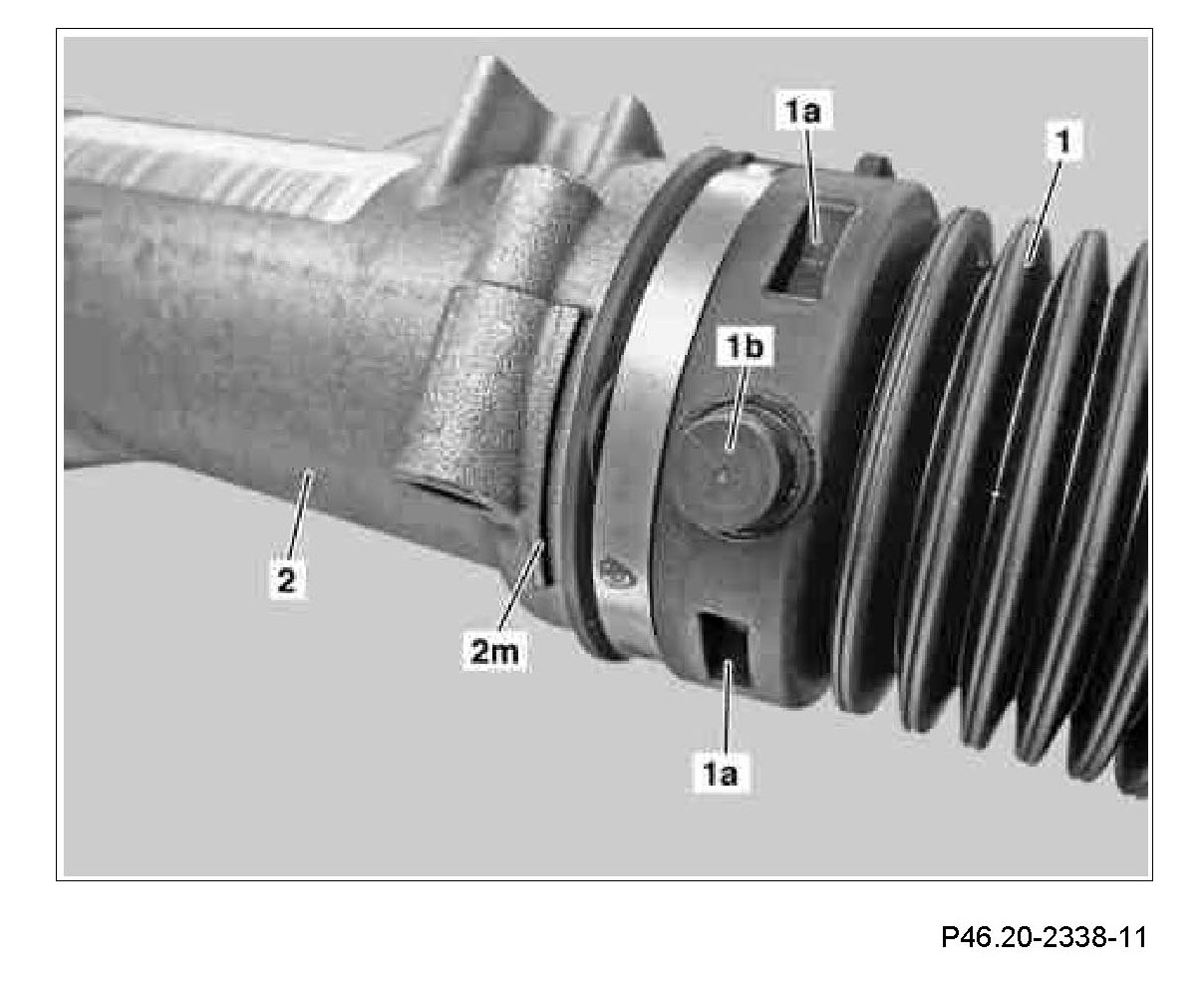

As shown in the picture the diaphragm valve (1b) must be located in the center of the marking (2m).

Model 164,171, 203, 209, 251:

The diaphragm valve (1b) must point in the direction of travel.

Model 211, 219: The diaphragm valve (1b) must point opposite to the direction of travel.

Shown on steering gear model 204
