AN46.11-P-0001-03EW Retrofit Steering Wheel Heater Control Unit

AN46.11-P-0001-03EW Retrofit steering wheel heater control unit

Component Identification:

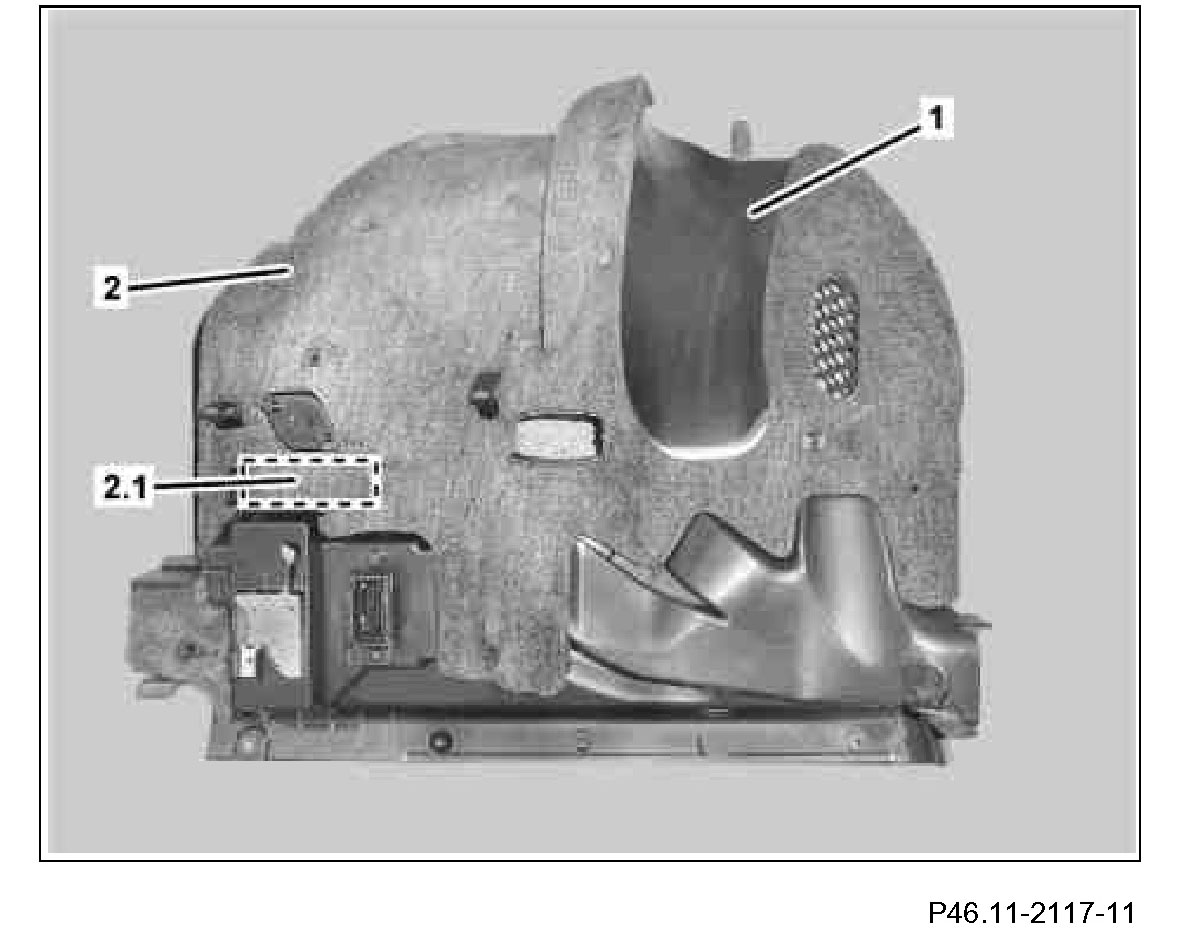

1 Cut out insulation mat (2) along the perforation and remove cutout (2.1) from panel under the left instrument panel (1).

Component Identification:

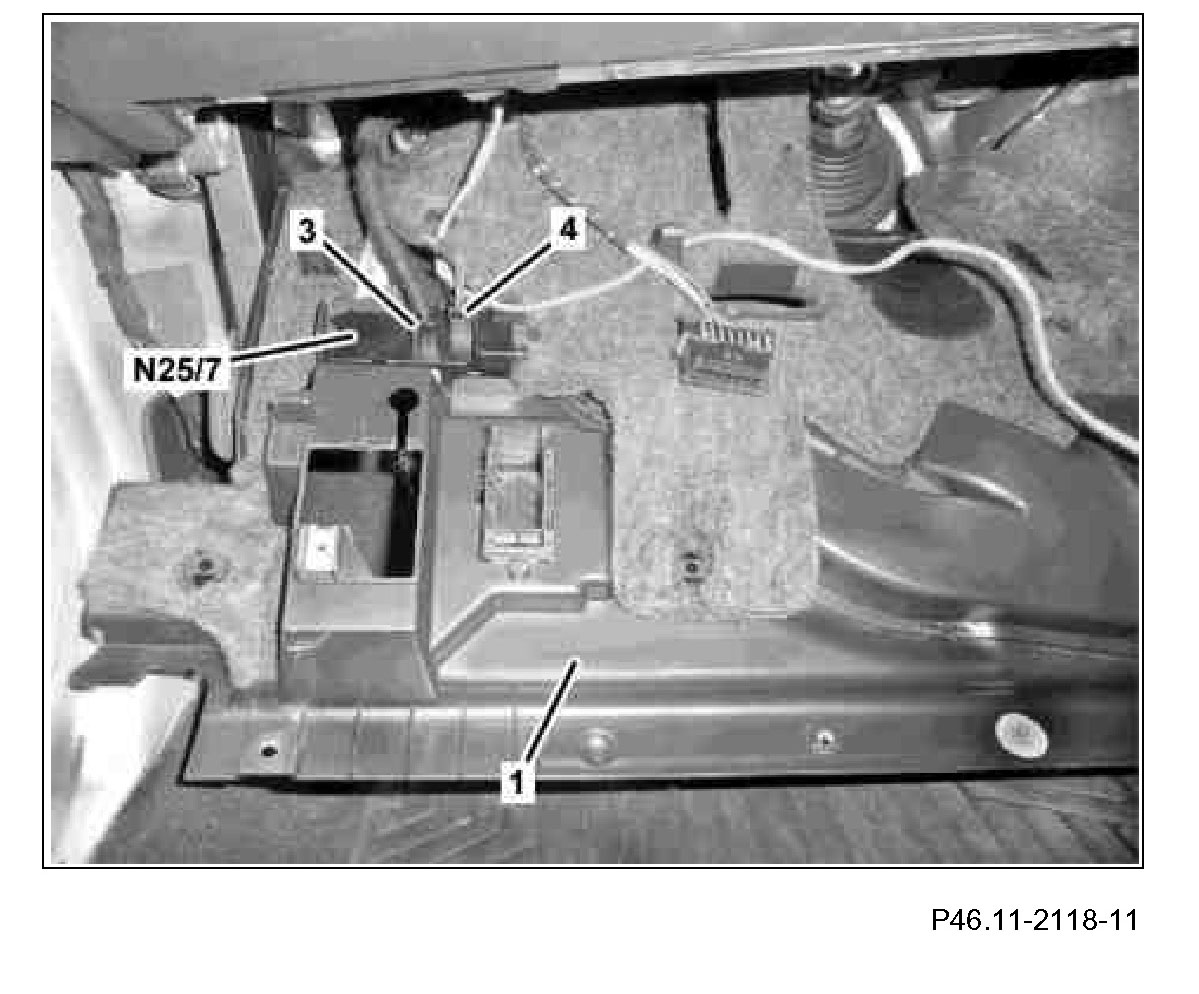

2 Clip steering wheel heater control unit (N25/7) into supports on panel under left instrument panel (1).
3 Place panel under left instrument panel (1) into driver footwell.
4 Connect black 2-pin connector (4) of wiring harness for power supply to steering wheel heater control unit (N25/7).
5 Connect black 4-pin connector (3) of wiring harness for steering wheel heater to steering wheel heater control unit (N25/7).

The panel under the left instrument panel (1) will be installed at a later stage.
