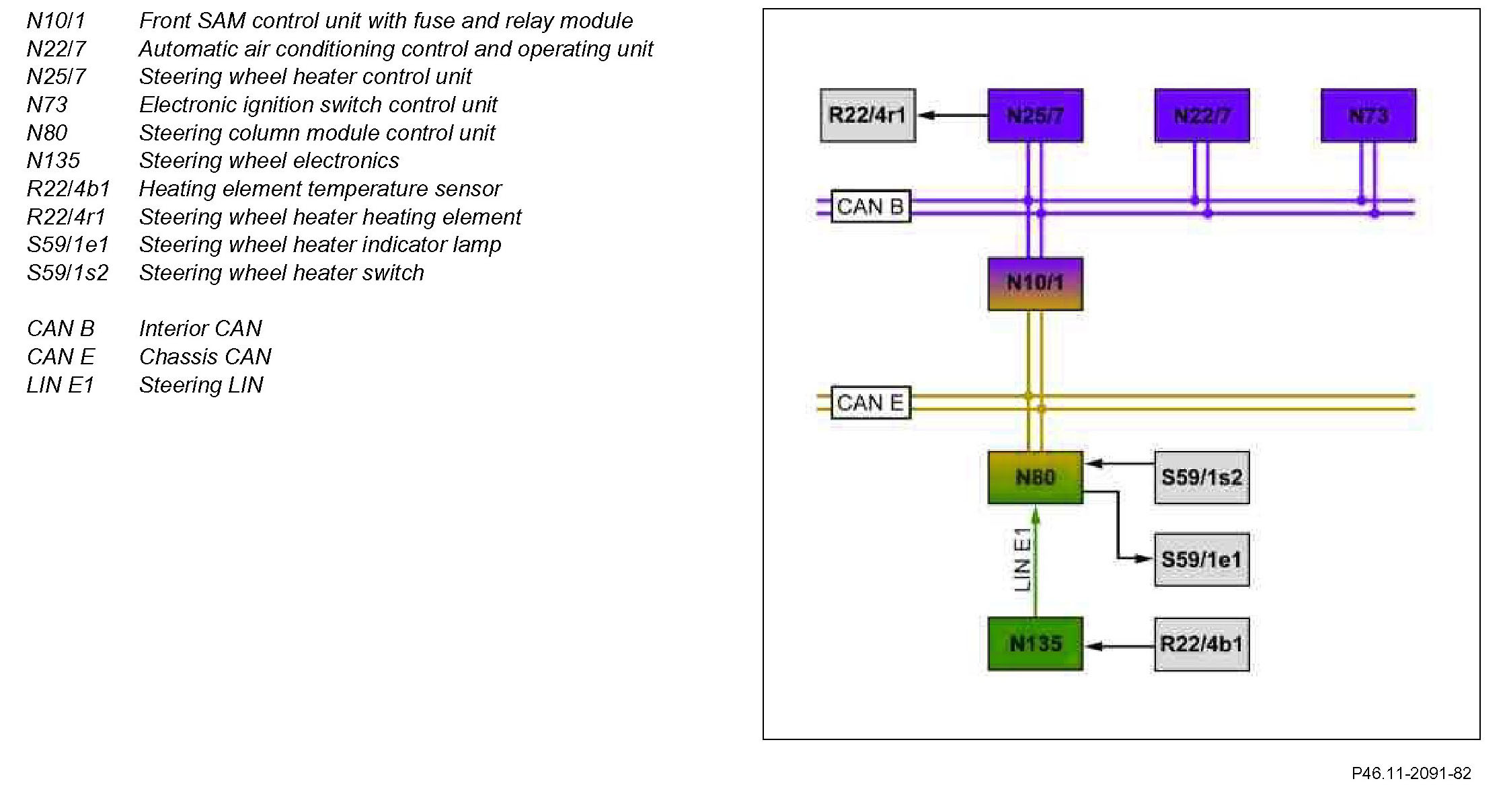

GF46.11-P-0001-02FL Steering Wheel Heater (LRH), Block Diagram



GF46.11-P-0001-02FL Steering wheel heater (LRH), block diagram
- with CODE (443) Steering wheel heater
