Steering Shaft: Service and Repair

AR46.10-P-7310-01CW Assemble lower steering shaft

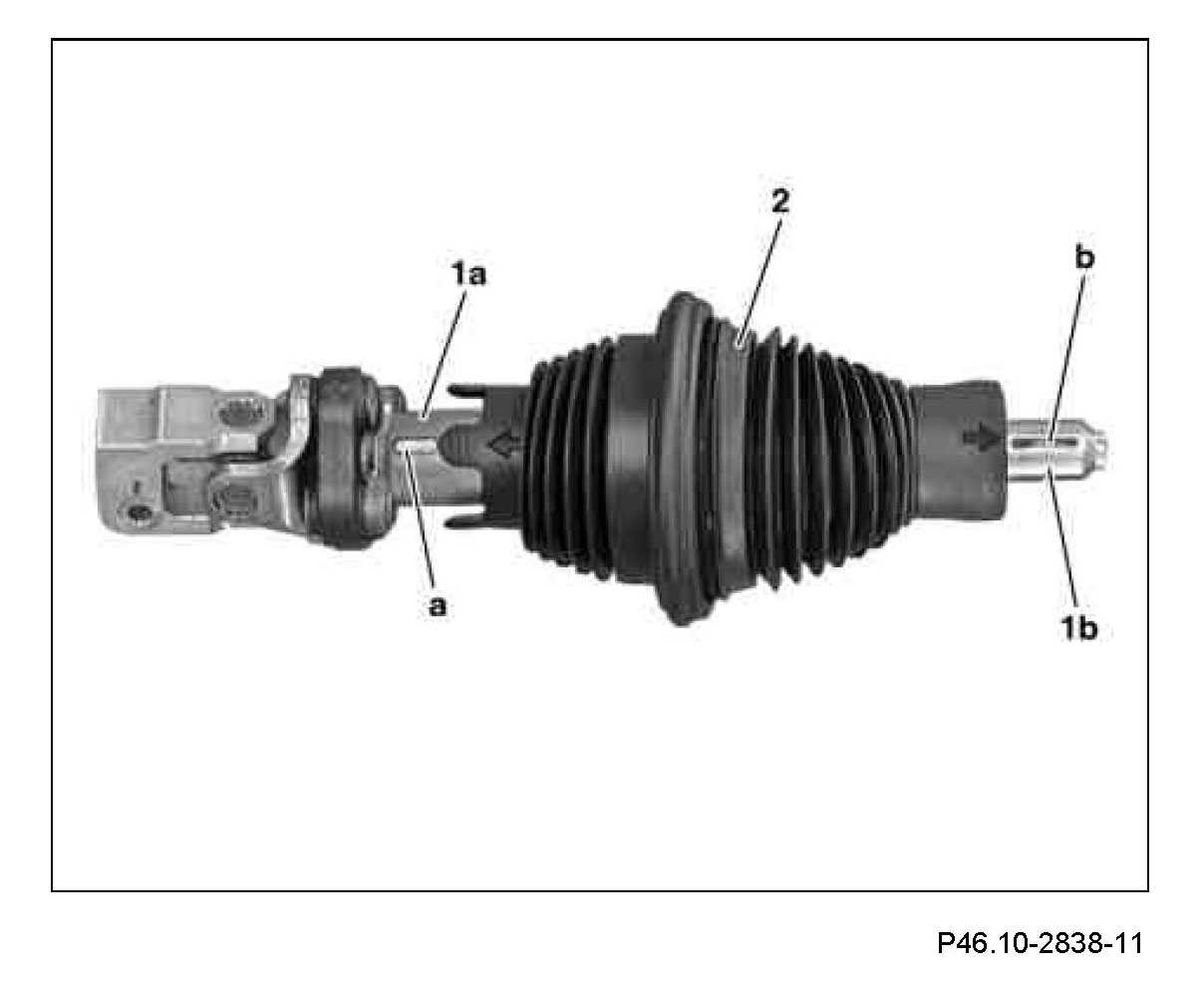

Component Identification:

The markings (a, b) must align exactly. As an arrow marking aid the arrows are applied to the boot (2).
1 Push the lower section (1b) of the steering shaft into boot (2).
The arrow on the boot (2) must point exactly to the marking (b).
2 Move the lower section (1b) of the steering shaft with boot (2) into the upper part (la) of the steering shaft.
The arrow on the boot (2) must point exactly to the marking (a).
