Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Gear >> Service and Repair >> Removal and Replacement >> AR46.20-P-3501EW Remove/Install Pipeline Between Control Head and Steering Gear Housing

AR46.20-P-3501EW Remove/Install Pipeline Between Control Head and Steering Gear Housing



AR46.20-P-3501EW Remove/install pipeline between control head and steering gear housing

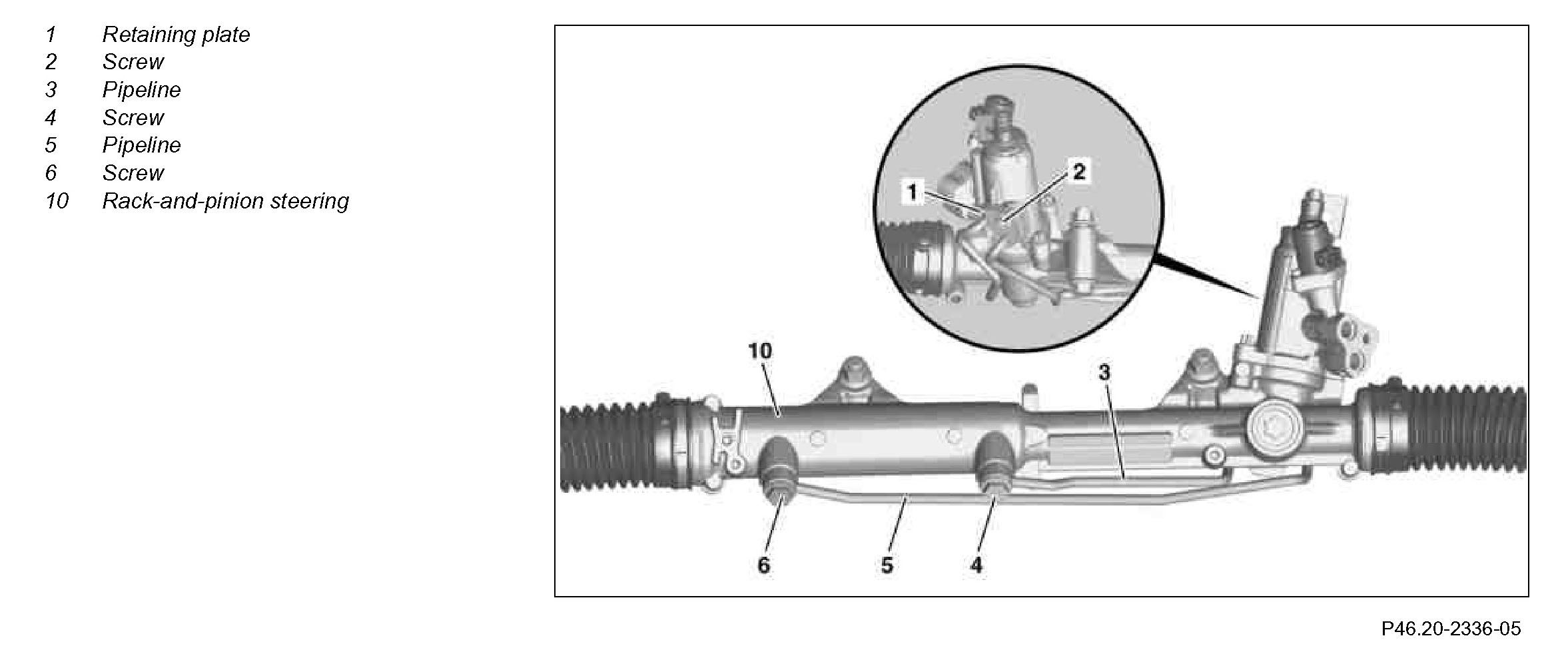

Component Identification:

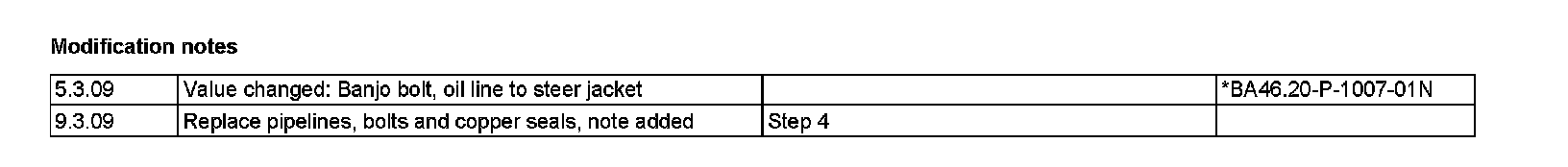

Modification notes:

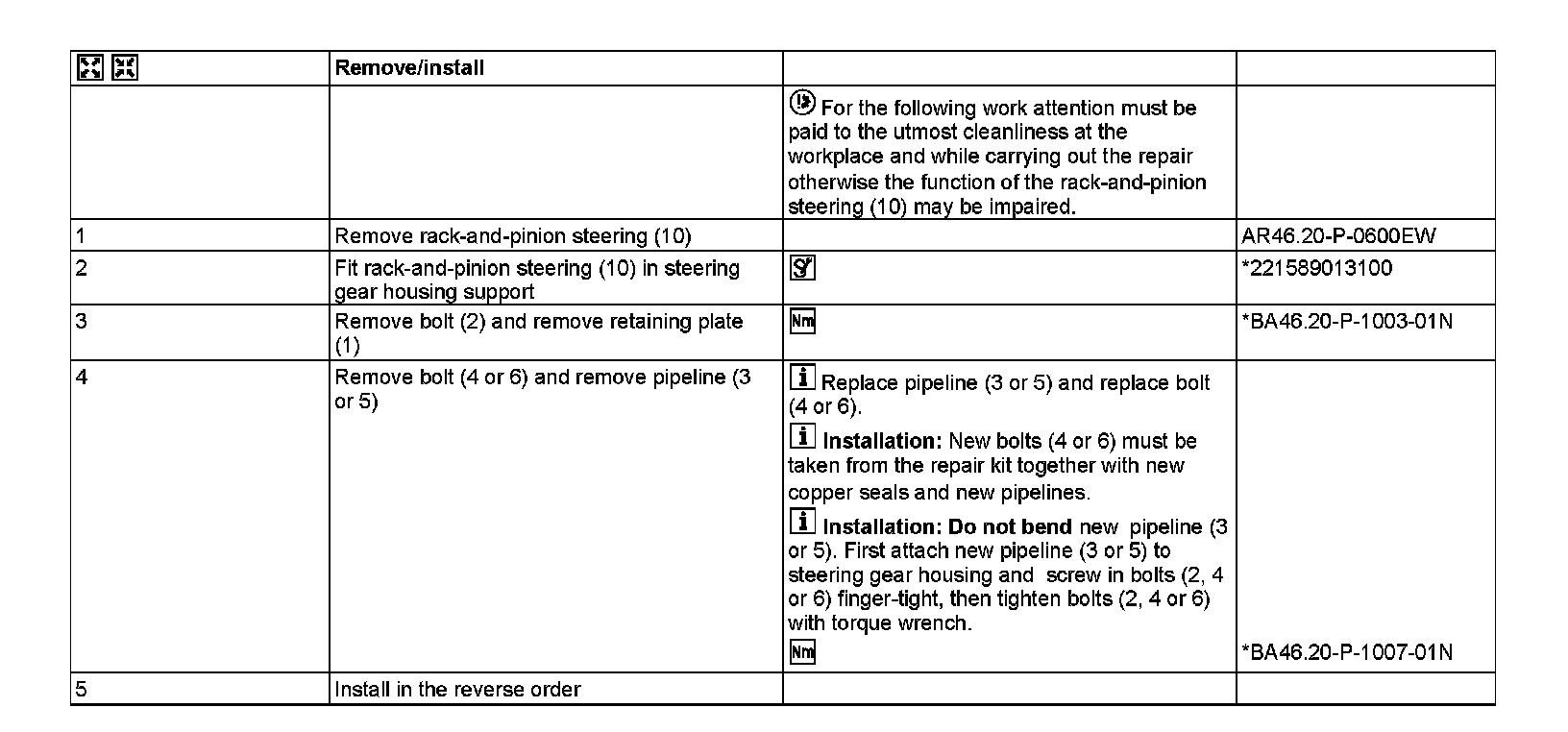

Steps 1-5:

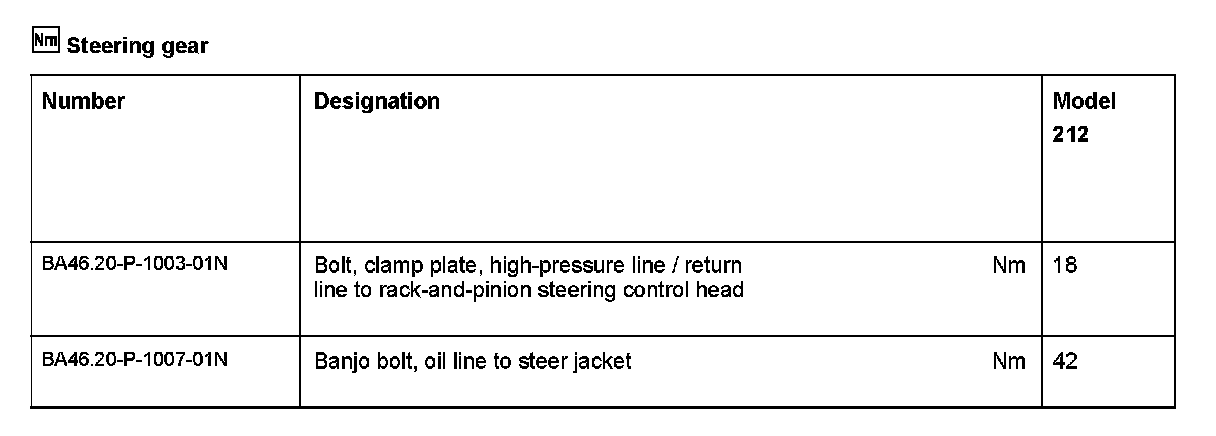

Steering gear:

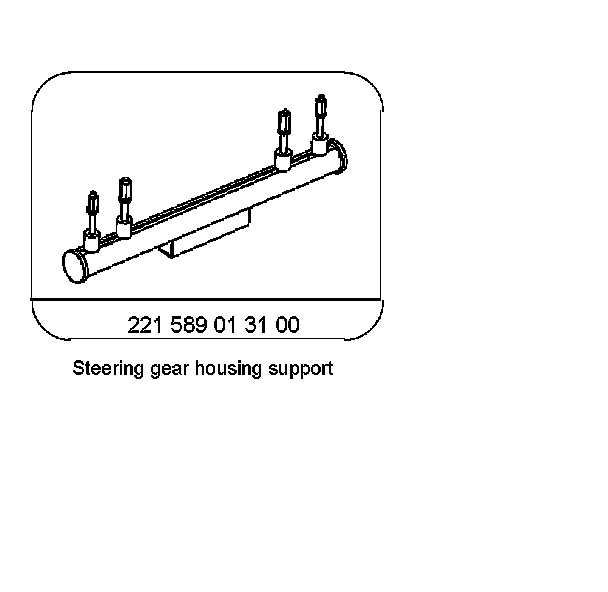

Special Tools:
