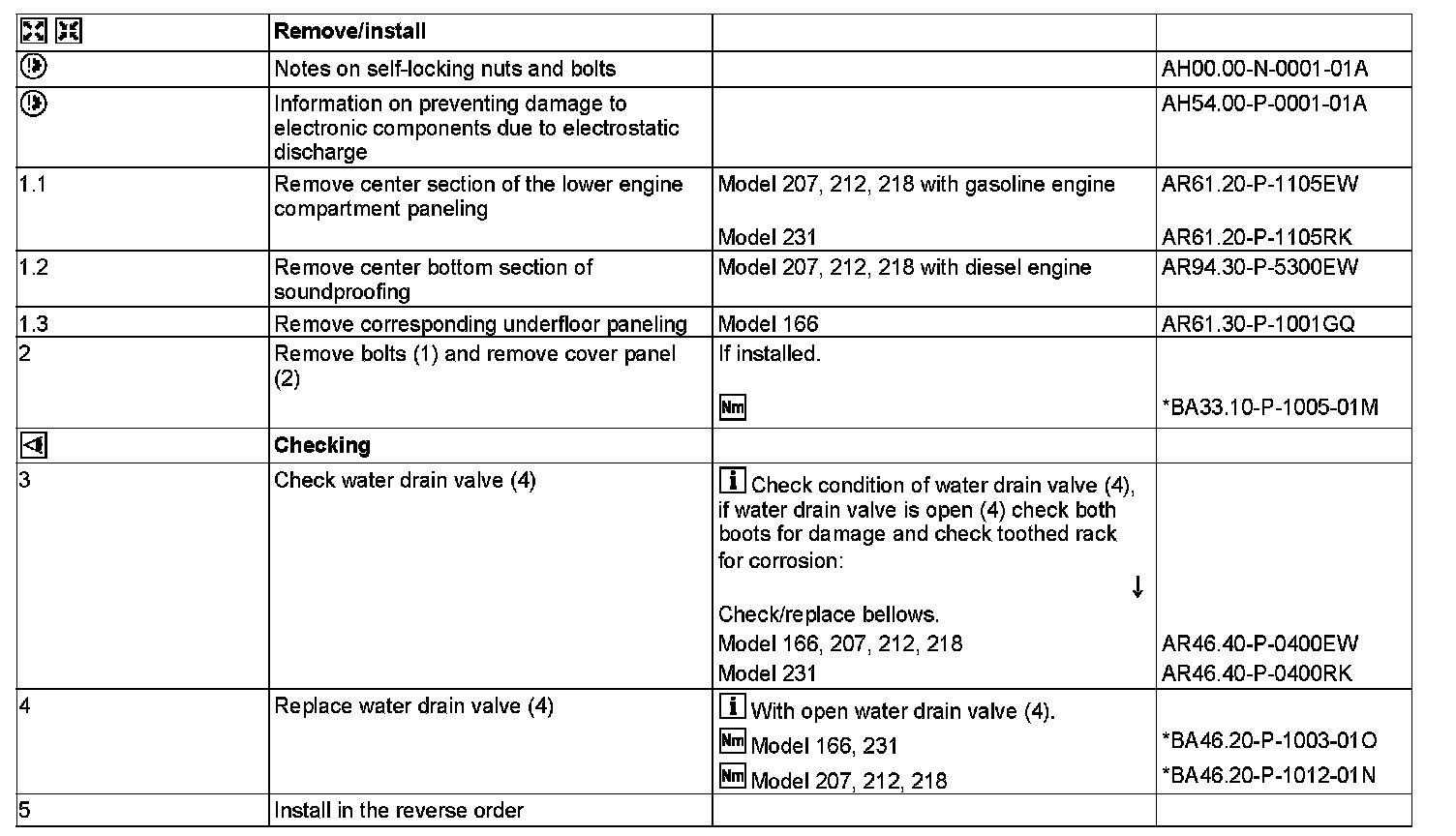

AR46.20-P-0005EW Check Water Drain Valve In Steering Gear, Reinstall

AR46.20-P-0005EW Check Water Drain Valve In Steering Gear, Reinstall
MODEL 207, 212, 231
With electric power steering (ES)
MODEL 166, 218





Shown on model 218

1 Screw
2 Cover panel
3 Steering gear
4 Water drain valve





Left figure:

Water drain valve (4) closed.





Right figure:

Water drain valve (4) open.
