AR46.20-P-0600-01CW Turn Rack-and-Pinion Steering to Center Position and Mount Steering Coupling

AR46.20-P-0600-01CW Turn rack-and-pinion steering to center position and mount steering coupling

Component Identification:

1 Turn rack-and-pinion steering to center position.

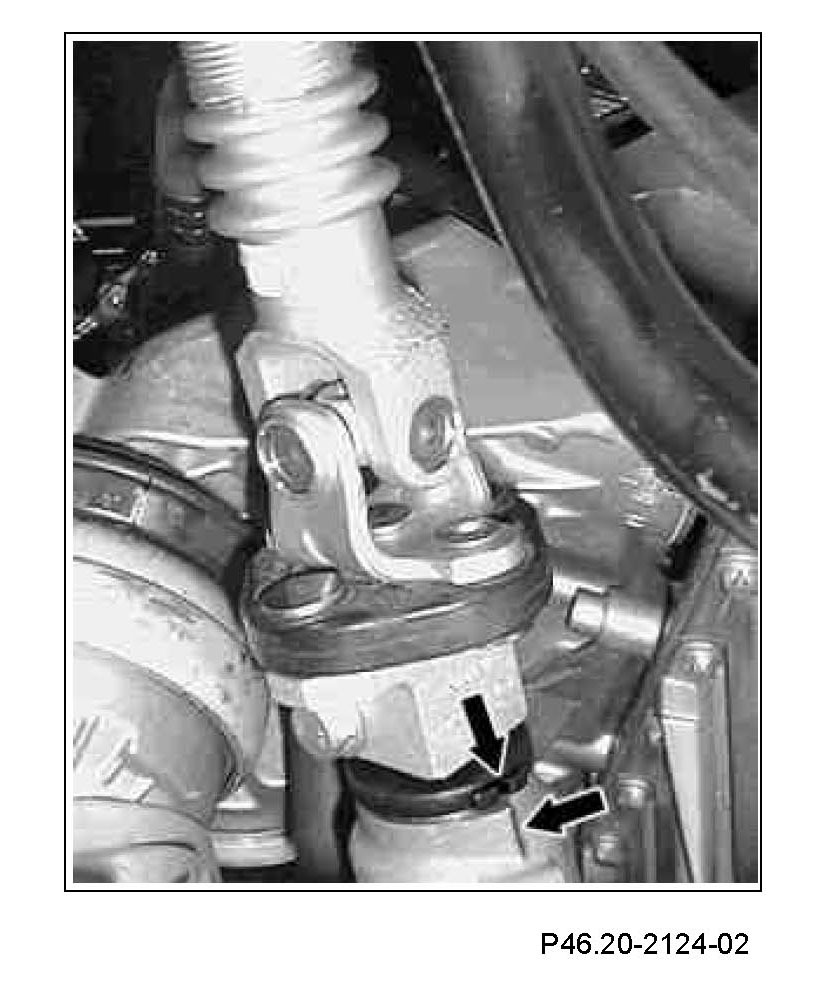

Turn the rack-and-pinion steering until the marking on the dust cap of the input shaft matches the marking on the control valve housing (arrow).
2 Mount steering coupling.
