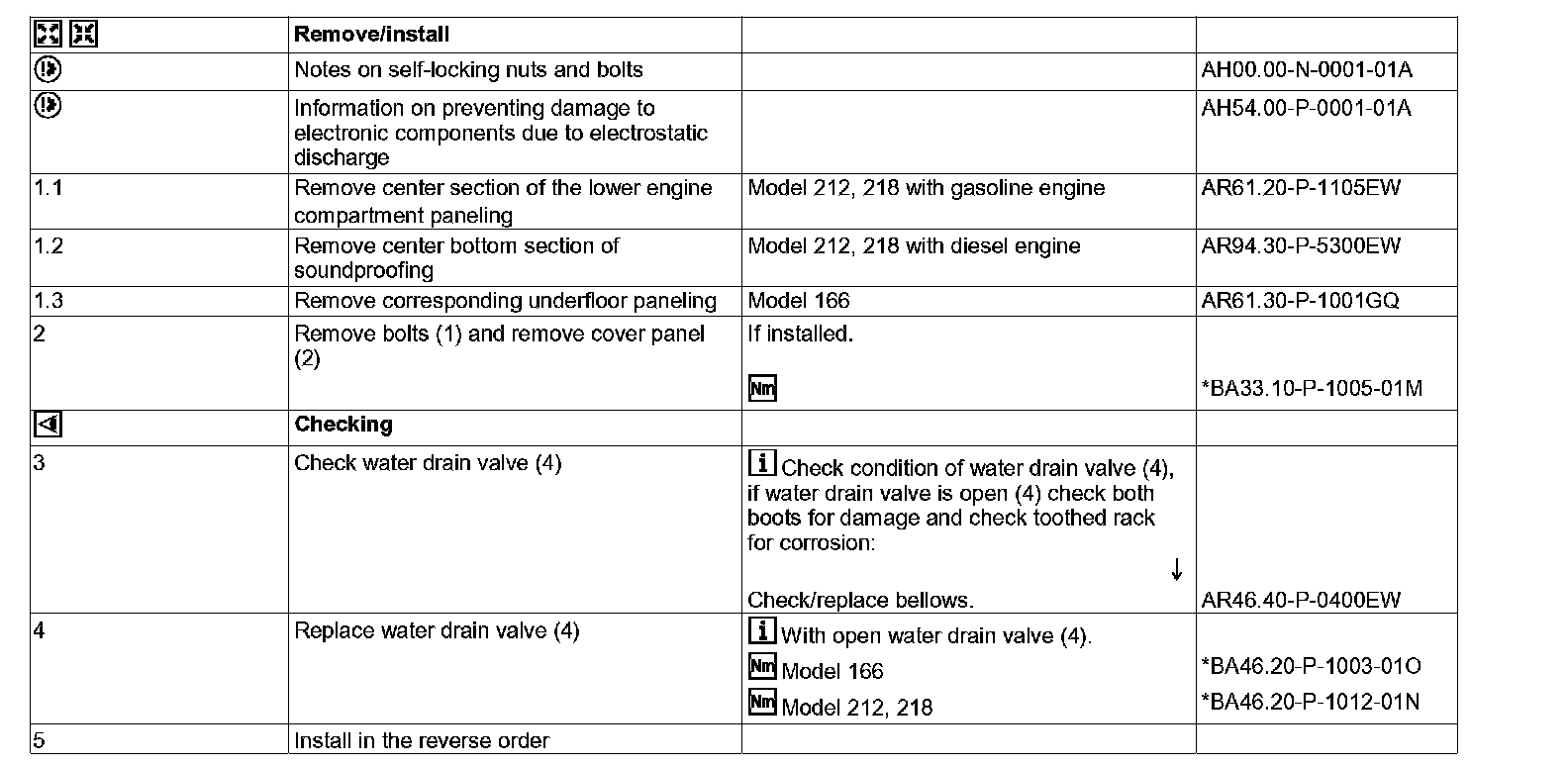

AR46.20-P-0005EW Check Water Drain Valve In Steering Gear, Reinstall

AR46.20-P-0005EW Check Water Drain Valve in Steering Gear, Reinstall
- MODEL 212 with electric power steering (ES)
- MODEL 166, 218





1 Screw
2 Cover panel
3 Steering gear
4 Water drain valve








Left figure:

Water drain valve (4) closed.

Right figure:

Water drain valve (4) open.
