Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Tilt Wheel Motor >> Service and Repair >> AR46.10-P-0626EW Removing/Installing Drive Unit and Motor For Steering Column Adjustment

AR46.10-P-0626EW Removing/Installing Drive Unit and Motor For Steering Column Adjustment



AR46.10-P-0626EW Removing/installing drive unit and motor for steering column adjustment
- with CODE (275) Electrically adjustable front seats memory package

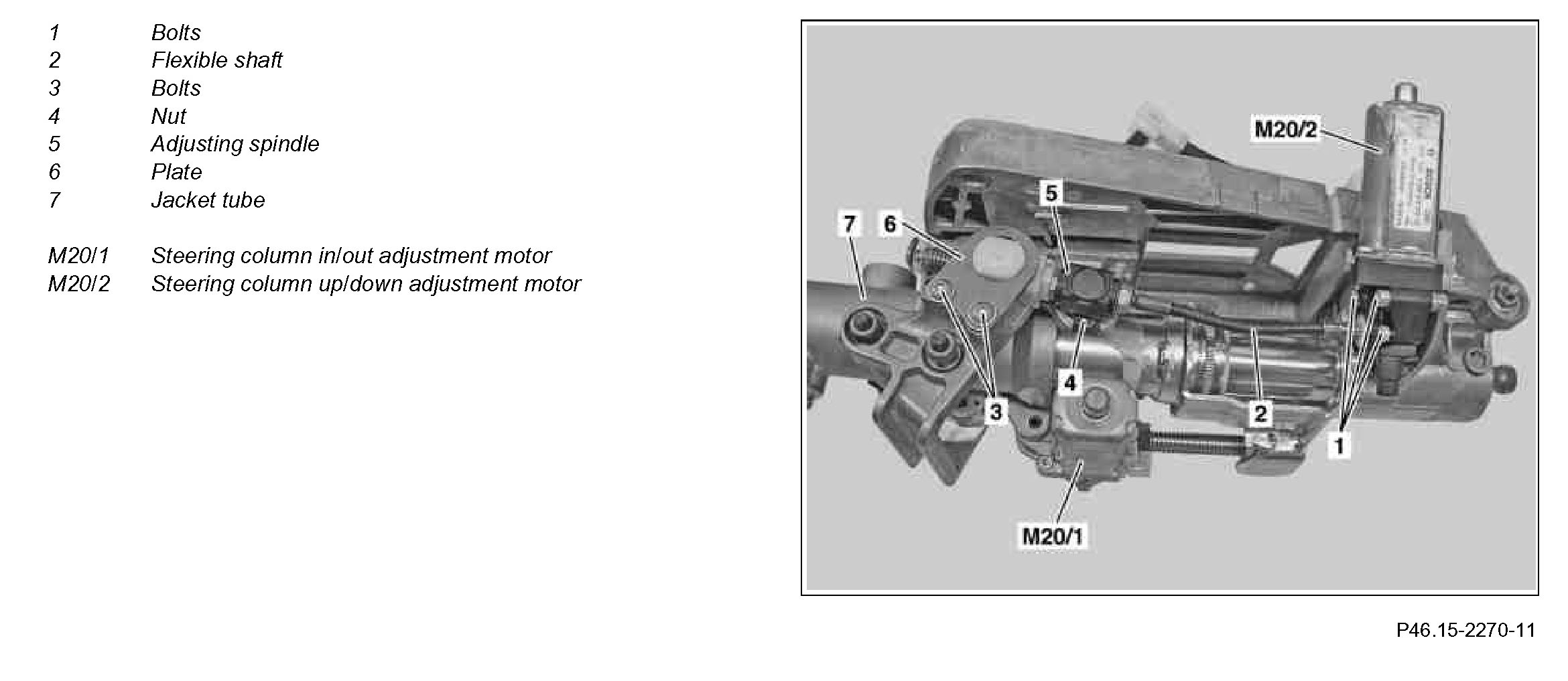

Component Identification:

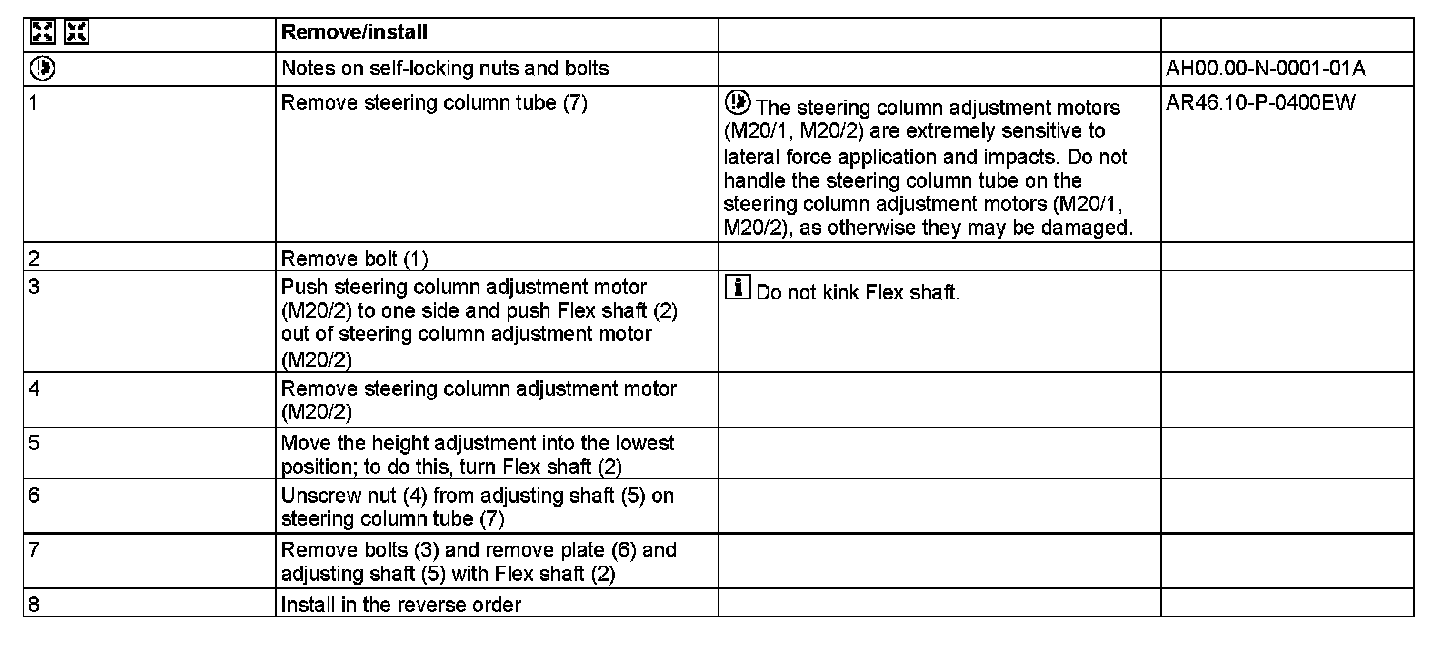

Steps 1-8:
