AR46.10-P-0626CW Remove/Install Drive Unit and Motor For Steering Column Adjustment



AR46.10-P-0626CW Removing/installing drive unit and motor for steering column adjustment

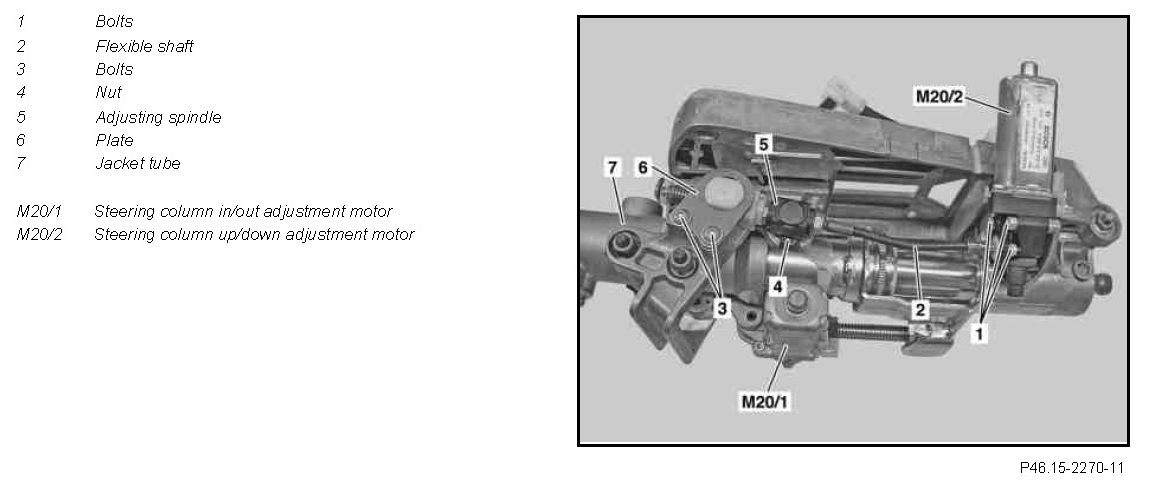

Component Identification:

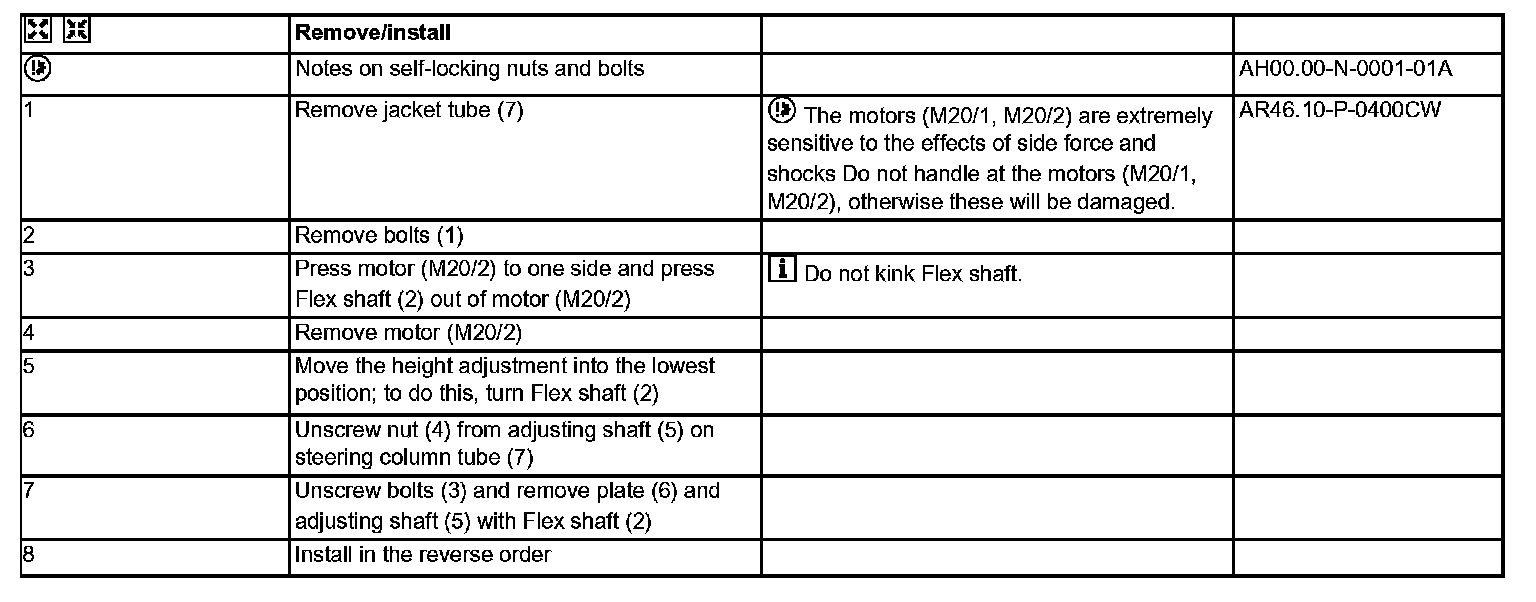

Remove/install Steps:
