AR46.30-P-0100EW Checking Oil Pressure of Power Steering Pump

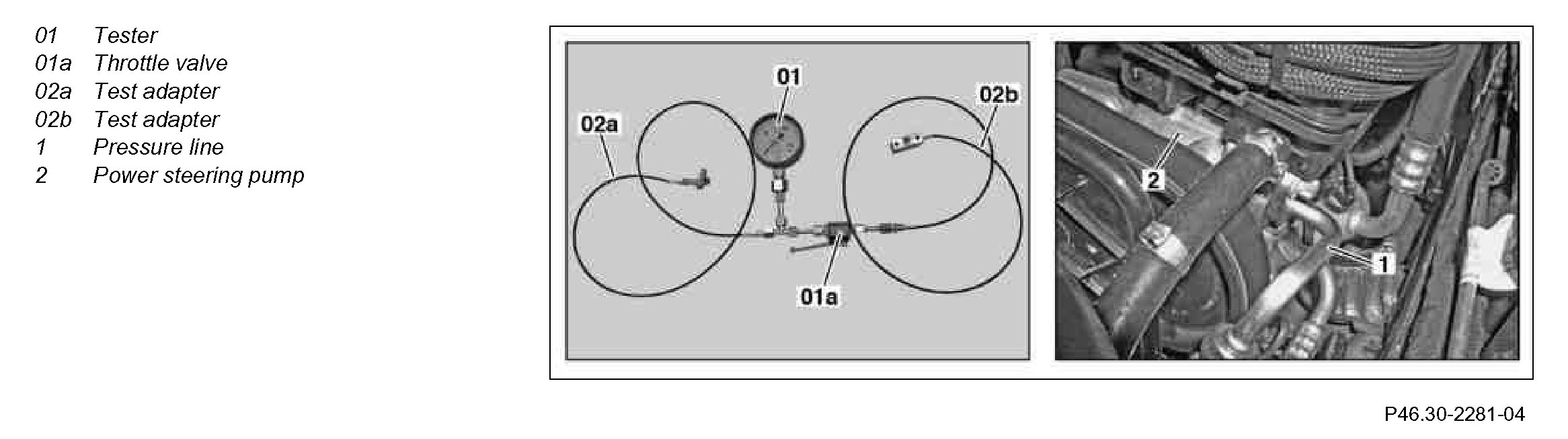

Component Identification:

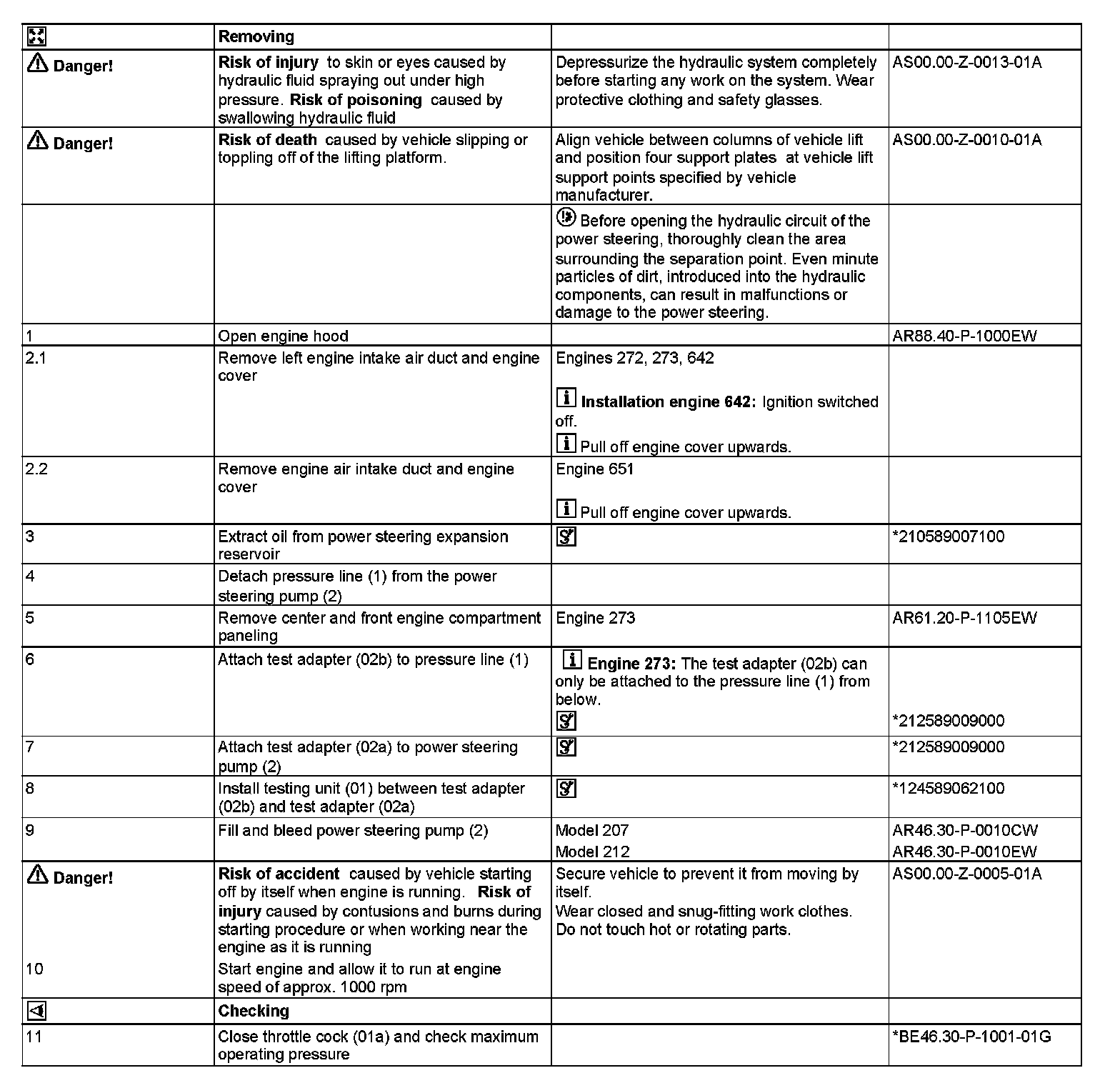

Steps 1-11:

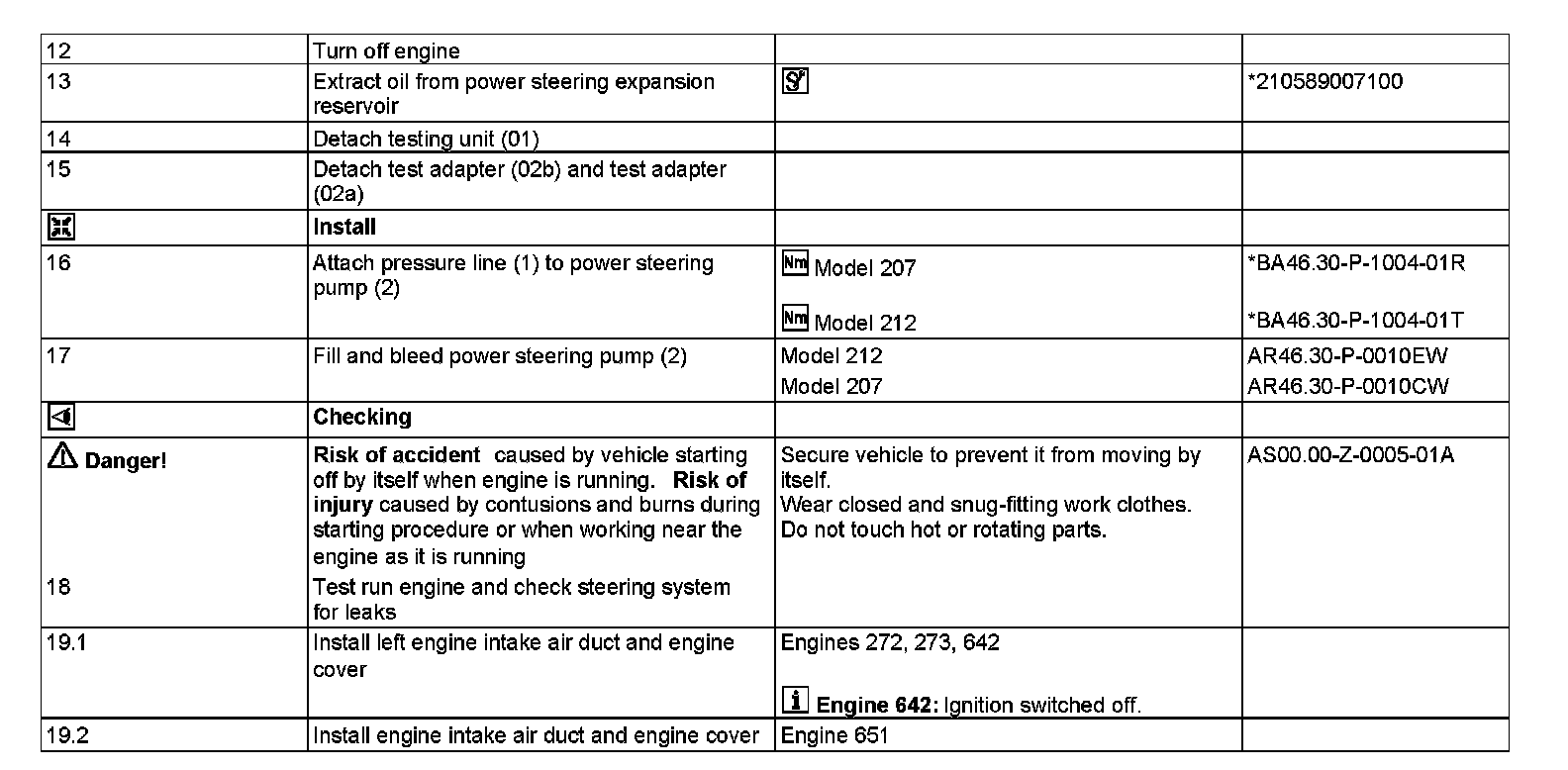

Steps 12-19.2:

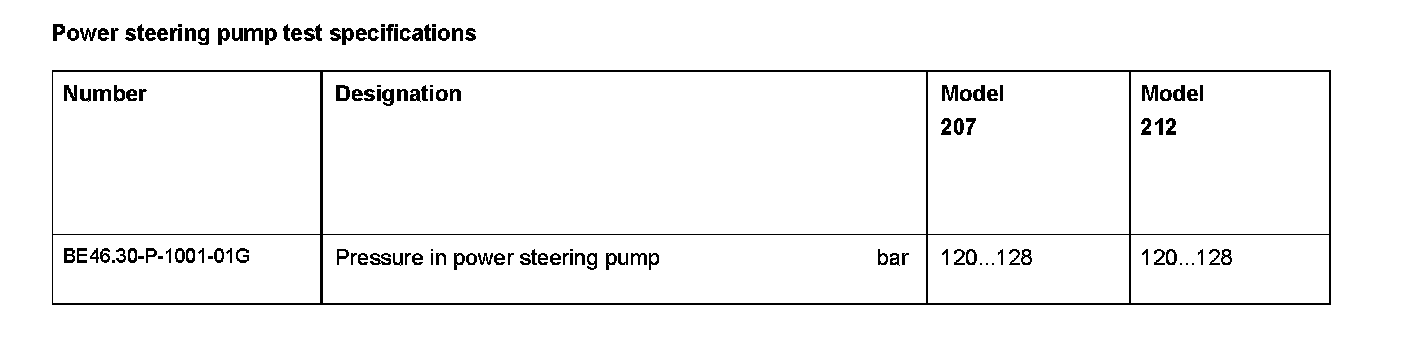

Power steering pump test specifications:

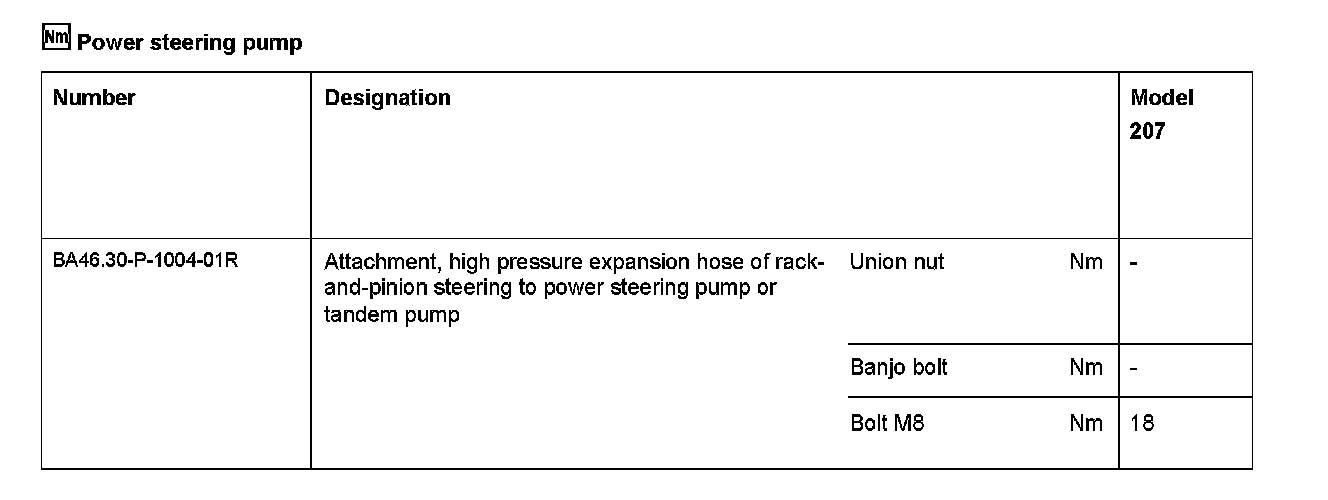

Power steering pump:

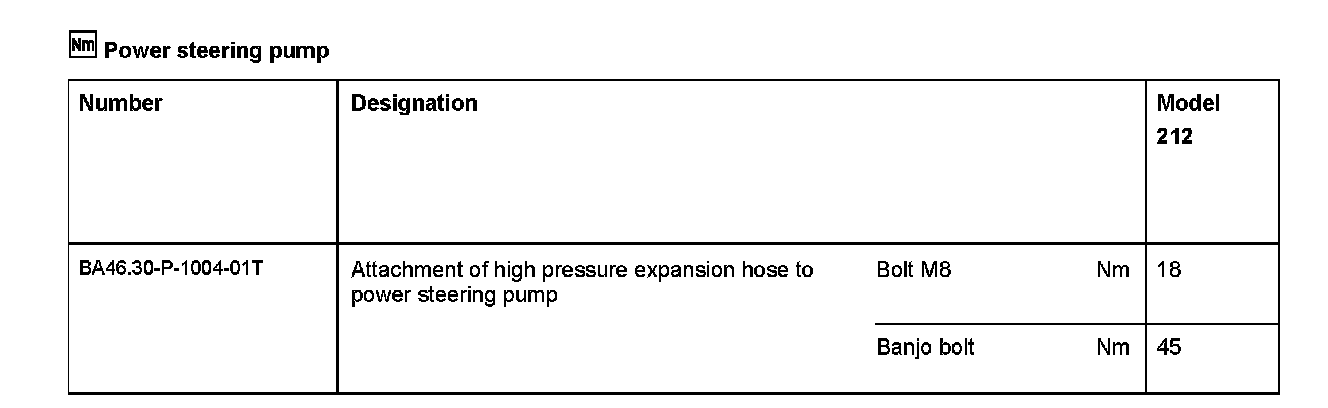

Power steering pump:

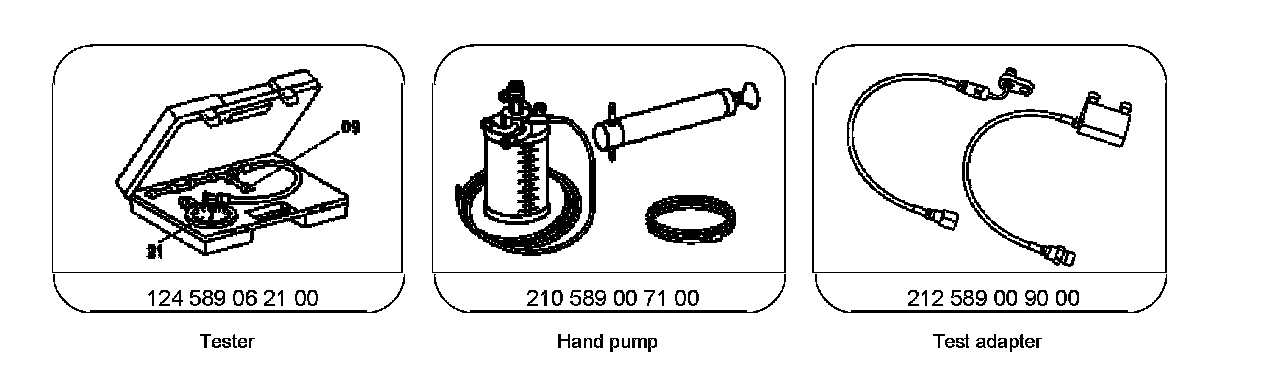

Special Tools:
