Removal and Replacement

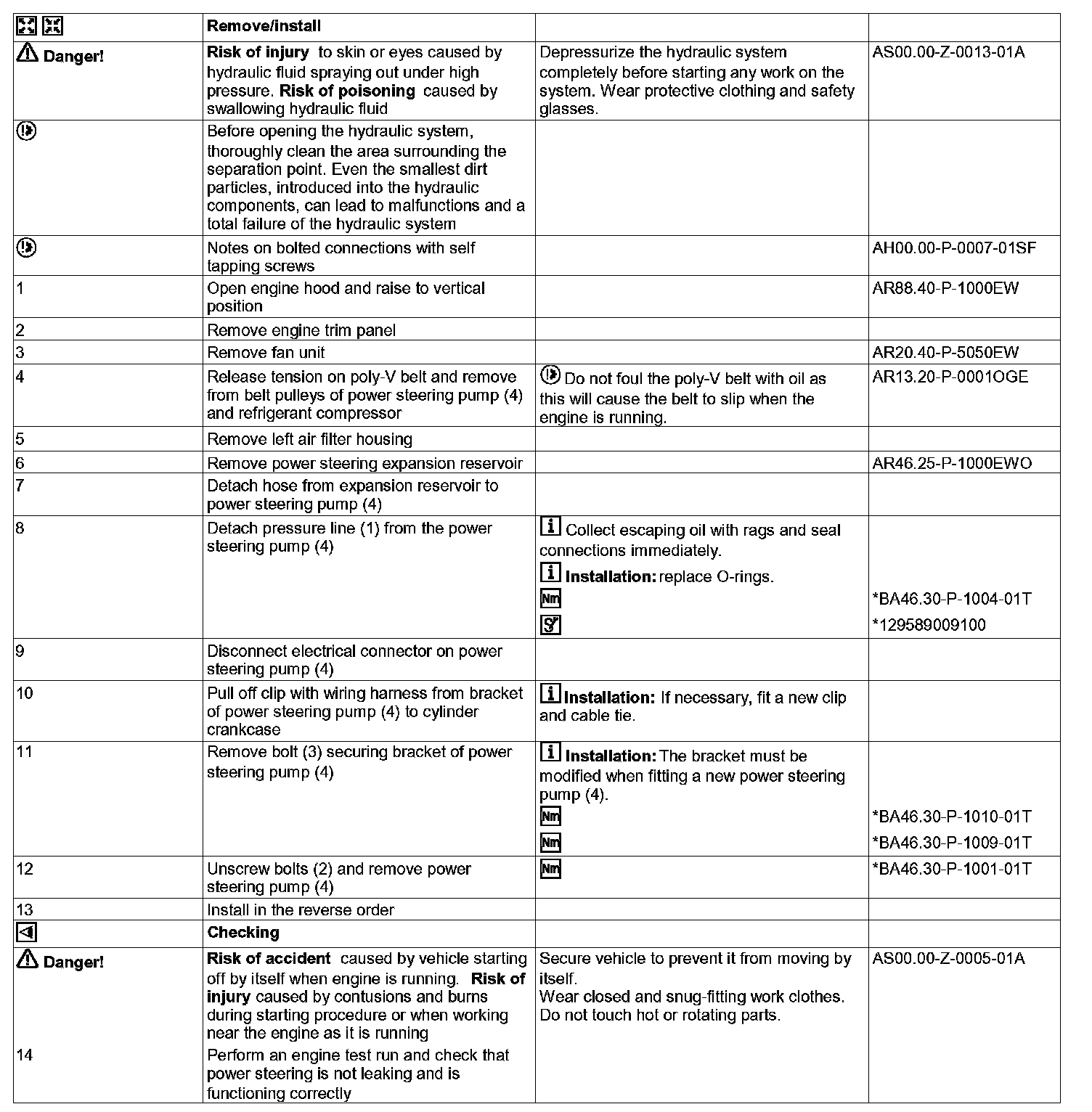

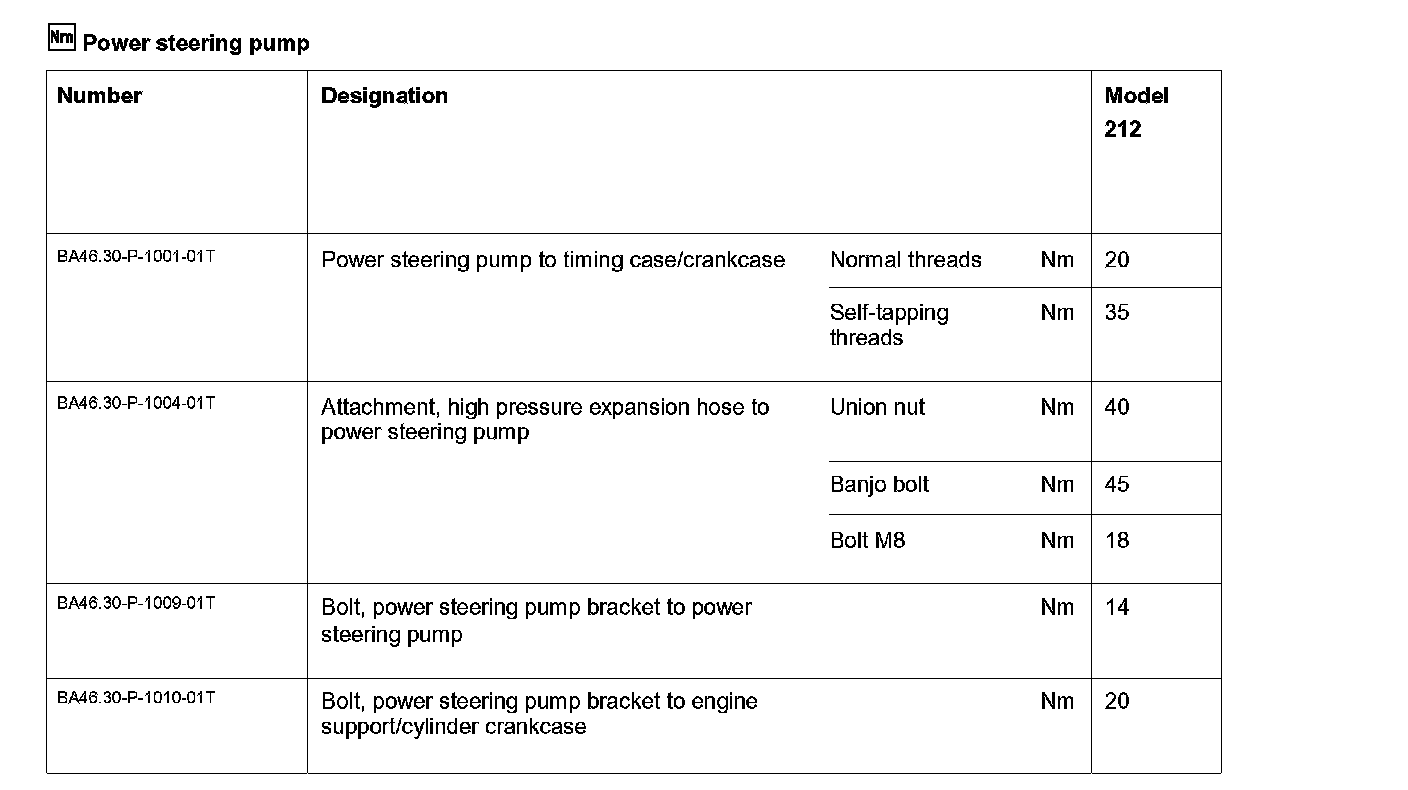

AR46.30-P-0500EWO Remove/Install Power Steering Pump
- MODEL 212 with ENGINE 642

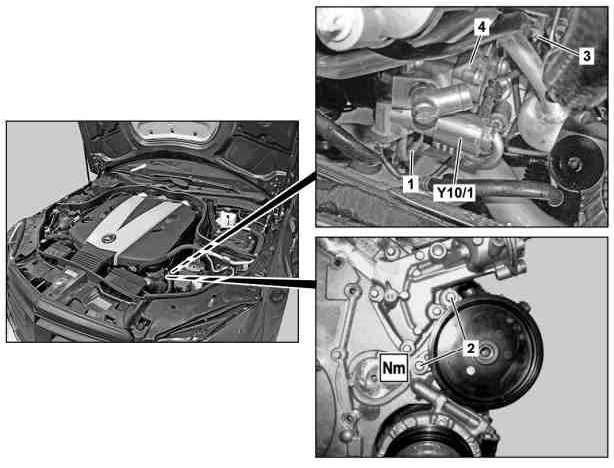

1 Pressure line
2 Bolts
3 Screw
4 Power steering pump












129 589 00 91 00
Set of stop plugs
