AR46.30-P-0010EW Fill
power steering pump
and bleed

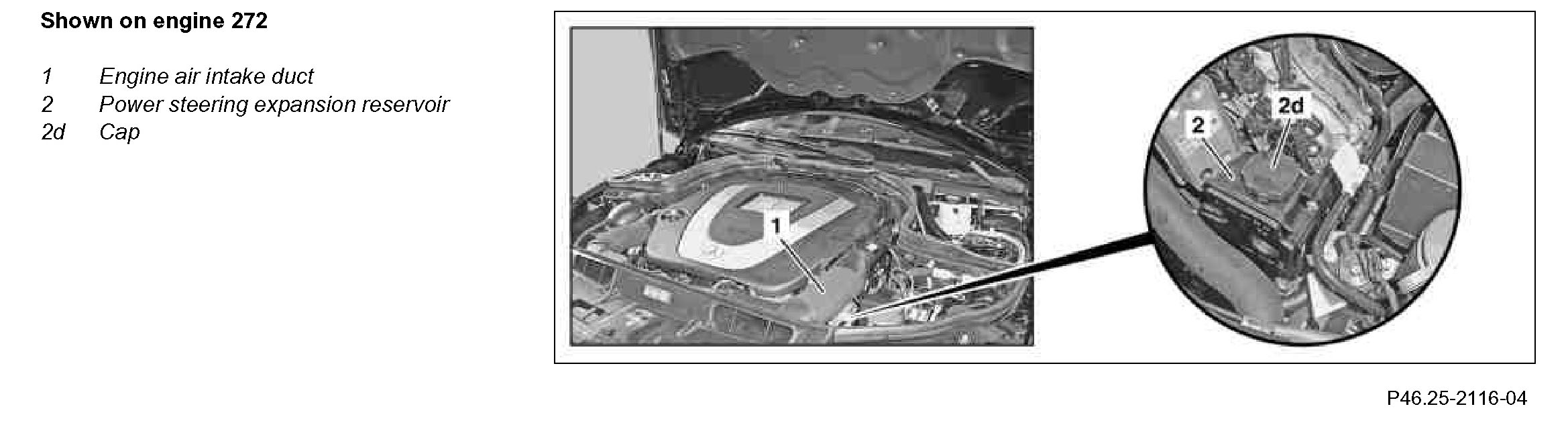

Component Identification:
Shown on engine 272

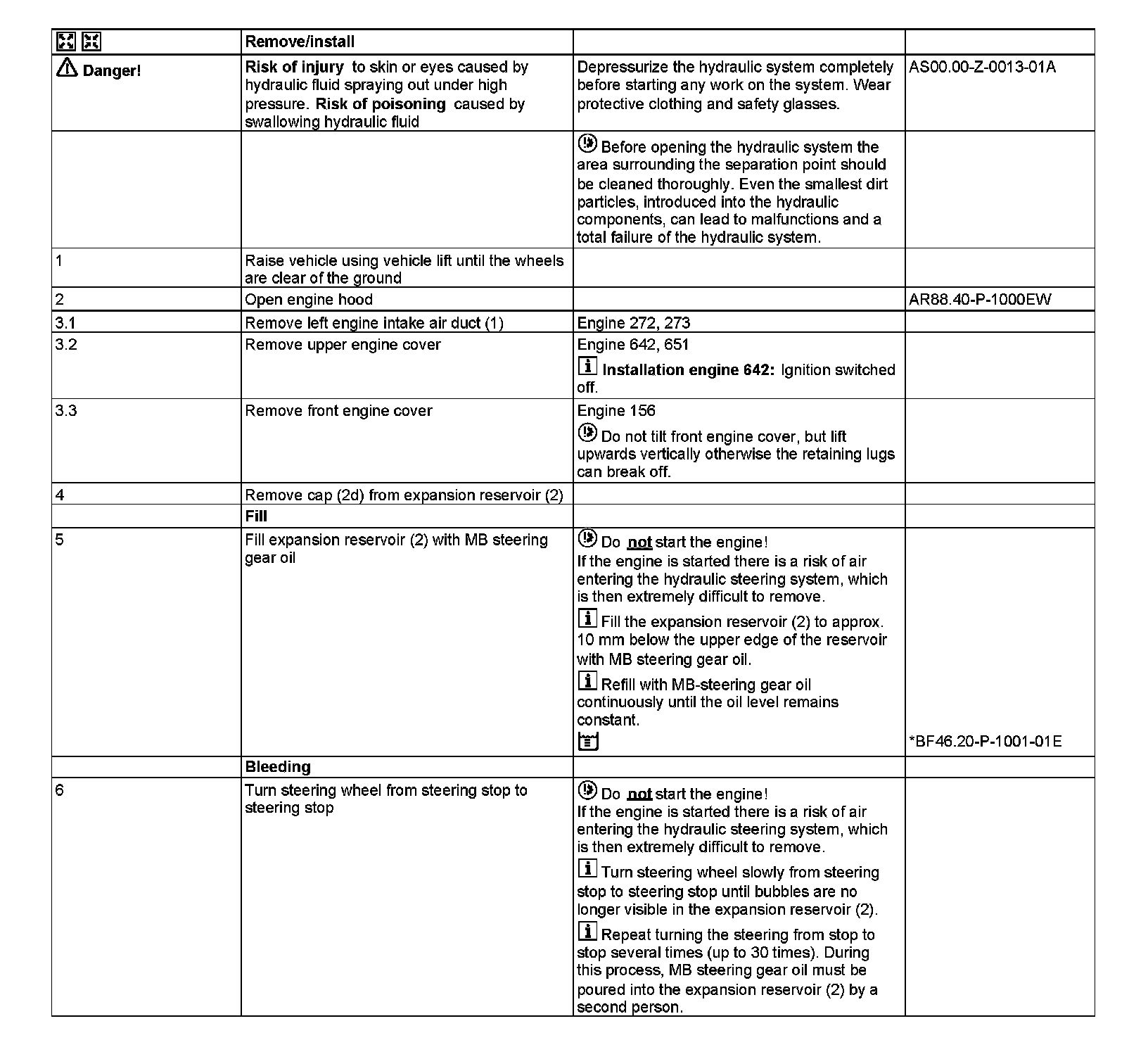

Steps 1-6:
Steps 7-11:

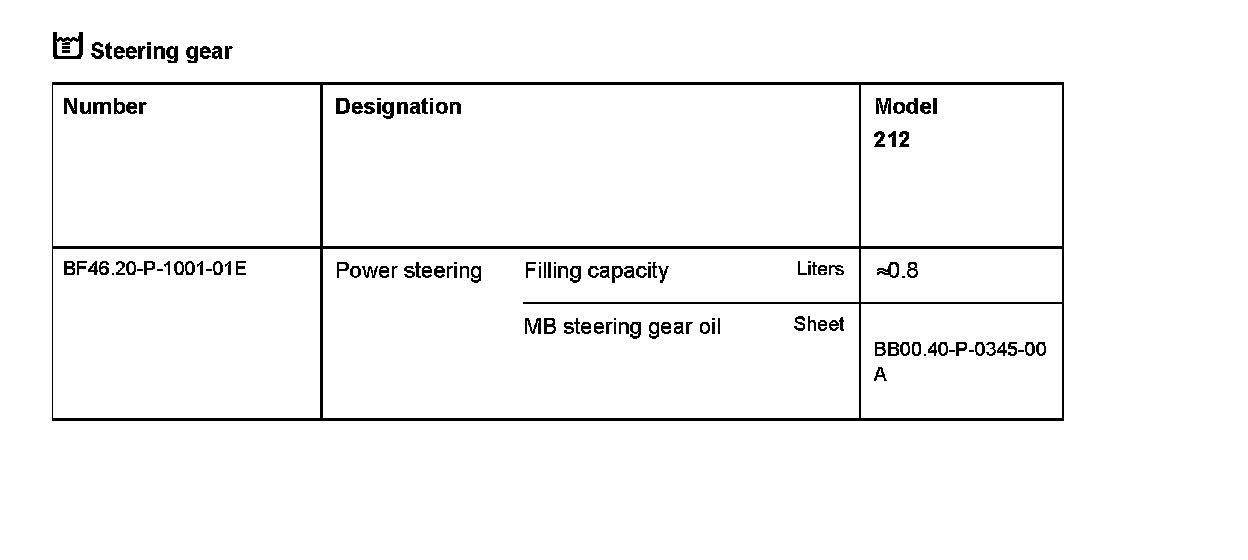

Steering gear:
