AR46.25-P-3015EW Remove/Install Hydraulic Line of Power Steering



AR46.25-P-3015EW Remove/install hydraulic line of power steering
- power steering pressure line

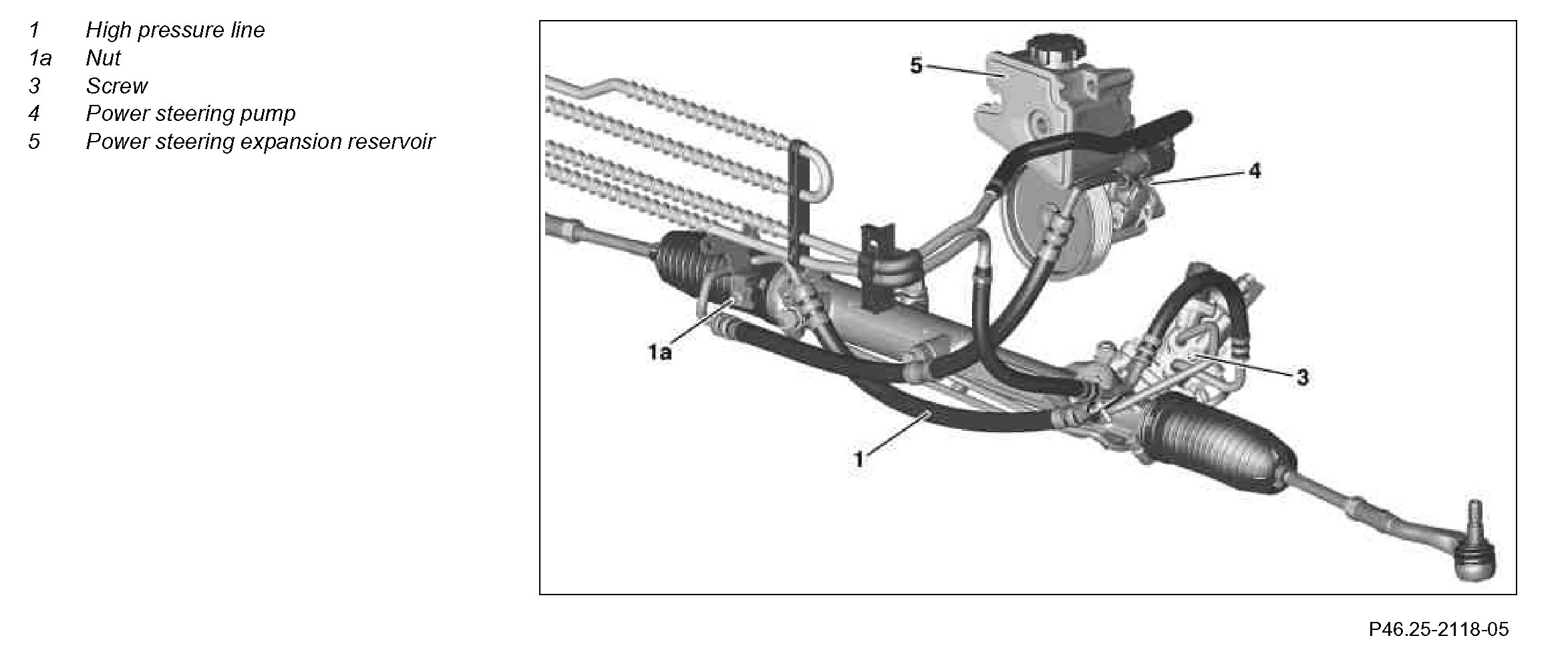

Component Identification:

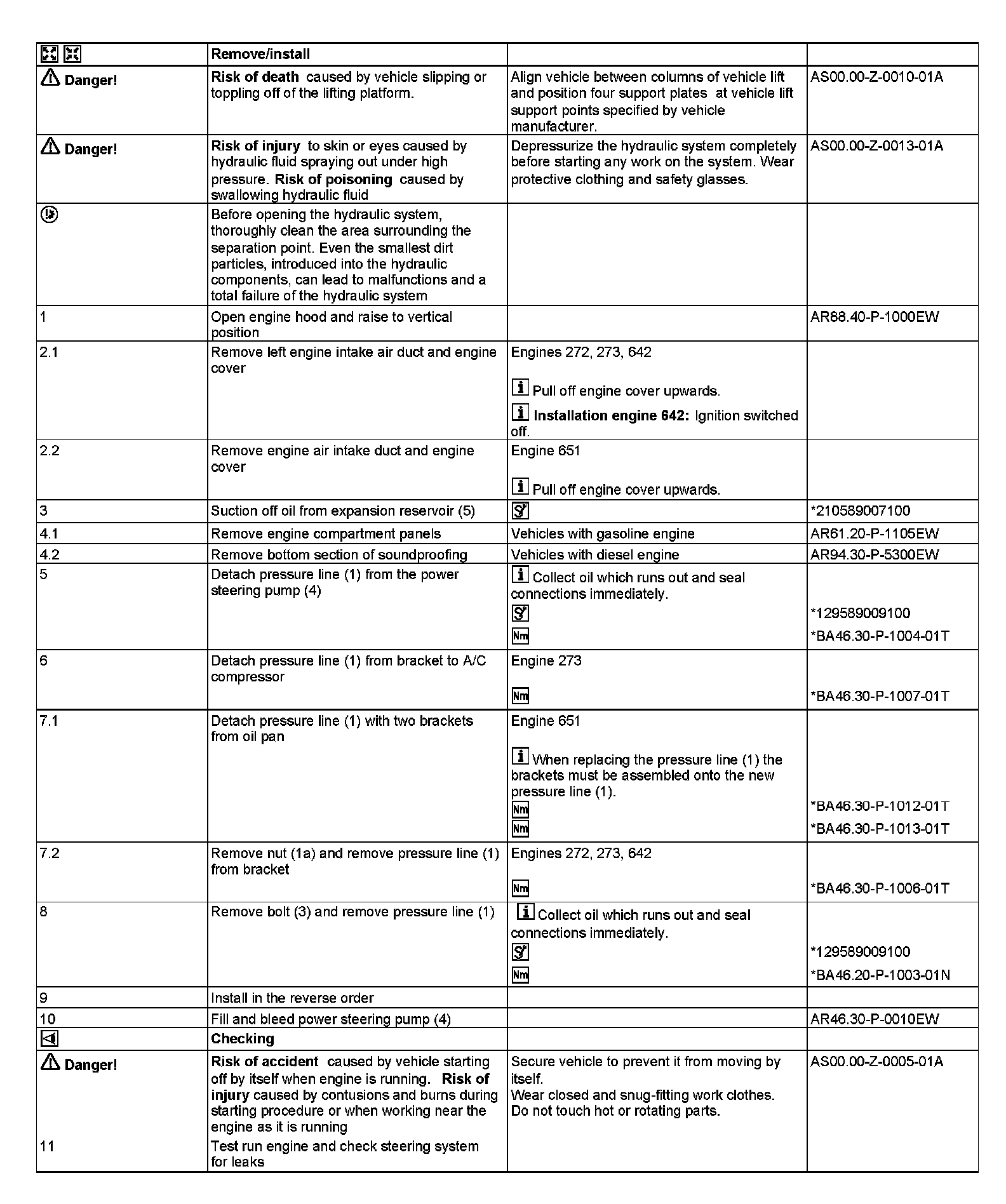

Steps 1-11:

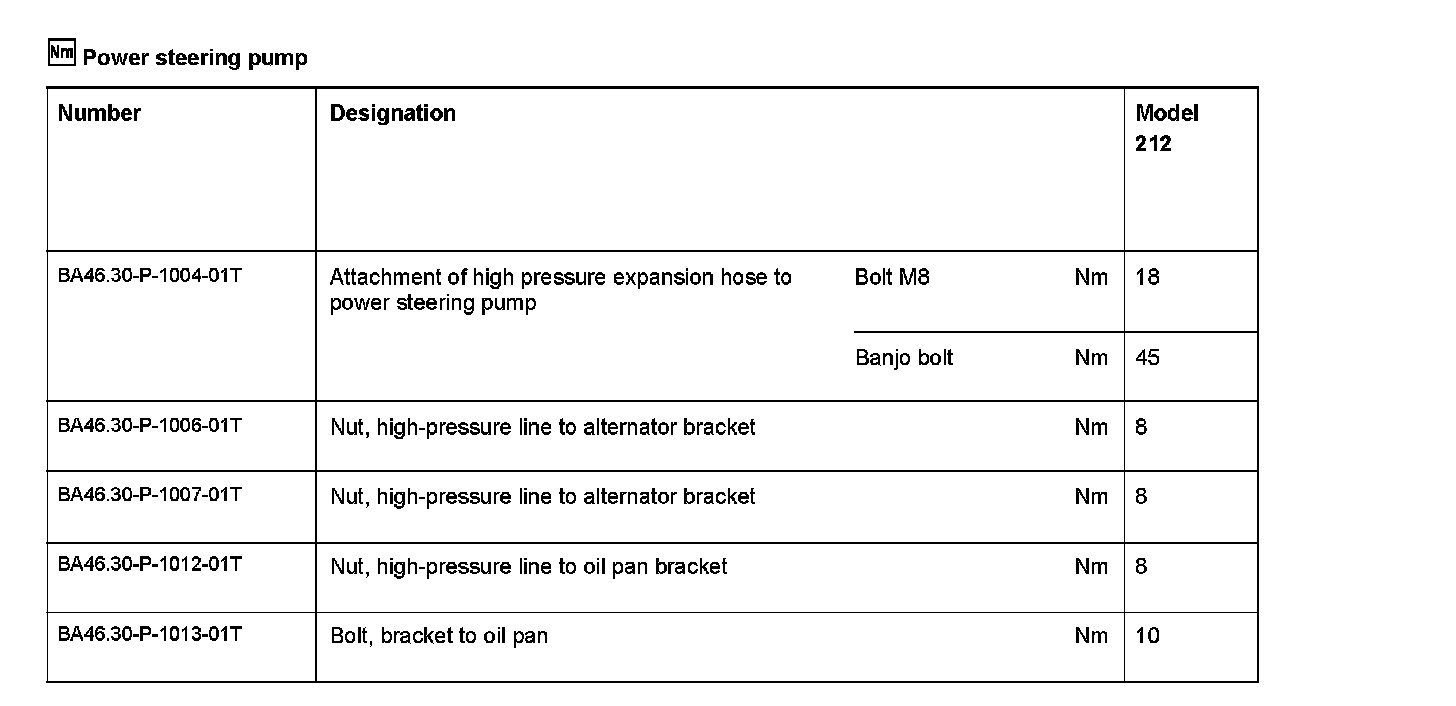

Power steering pump:

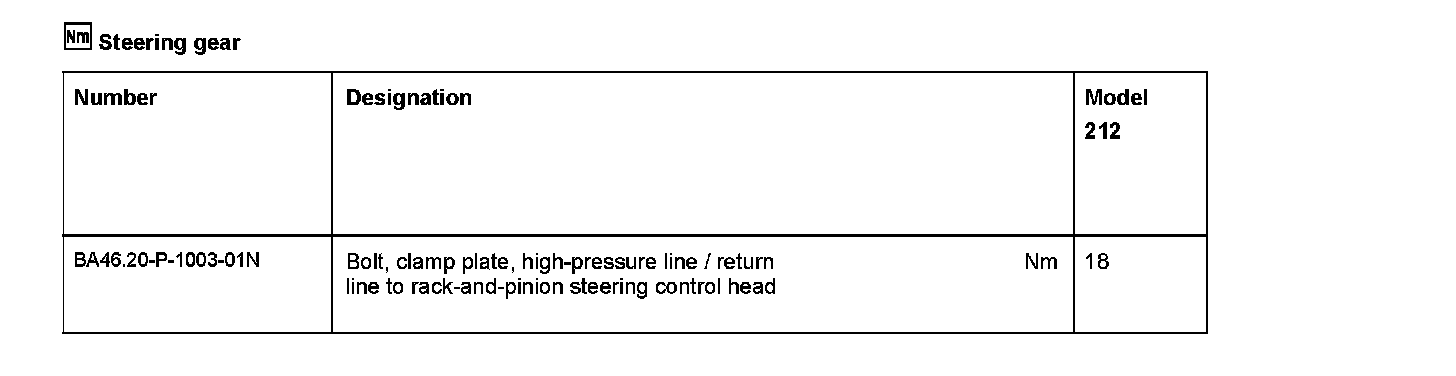

Steering gear:

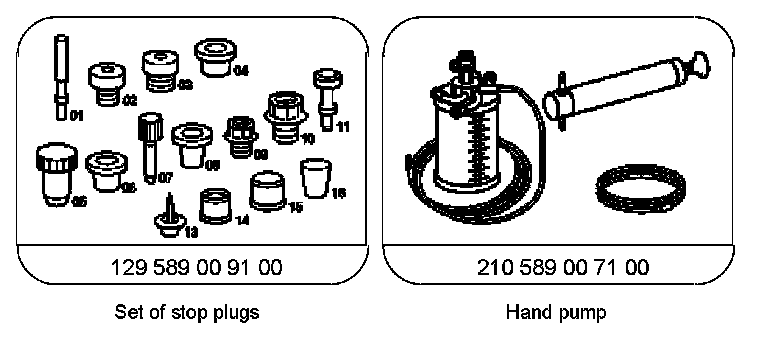

Special Tools:
