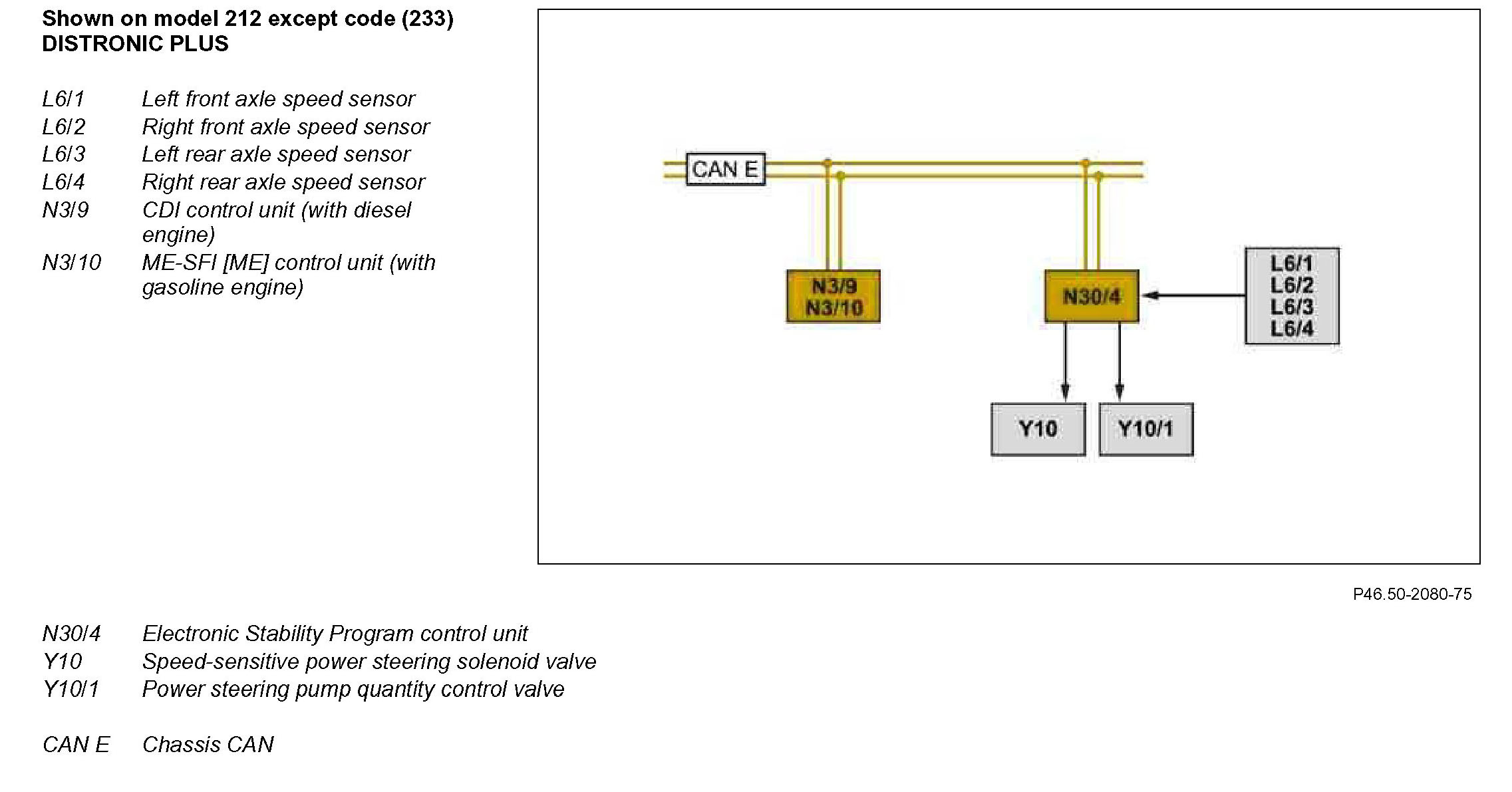

GF46.50-P-0001-02FL Speed-Sensitive Power Steering (SPS (PML)), Block Diagram

GF46.50-P-0001-02FL Speed-sensitive power steering (SPS [PML]), block diagram
- with CODE (213) Speed-sensitive power steering

Component Identification:

Instead of the Electronic Stability Program control unit the Premium Electronic Stability Program control unit (N30/7) (with code (233) DISTRONIC PLUS) can be installed.
