AR40.20-P-0301EW Check Vehicle Level at Front and Rear Axle With Electronic Inclinometer, Adjust If Necessary

AR40.20-P-0301EW Check Vehicle Level At Front And Rear Axle With Electronic Inclinometer, Adjust If Necessary
MODEL 212, 218

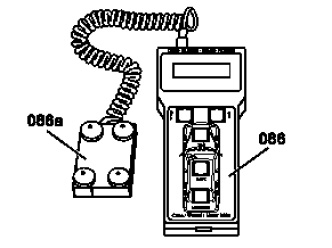

086 Inclinometer
086a Measuring sensor

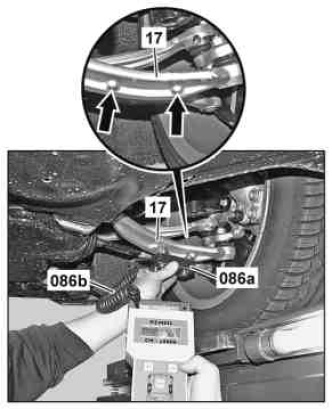

Shown: Measuring point 2 right front cross strut, model 204.0 without 4MATIC

086a Measuring sensor
086b Measuring sensor connecting cable
17 Cross strut

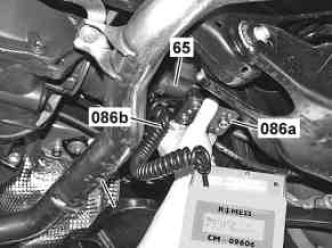

Shown: Measuring point 4 right rear axle shaft, model 204.0 without 4MATIC

086a Measuring sensor
086b Measuring sensor connecting cable
65 Rear axle shaft
