AR40.20-P-0263EW Adjust Camber and Caster at the Front Axle

AR40.20-P-0263EW Adjust Camber And Caster At The Front Axle

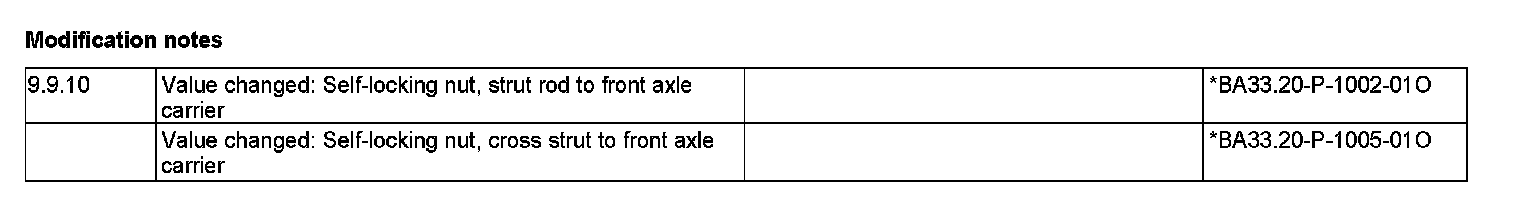

MODEL 212, 218

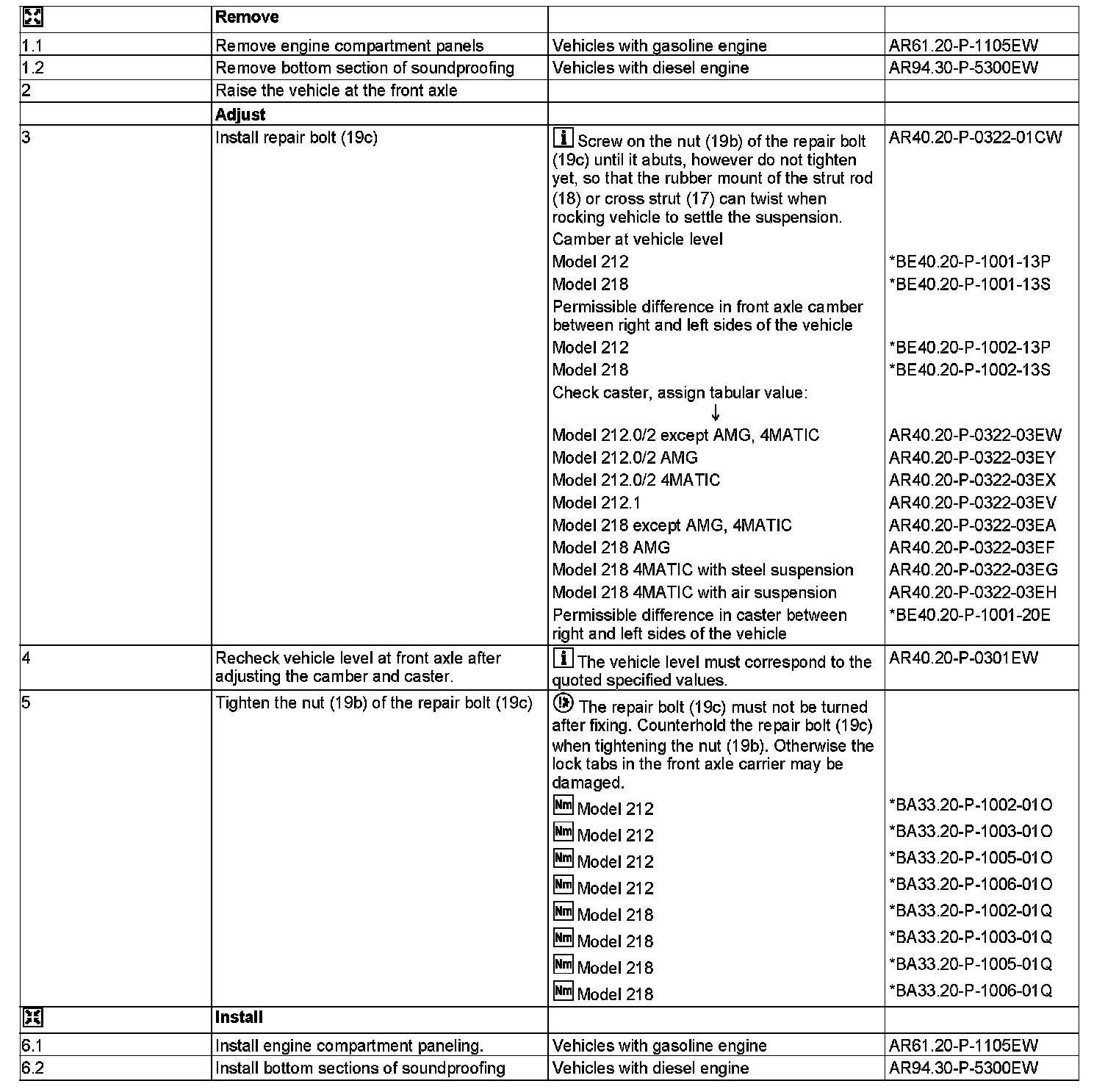

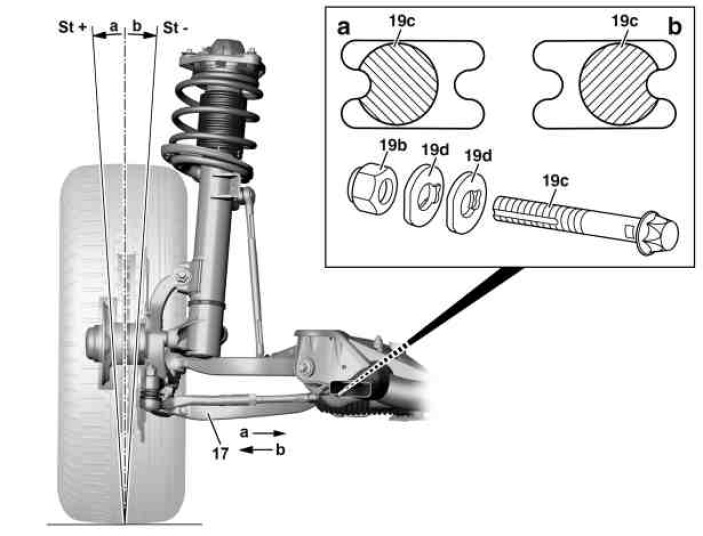

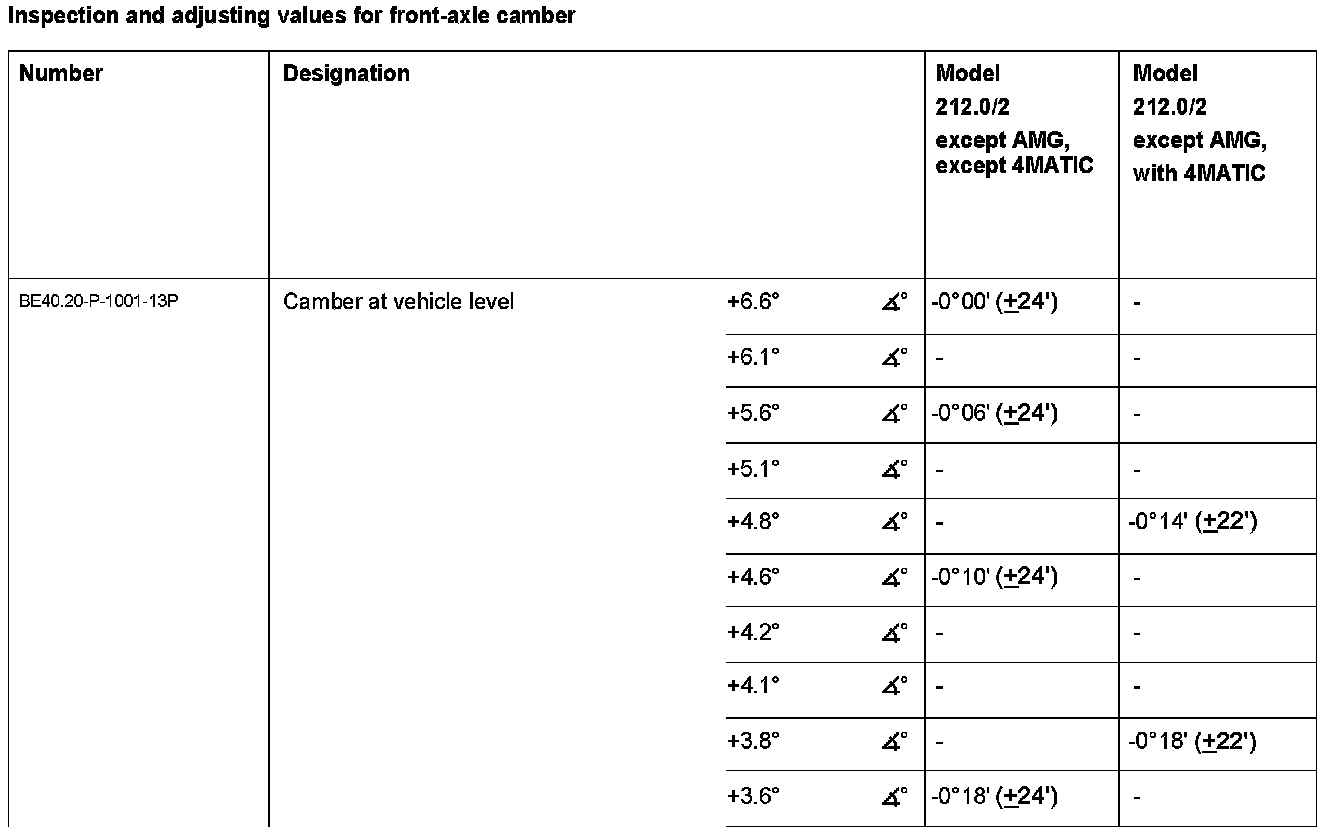

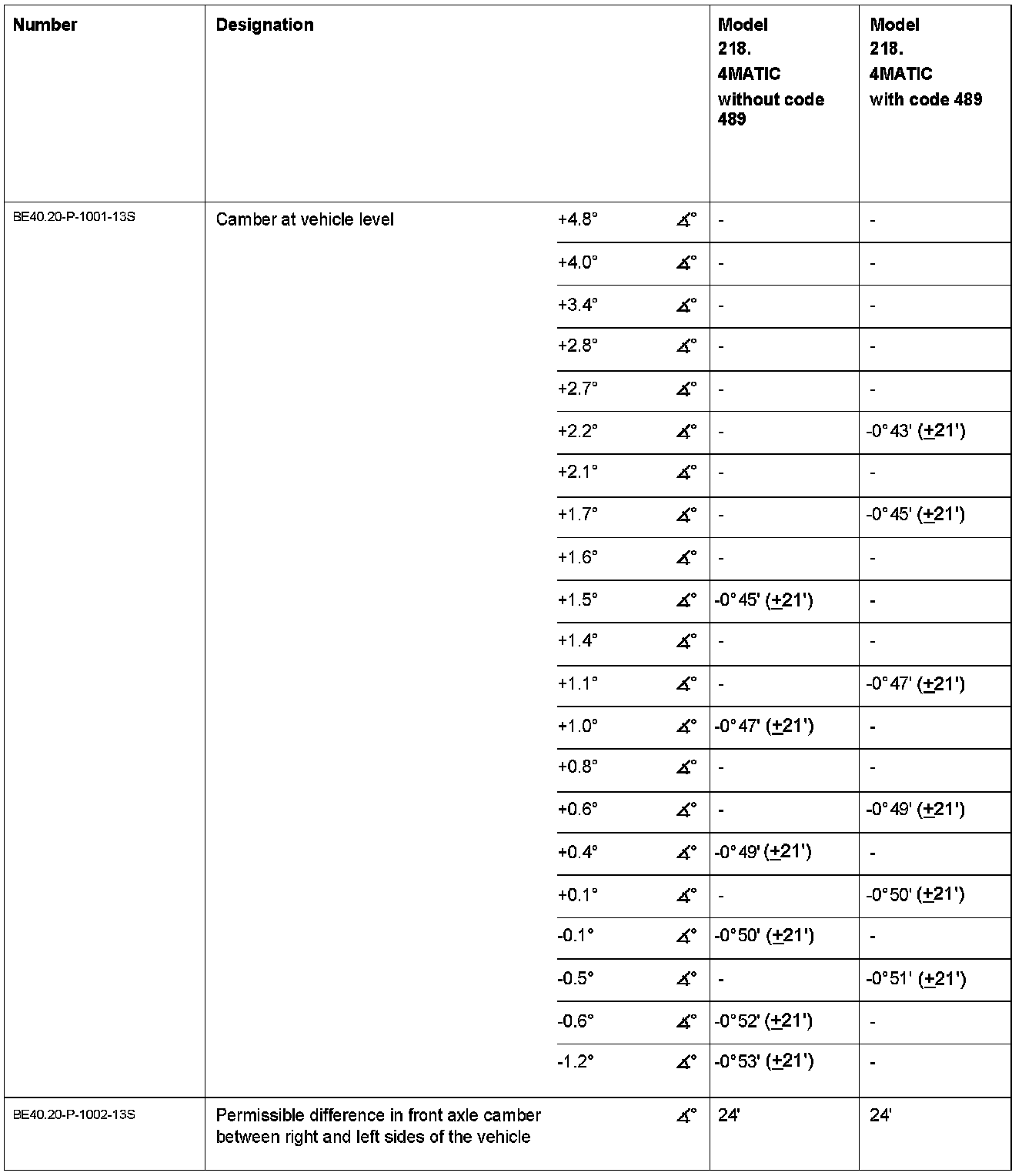

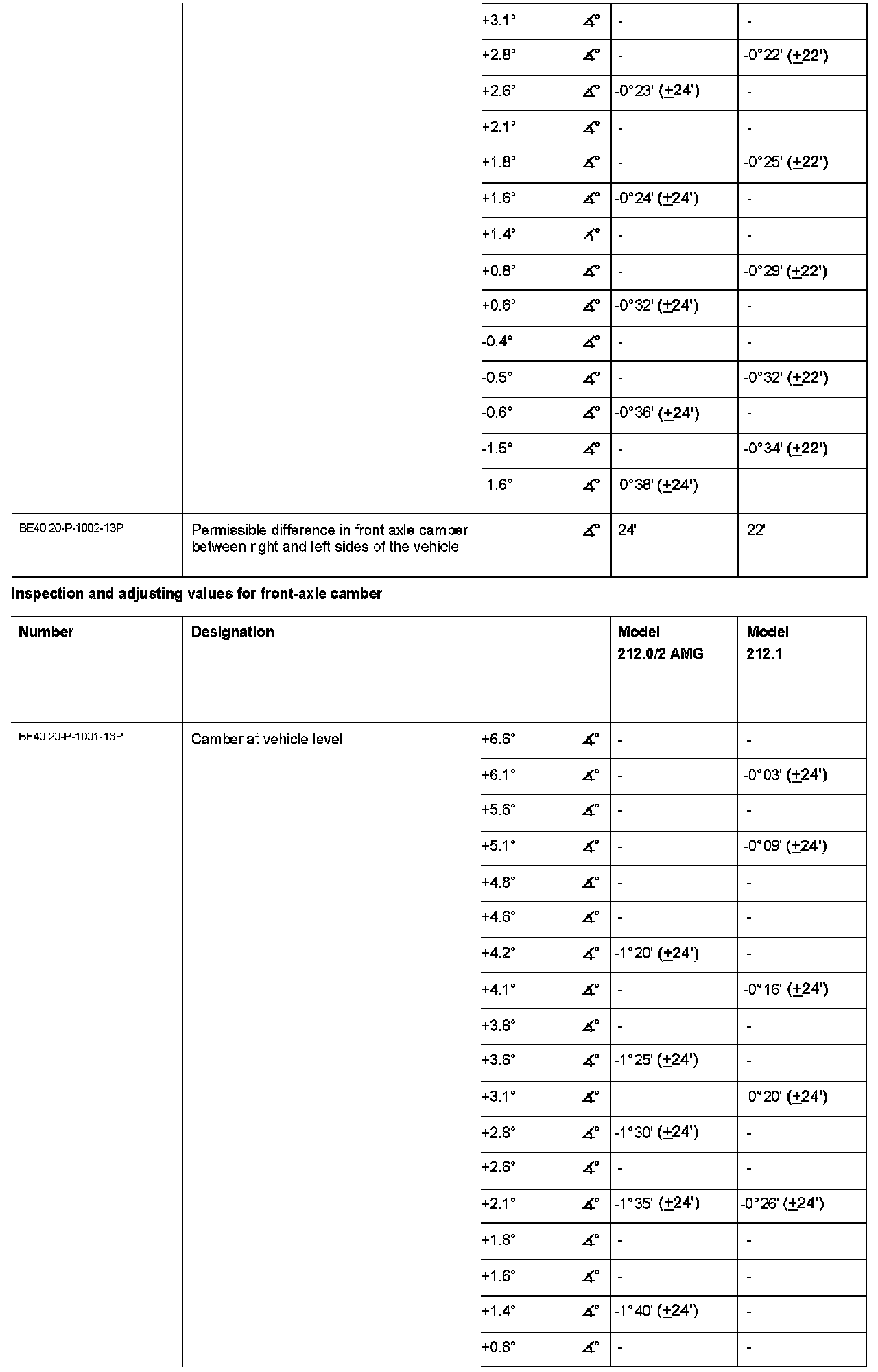

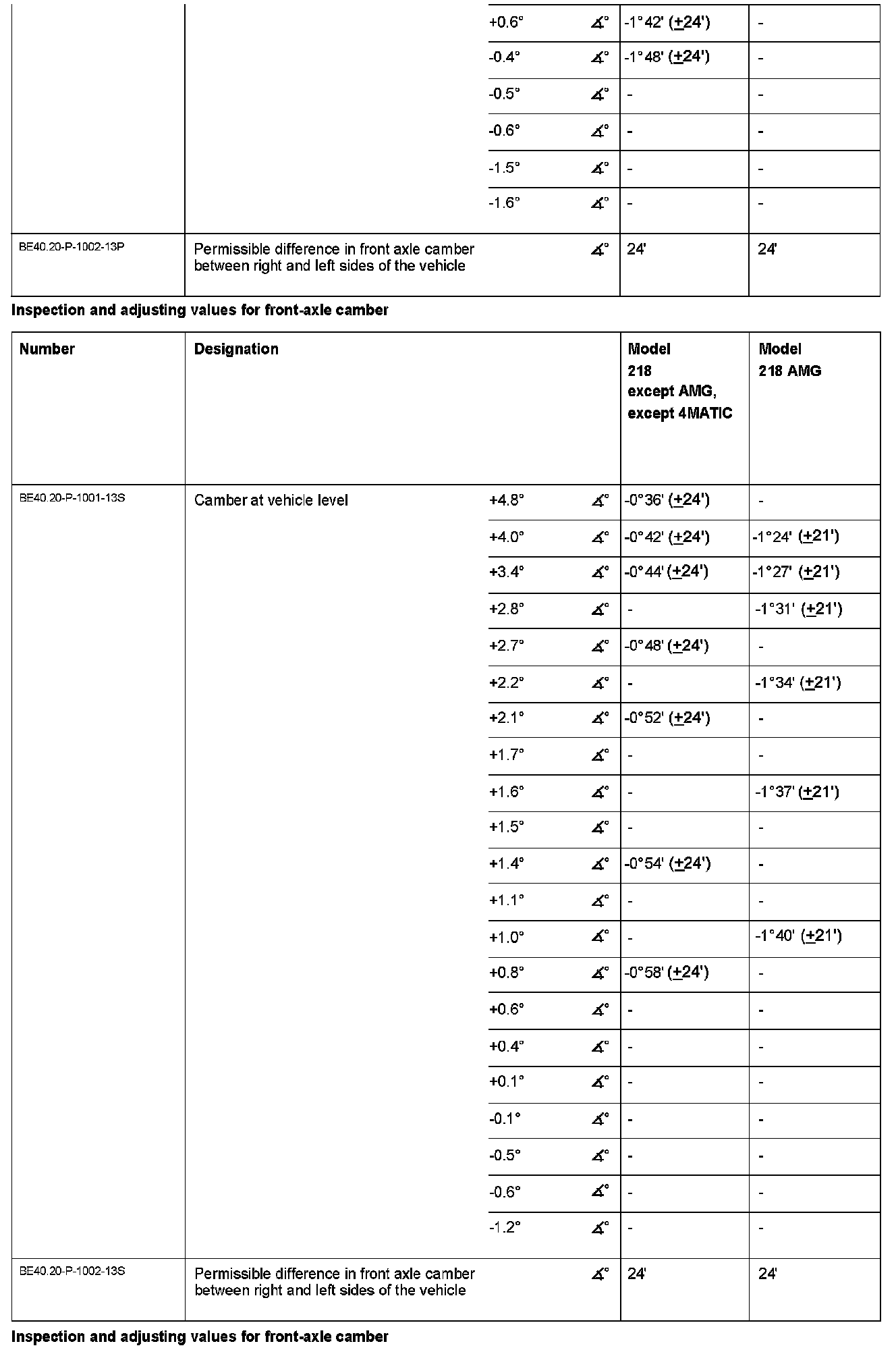

Camber, model 204.0 without 4MATIC shown

17 Cross strut

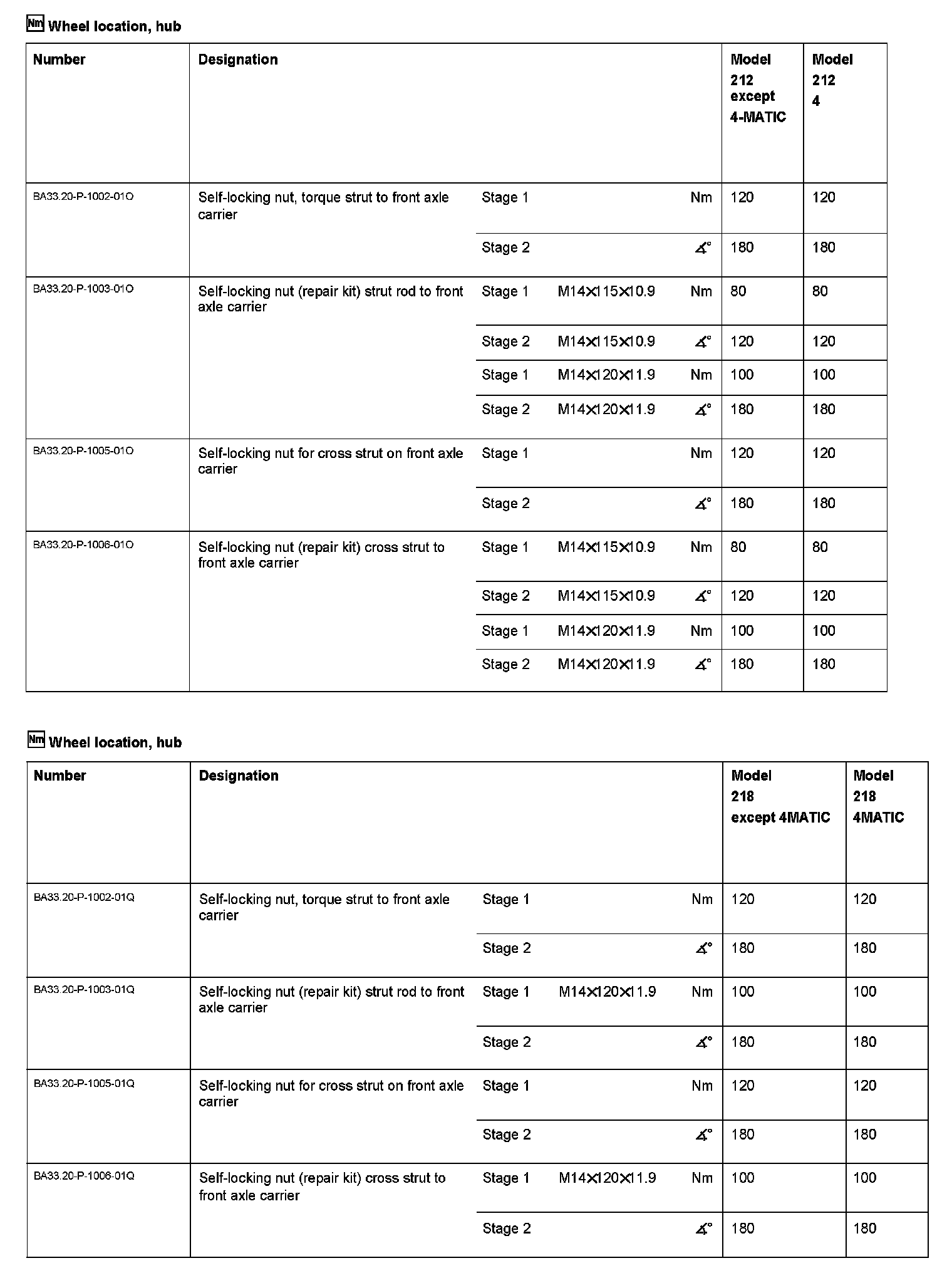

19b Nut
19c Repair bolt
19d Washers

St+ positive camber
St- negative camber

a Adjusting the cross strut towards the vehicle center causes a positive camber change
b Adjusting the cross strut towards the vehicle outside causes a negative camber change

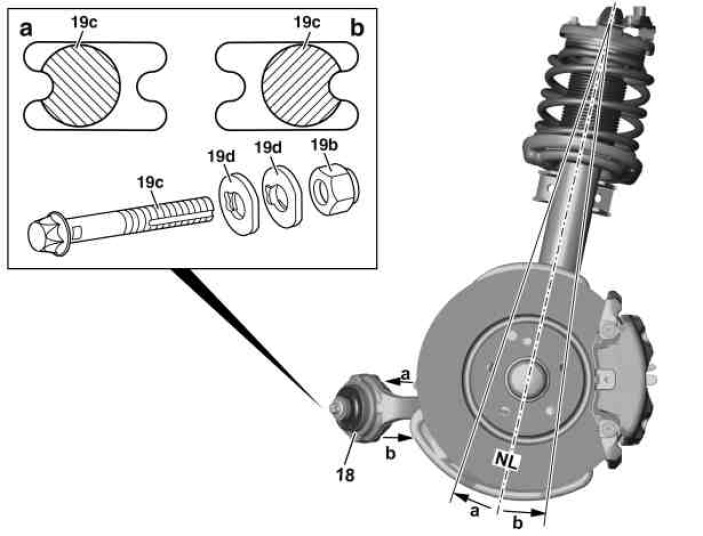

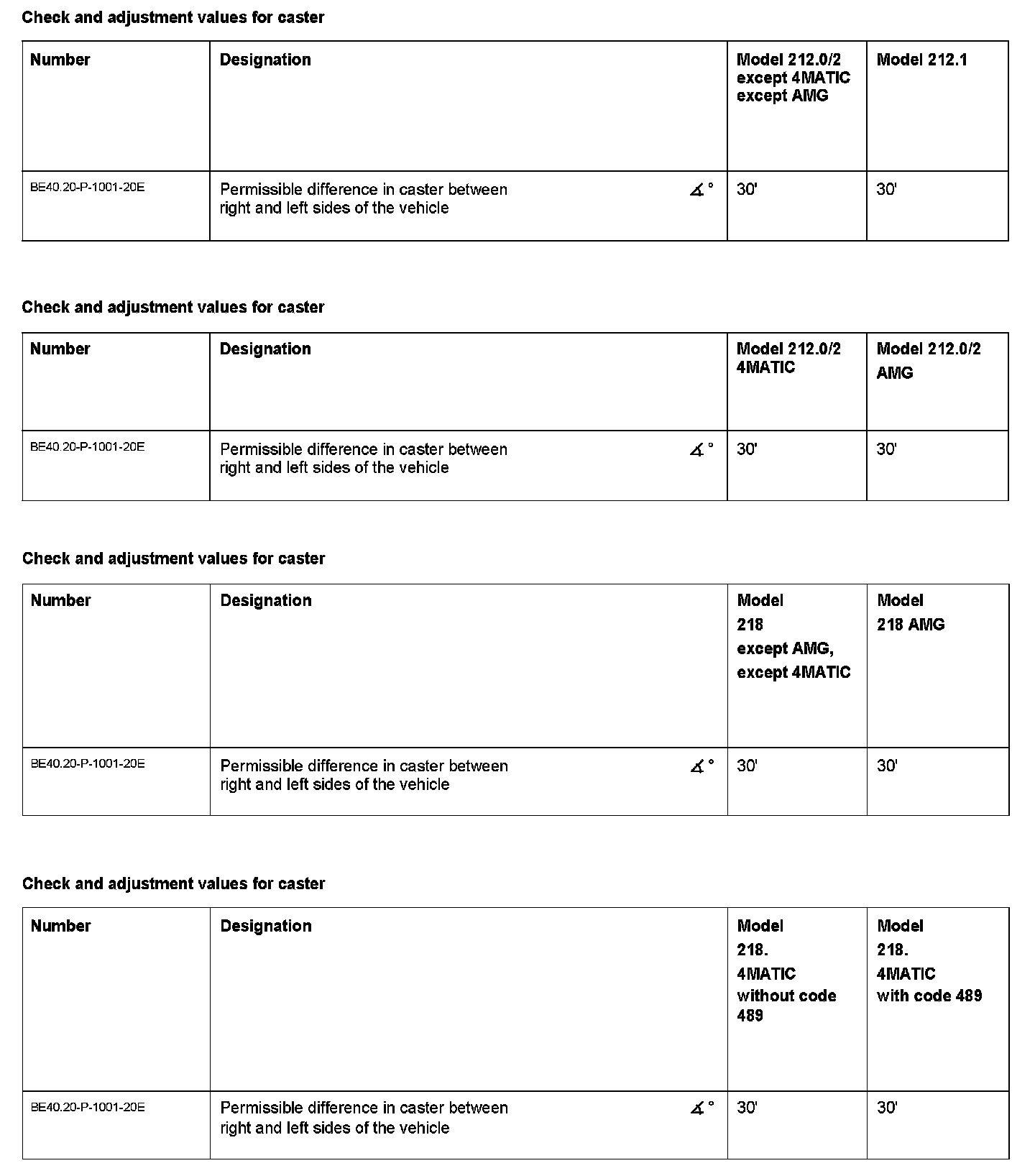

Caster, model 204.0 without 4MATIC shown

18 Torque strut
19b Nut
19c Repair bolt
19d Washers

NL Caster

a Adjusting the torque strut towards the center of the vehicle increases the caster:
b Adjusting the torque strut towards the outside of the vehicle reduces the caster:
