Starter Motor: Service and Repair

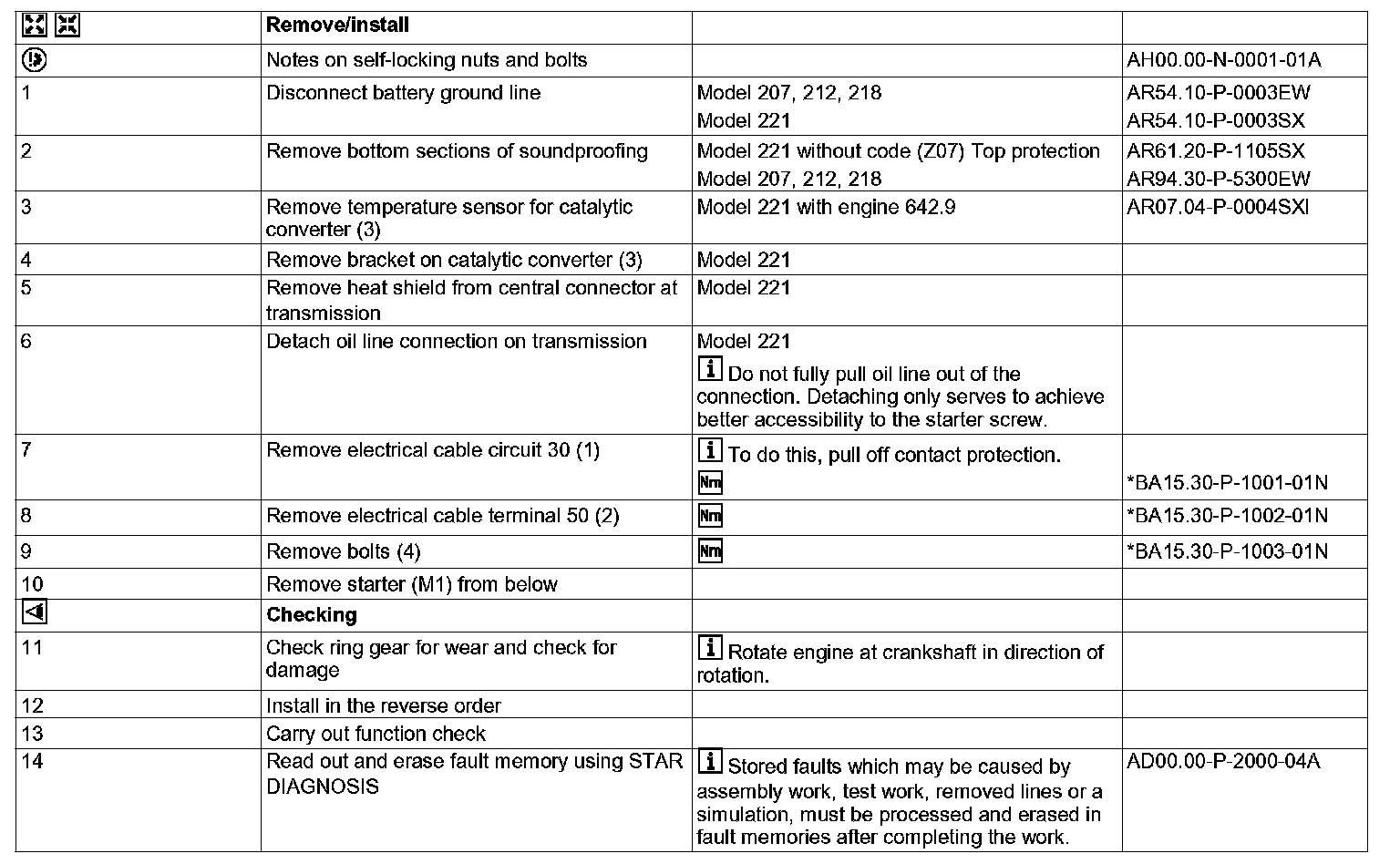

AR15.30-P-7100SXI Remove/Install Starter
-ENGINES 642 in MODEL 207, 212, 221.02 /12, 218

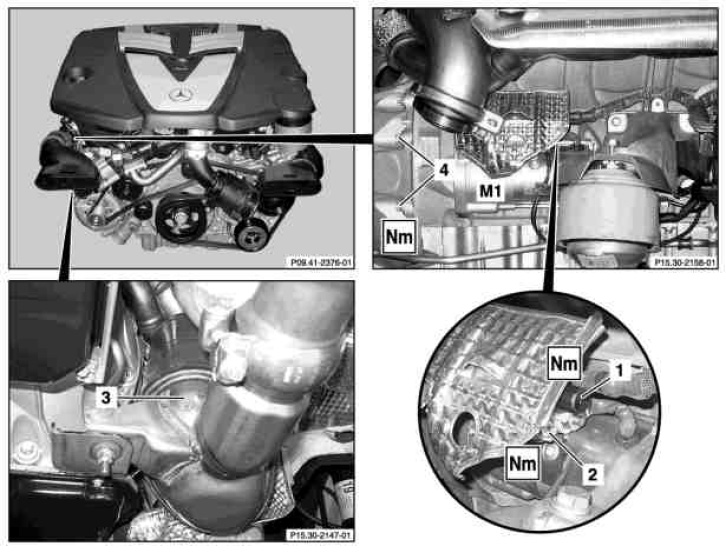

Shown on ENGINE 642.910 in MODEL 211

1 Electrical line, terminal 30
2 Electric cable circuit 50
3 Catalytic converter
4 Bolts

M1 Starter
