Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Lock >> Service and Repair >> AR46.10-P-0910EW Remove/Install Electronic Steering Lock

AR46.10-P-0910EW Remove/Install Electronic Steering Lock



AR46.10-P-0910EW Remove/install electronic steering lock
- except CODE (427) 7-speed automatic transmission

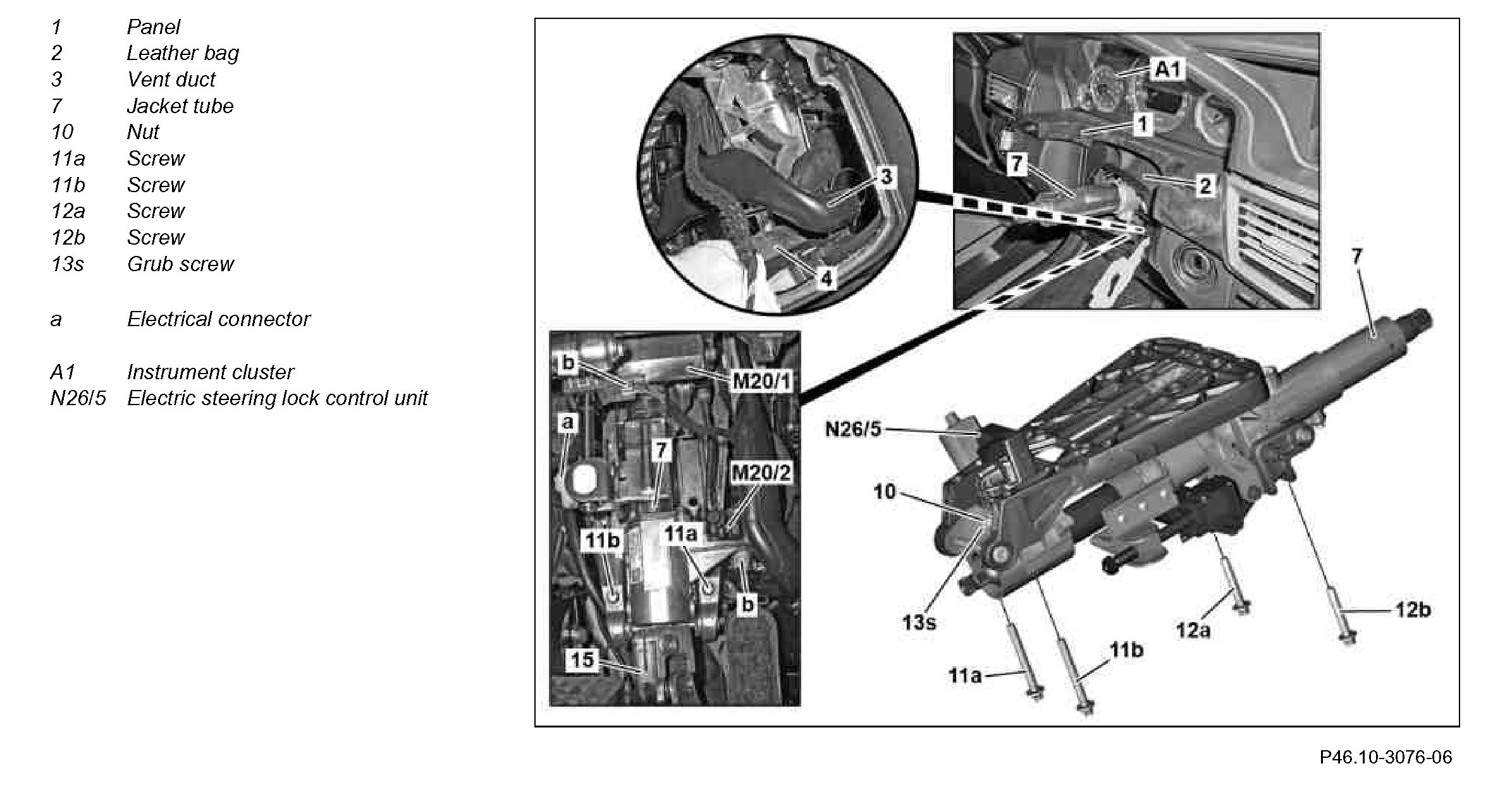

Component Identification:

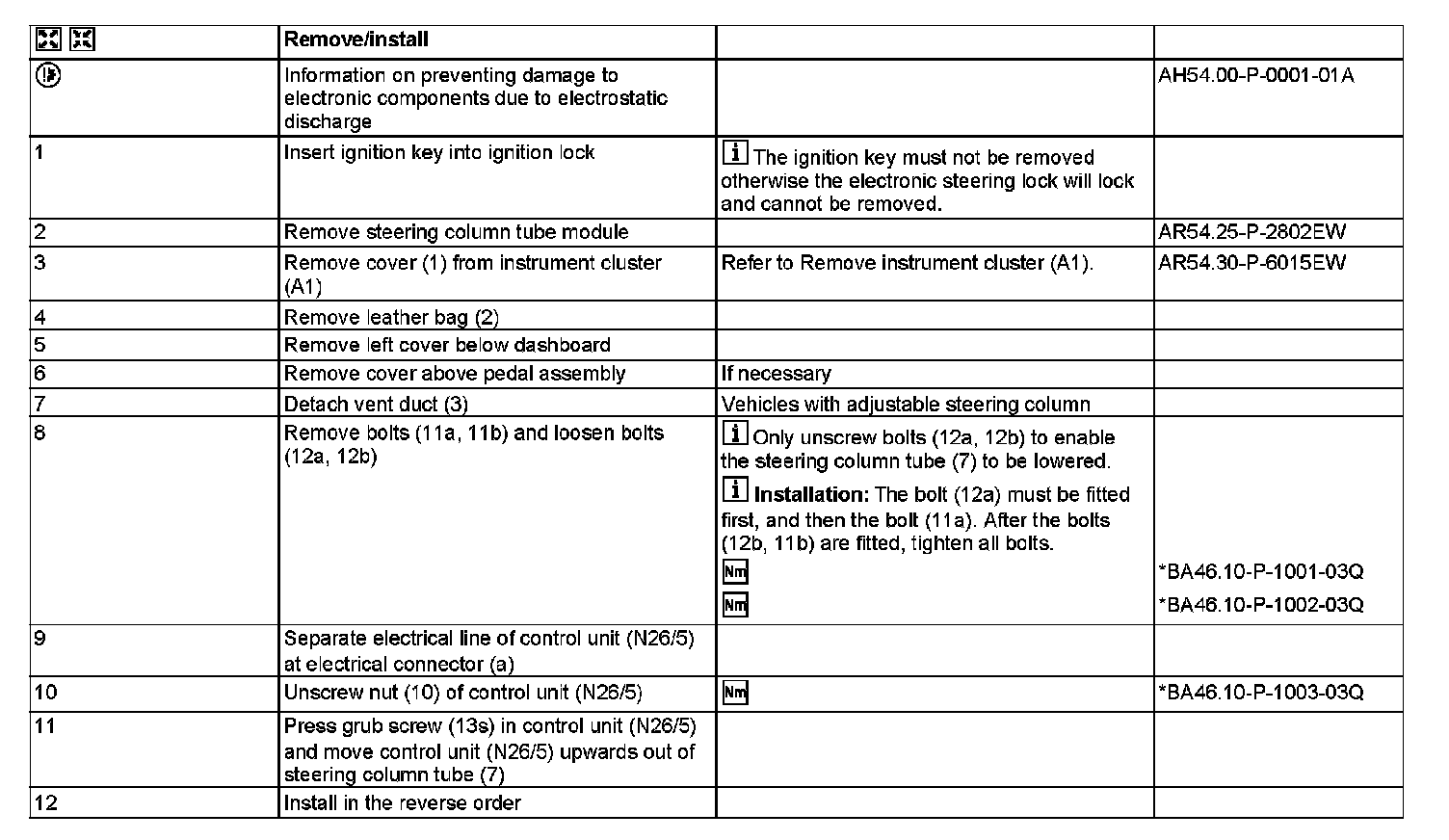

Steps 1-12:

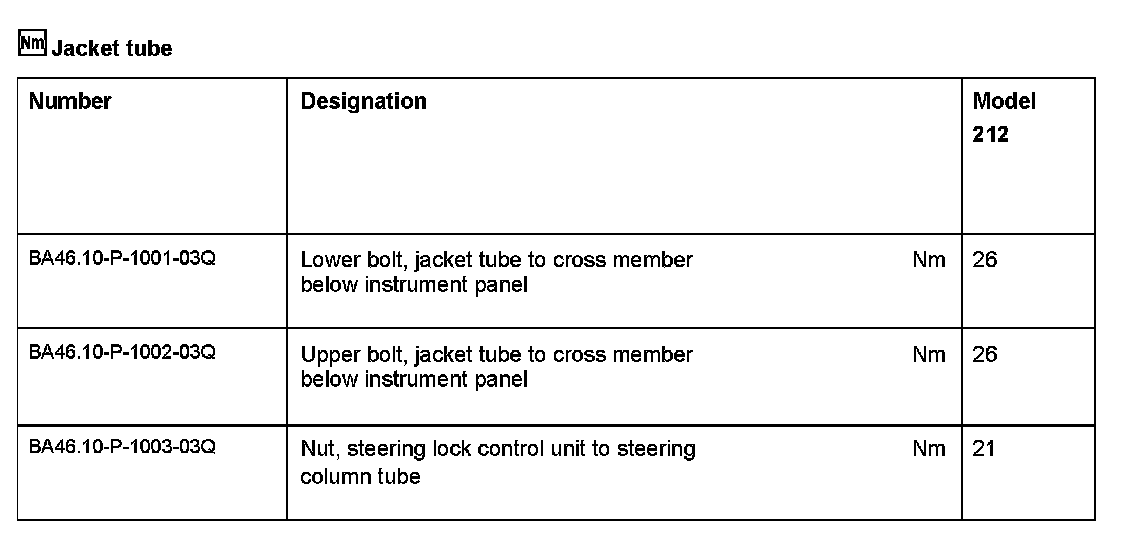

Jacket tube:
