AR46.10-P-0810EW Electronic Ignition/Starter Switch (EZS) Removal and Installation



AR46.10-P-0810EW Electronic ignition/starter switch (EZS) removal and installation

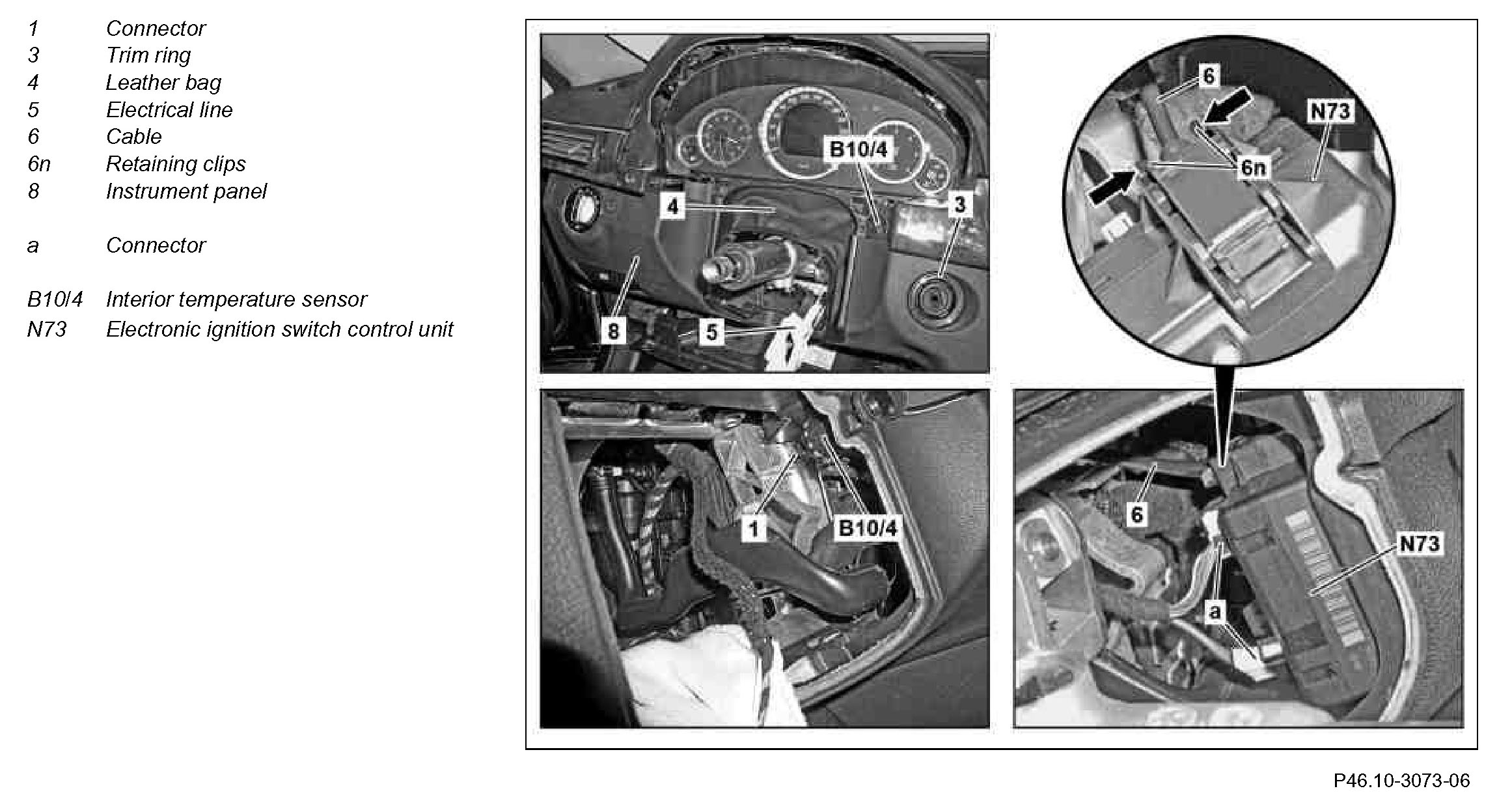

Component Identification:

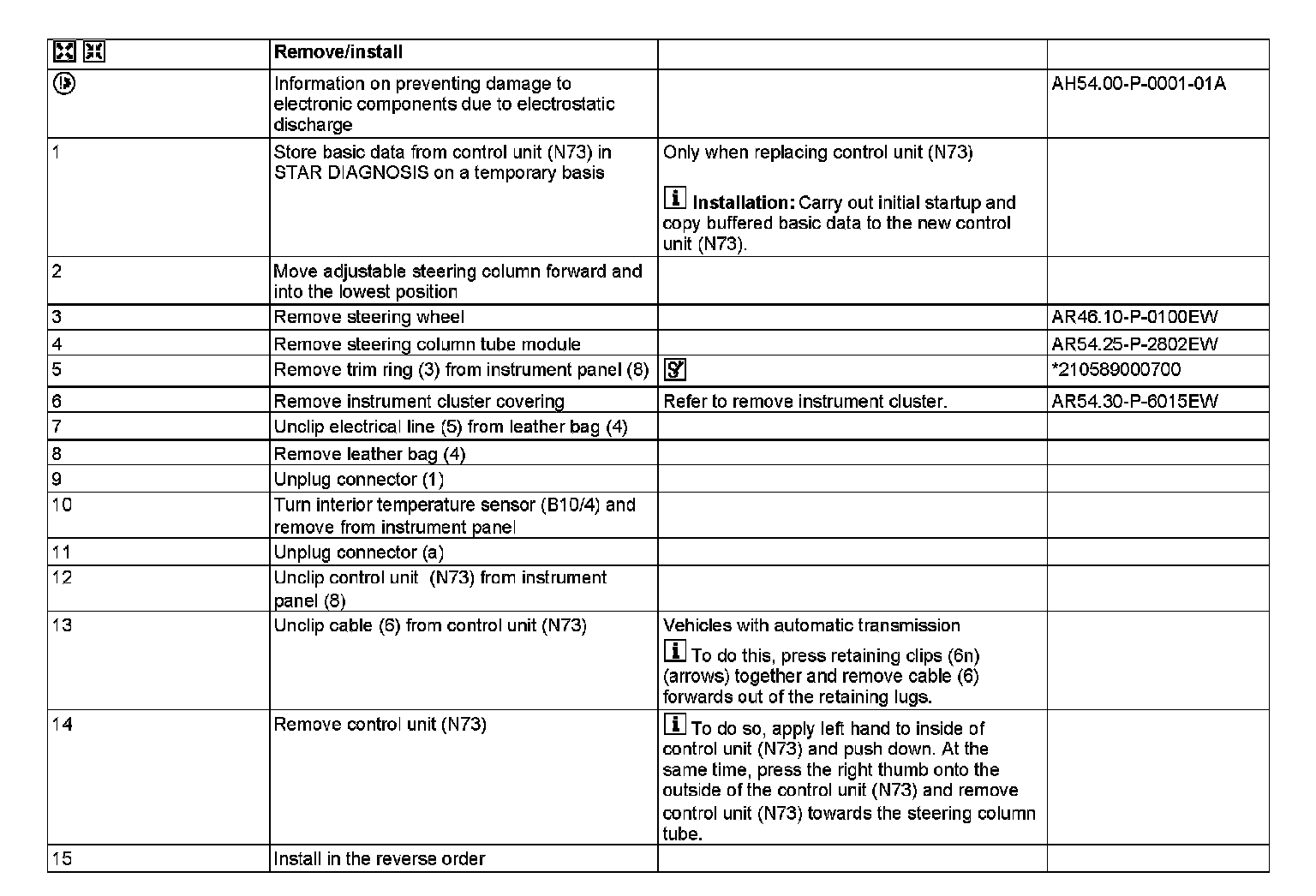

Steps 1-15:




Special Tools:
