Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Sensors and Switches - Starting and Charging
>>
Clutch Switch
>>
Service and Repair
Clutch Switch: Service and Repair
AR25.20-P-0095EW Remove/install clutch pedal switch

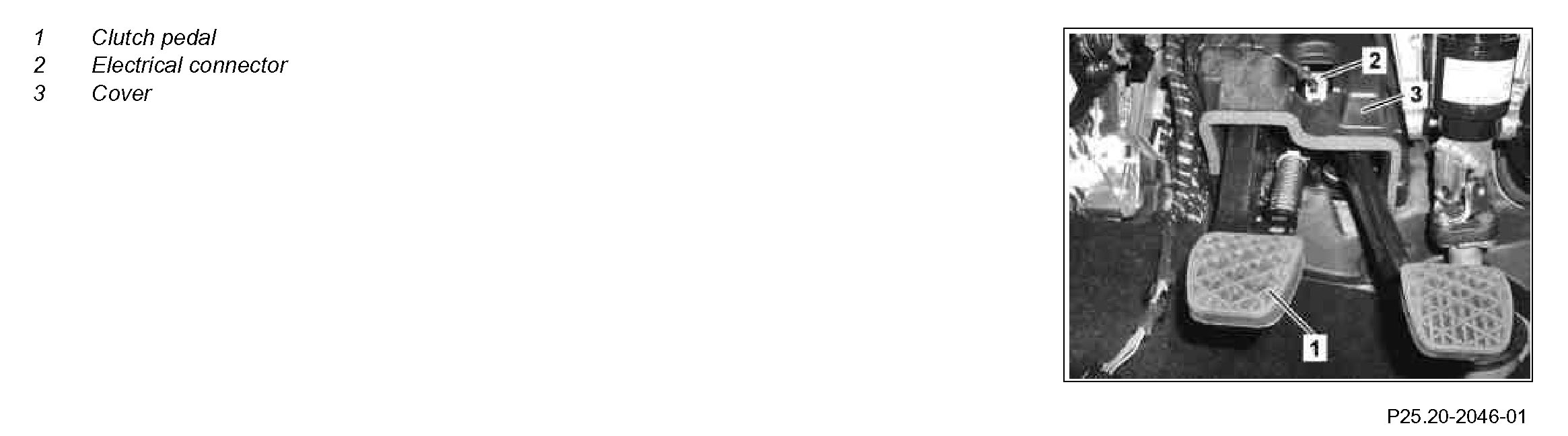

Component Identification:

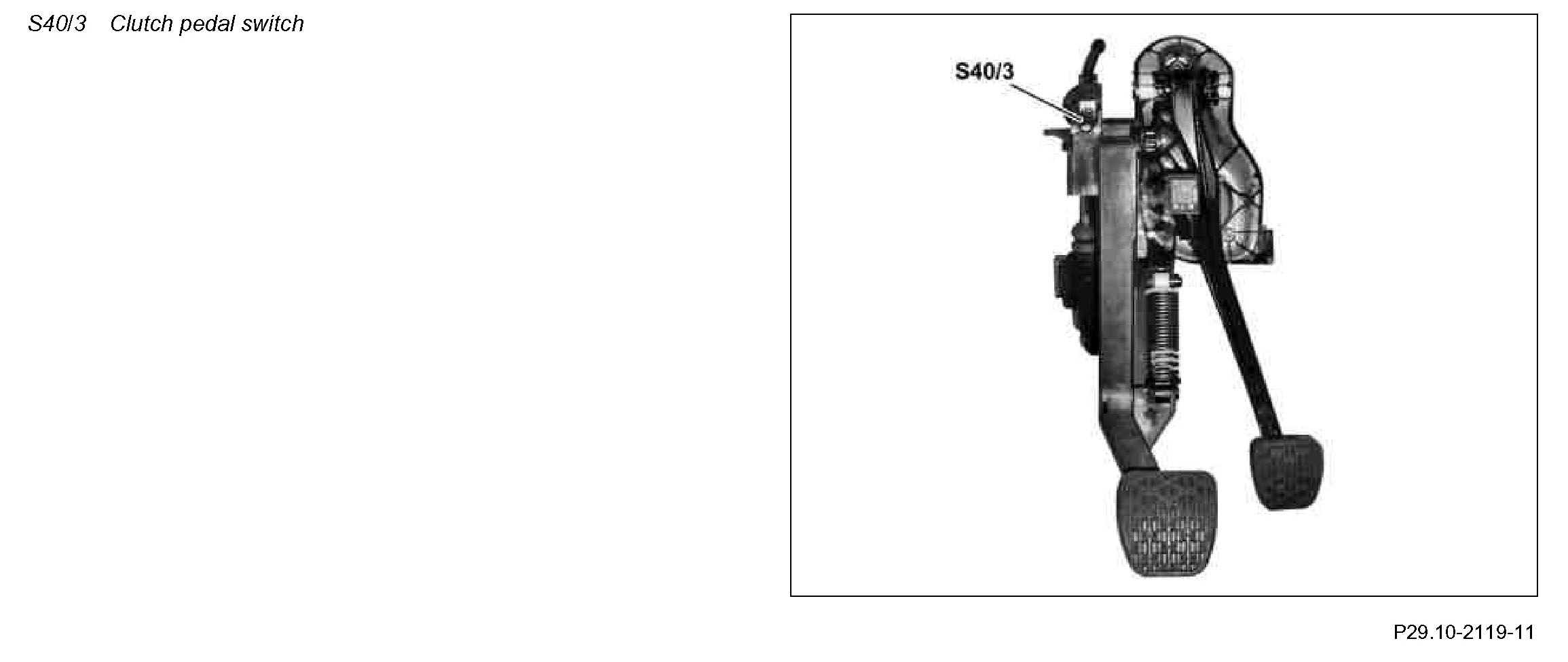

Component Identification:

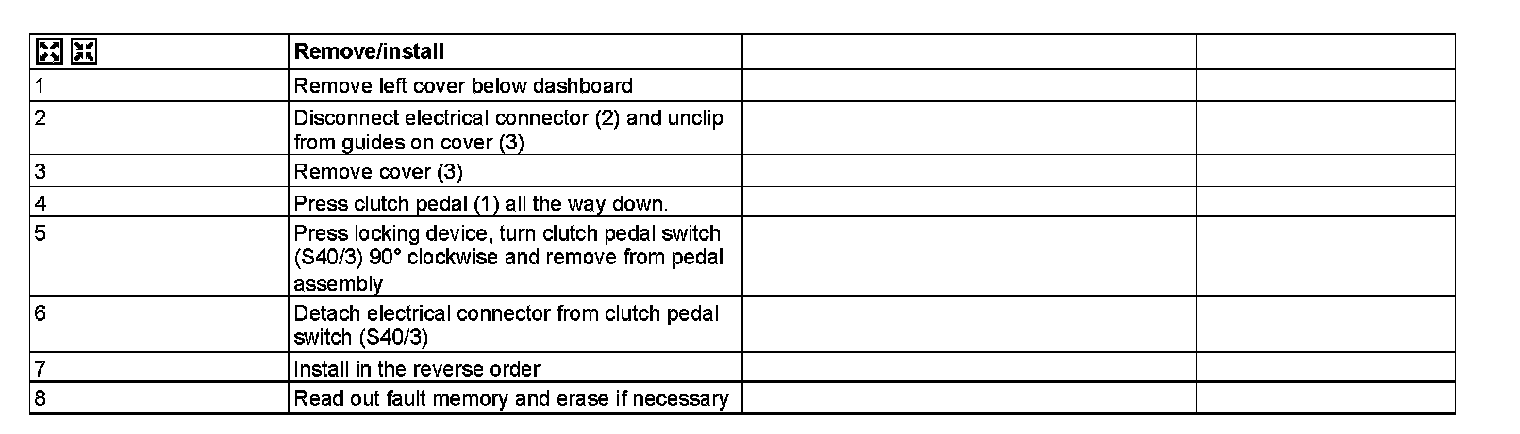

Steps 1-8:
