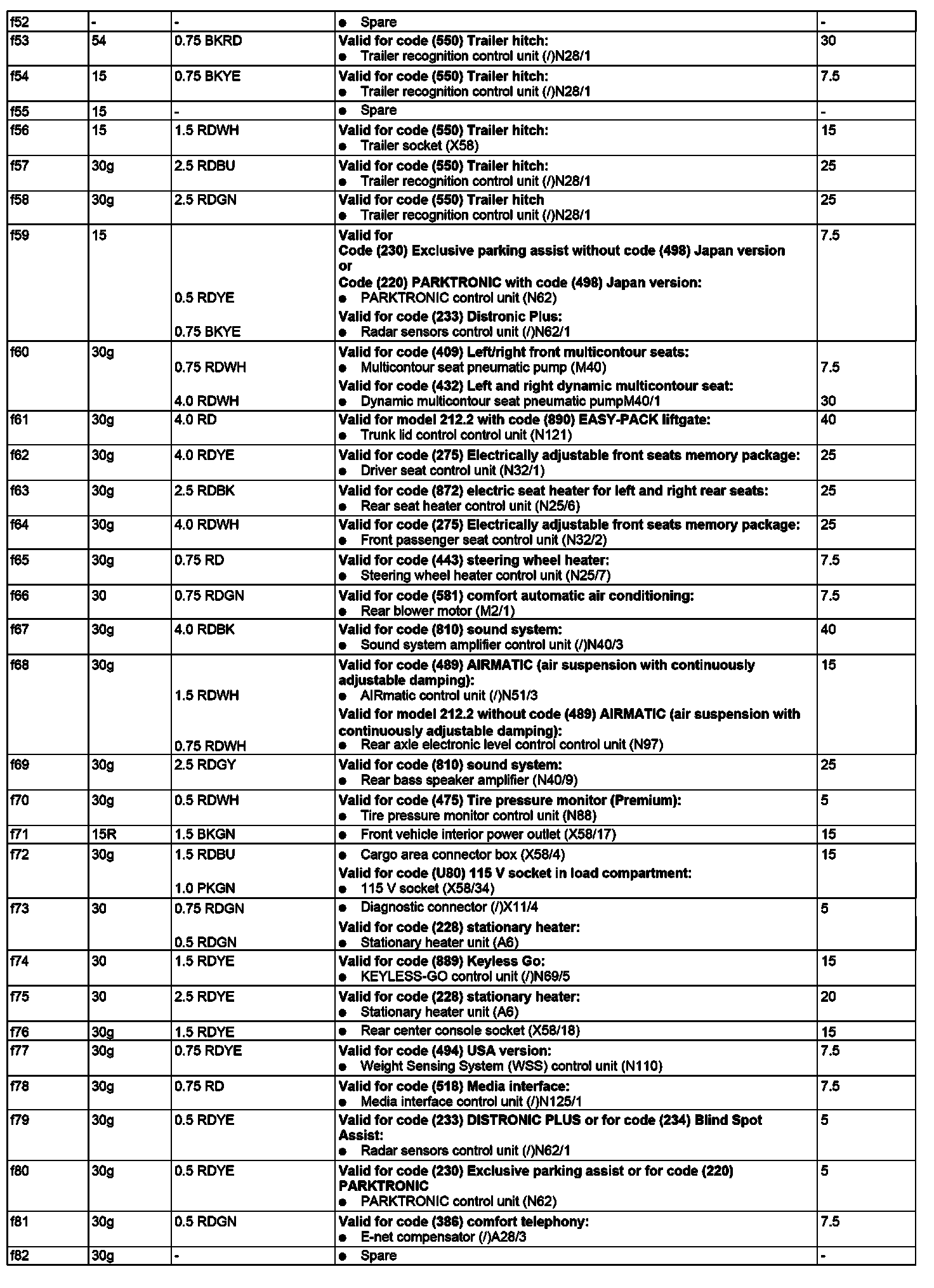

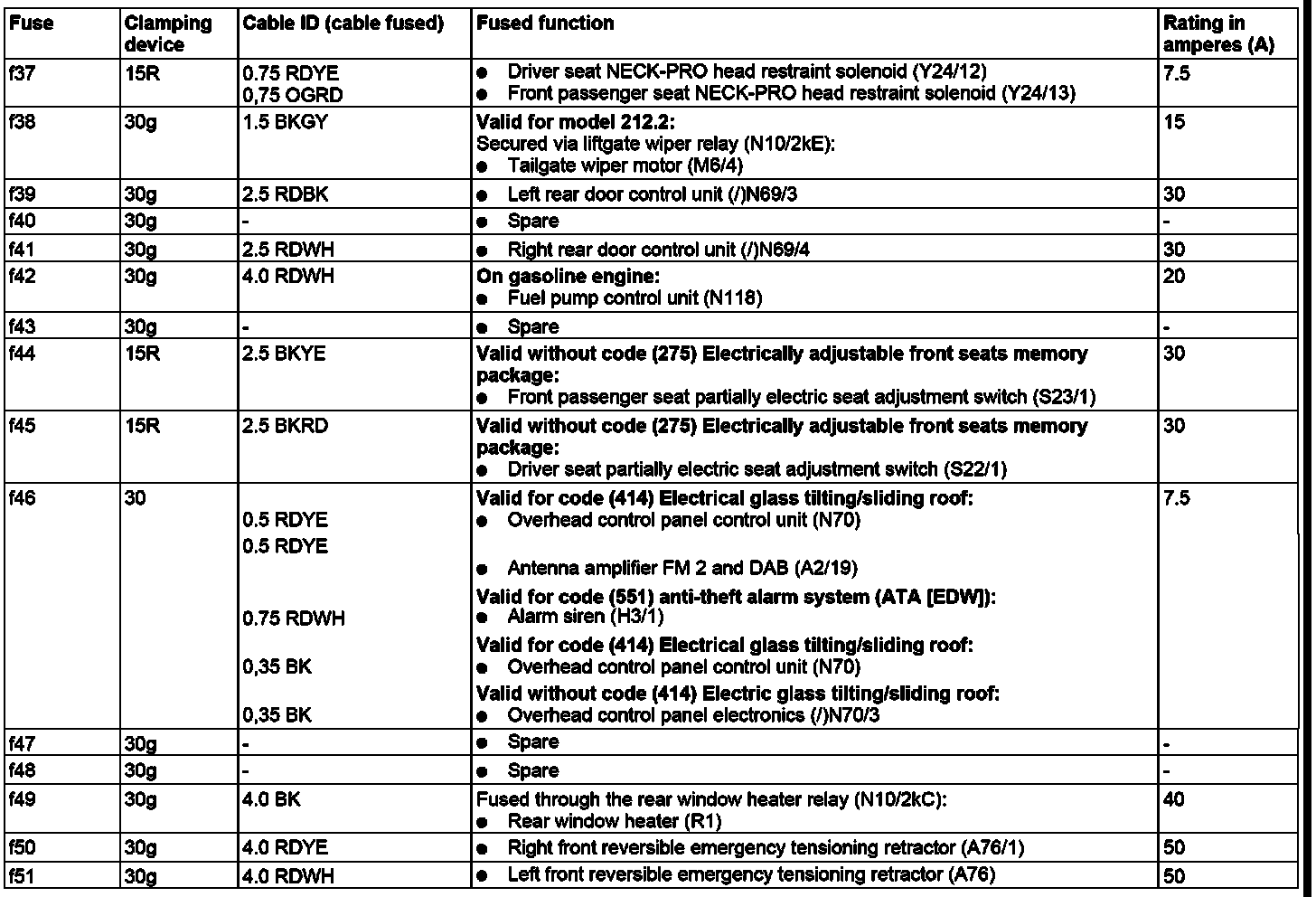

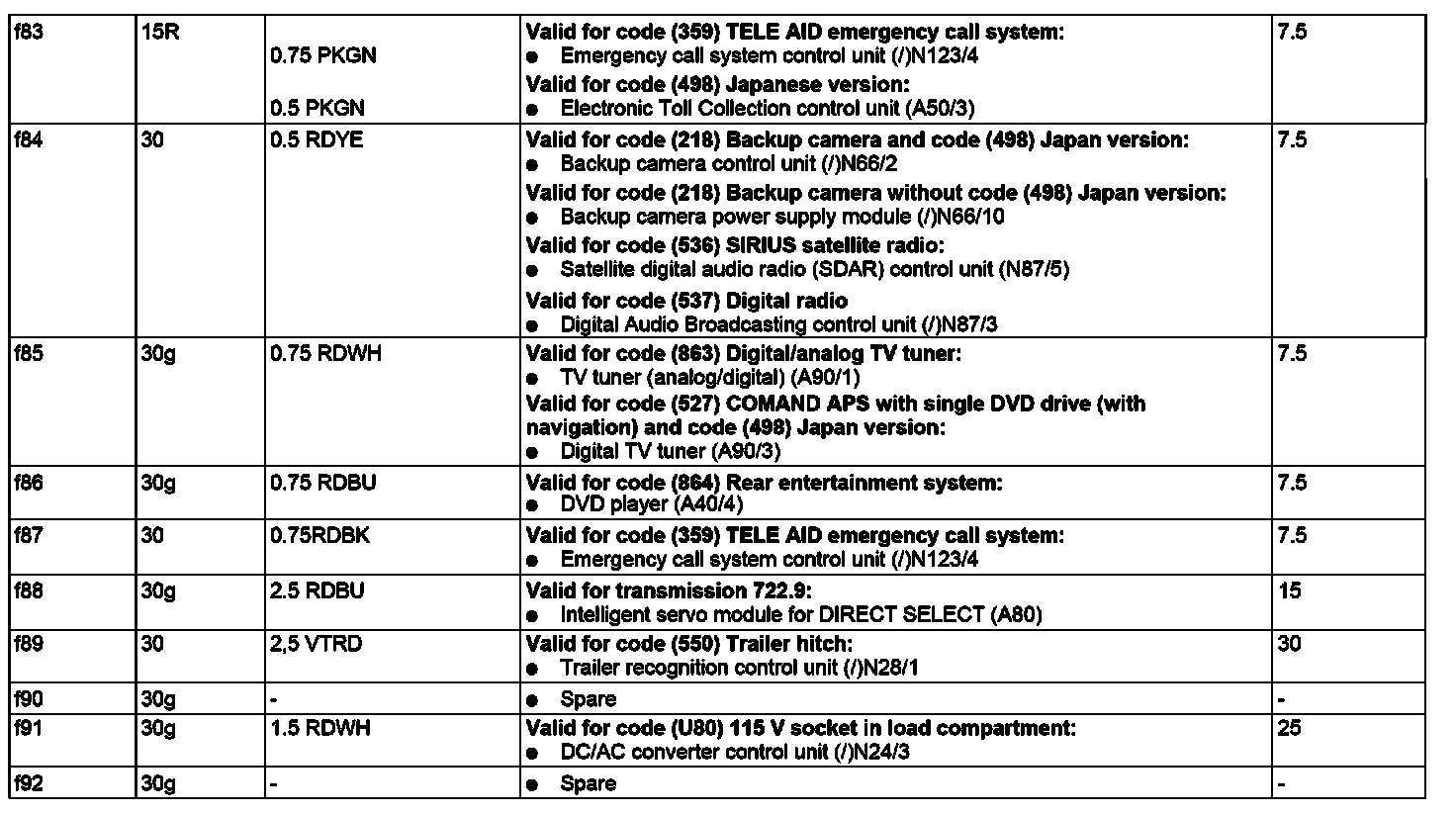

GF54.15-P-1256-06FL Fuse Assignment of Fuse and Relay Box In Trunk




GF54.15-P-1256-06FL Fuse Assignment of Fuse and Relay Box In Trunk






N10/1 Rear SAM control unit with fuse and relay module
X Direction of travel
