AR15.40-P-5012EW Test Alternator Fuse




AR15.40-P-5012EW Test Alternator Fuse
ENGINES 272, 273, 642, 651 in MODEL 212

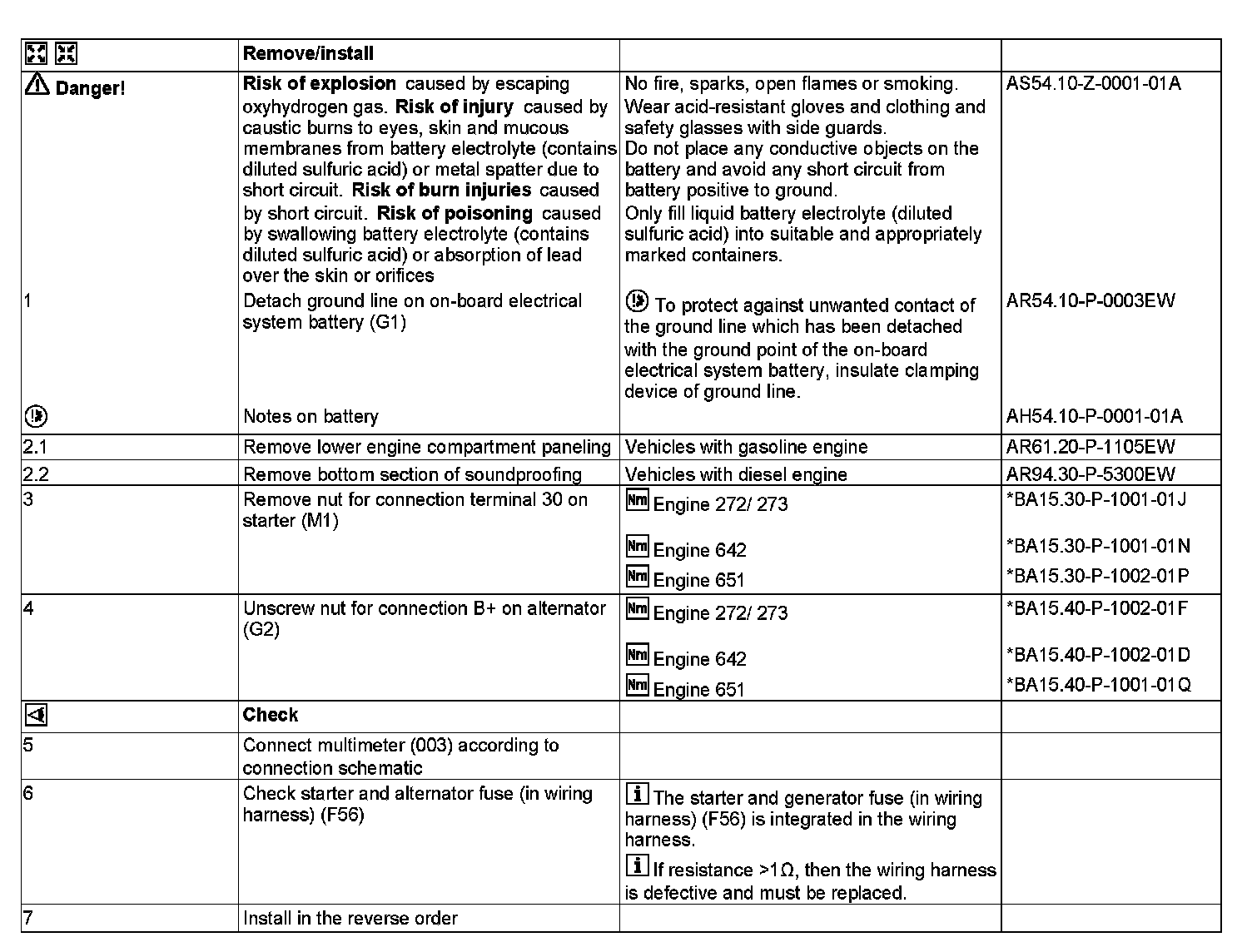

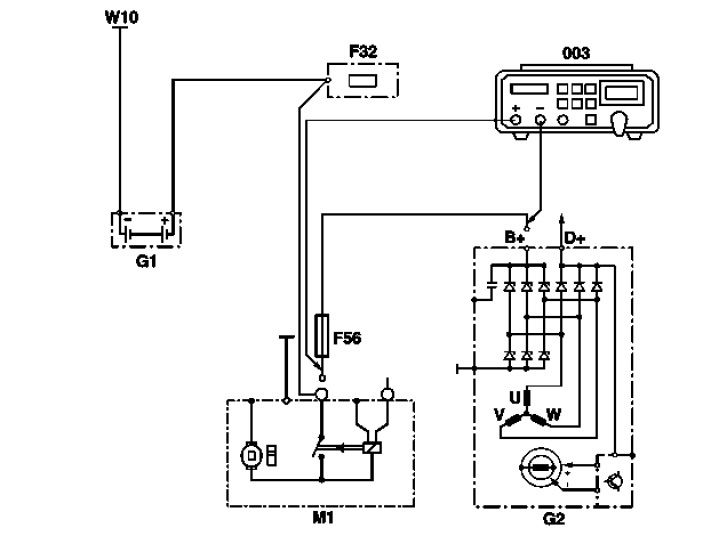

Connection diagram

003 Multimeter

F56 Starter, alternator fuse (in wiring harness)
G1 On-board electrical system battery
G2 Generator

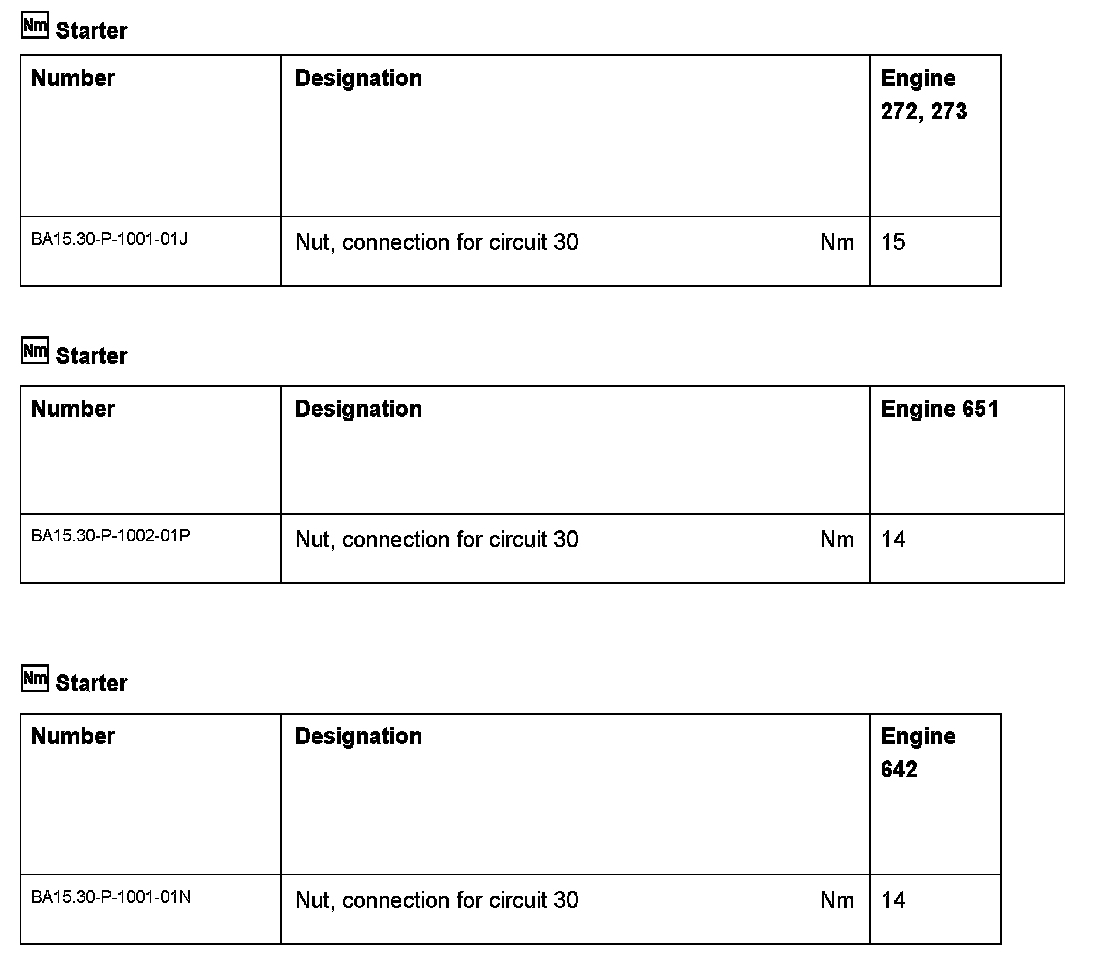

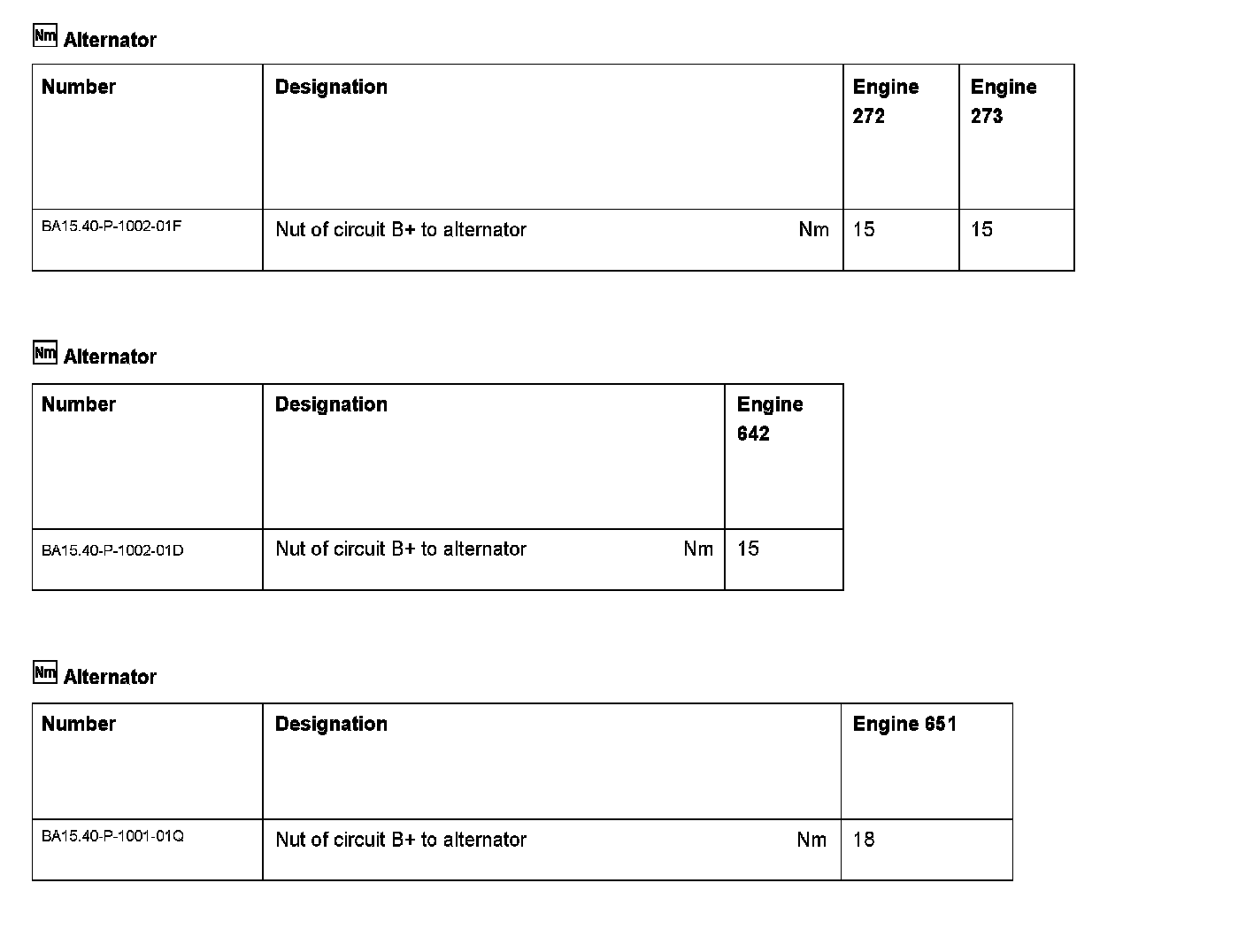

M1 Starter
