AR15.40-P-5710EW Remove/Install Alternator Belt Pulley



AR15.40-P-5710EW Remove/install alternator belt pulley

Component Identification:

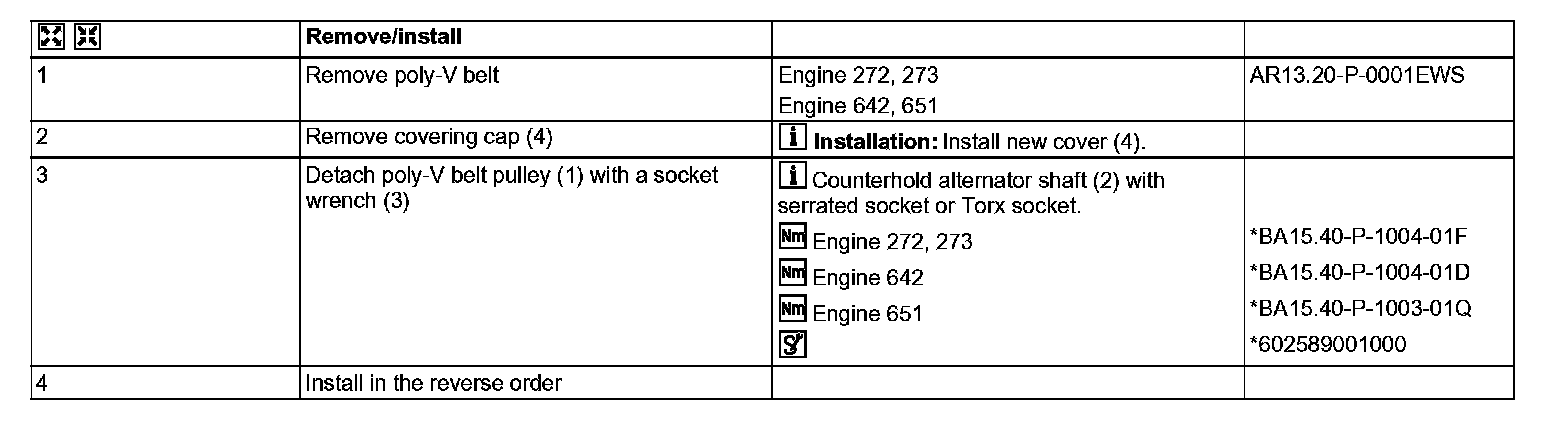

Steps 1-4:

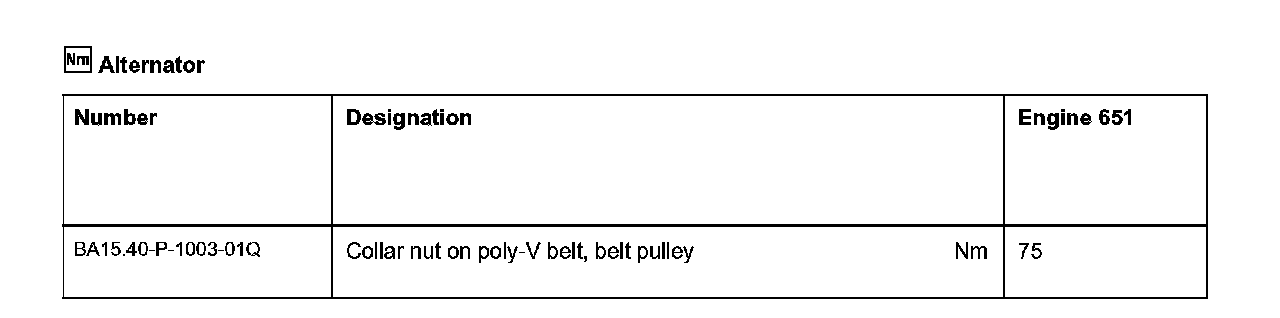

Alternator:

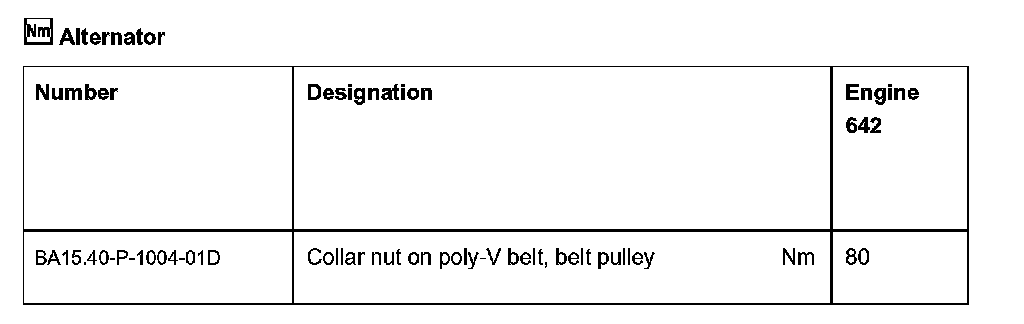

Alternator:

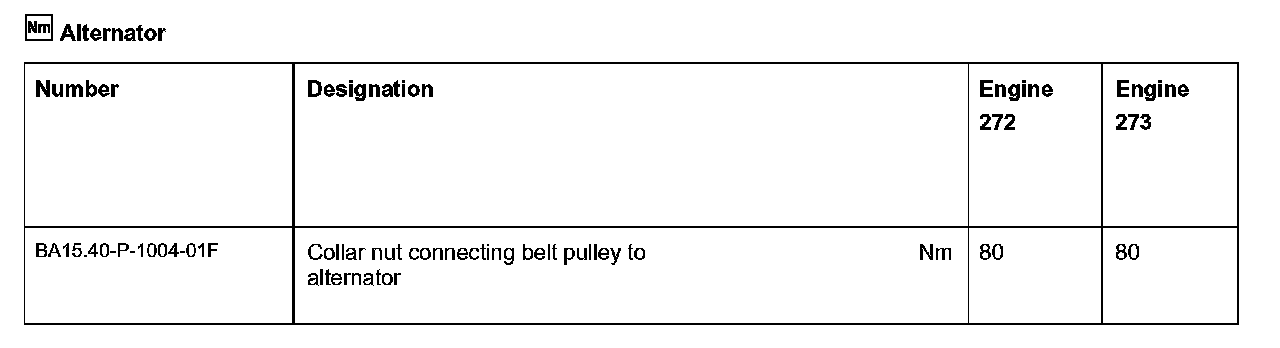

Alternator:

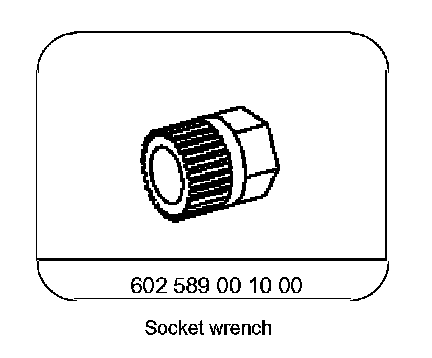

Special Tools:
