Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Battery
>>
Testing and Inspection
>>
AR54.10-P-1129CW Check Condition Of Battery
AR54.10-P-1129CW Check Condition Of Battery
AR54.10-P-1129CW Check Condition Of Battery
Modification Notes:

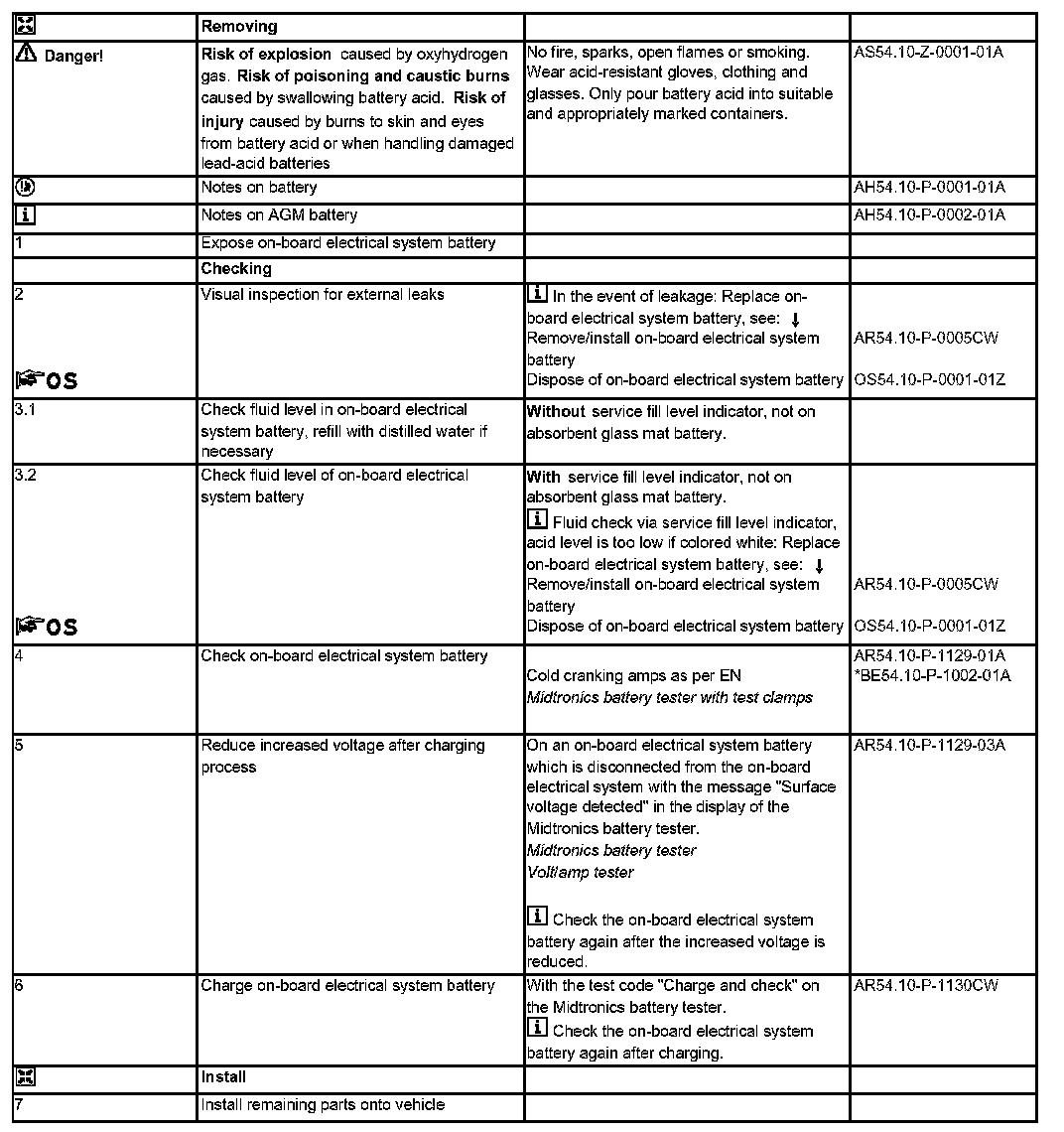

Steps 1 - 7:
Test And Adjustment Values For The Battery:
