Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Starting and Charging >> Battery >> Service and Repair >> Removal and Replacement >> AR54.10-P-0007EW Remove/Install Additional Battery

AR54.10-P-0007EW Remove/Install Additional Battery



AR54.10-P-0007EW Remove/install Additional Batter
- with CODE (279) E;ectronic gear selector

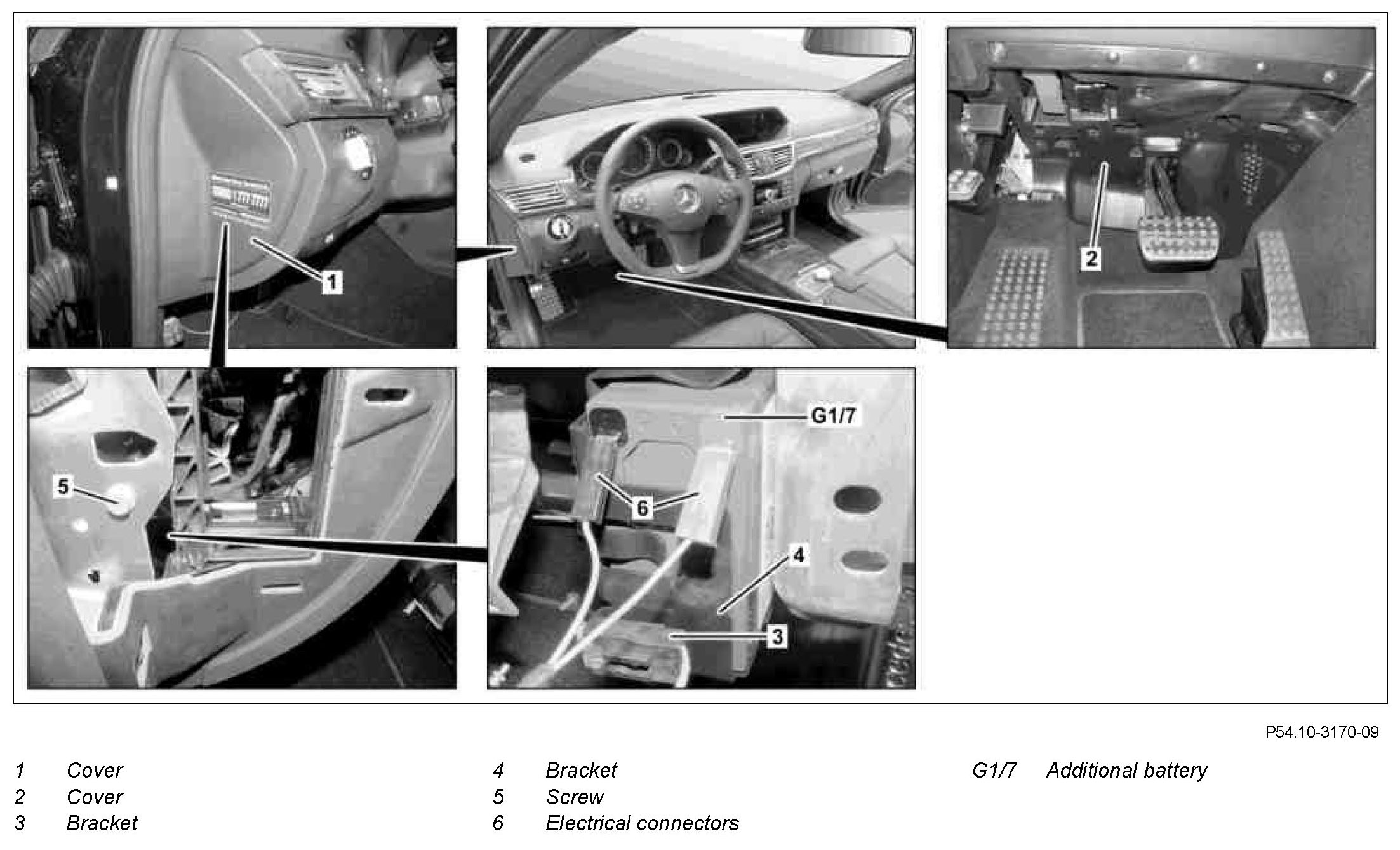

Component Identification:

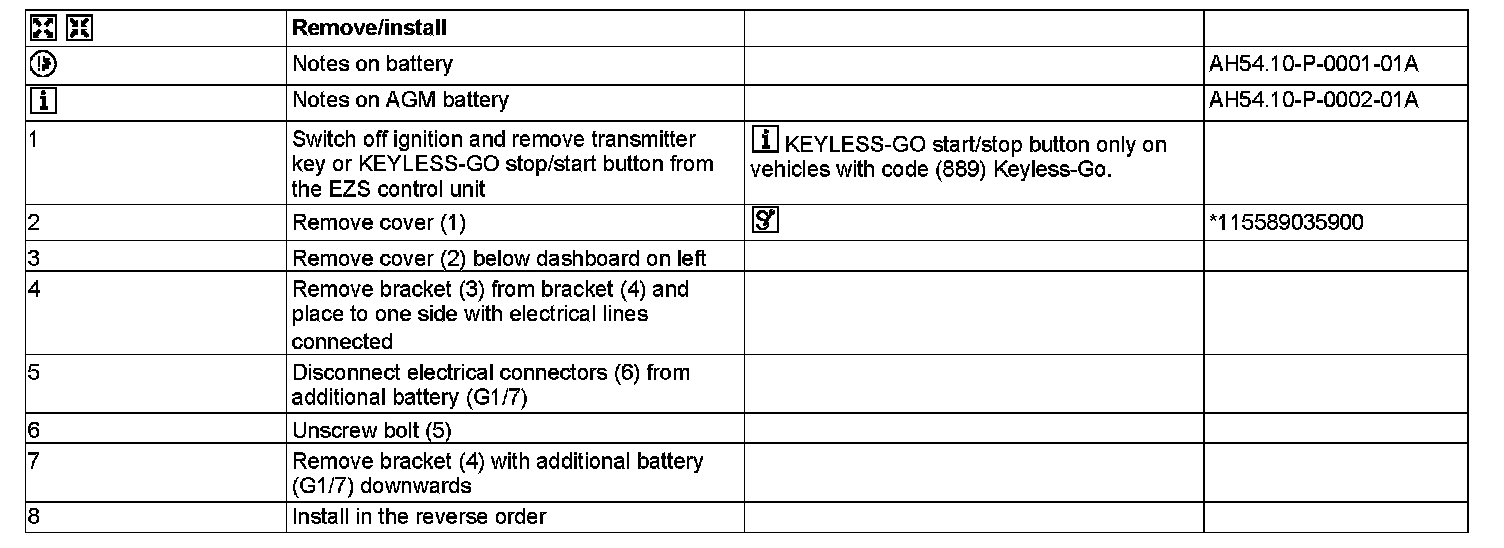

Steps 1-8:

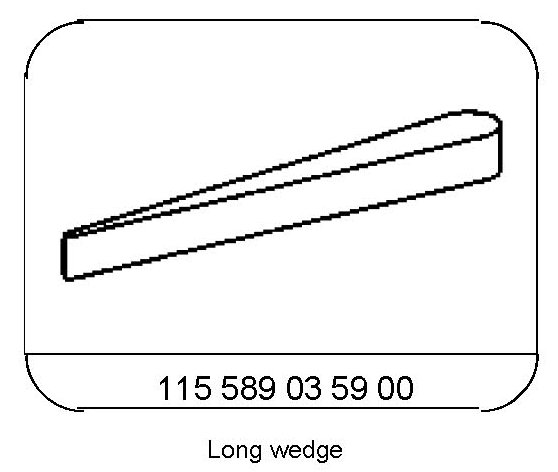

Special Tools:
