AR54.10-P-0007ES Remove/Install Additional Battery



AR54.10-P-0007ES Remove/install Additional Battery
- with CODE (B03) ECO start/stop function

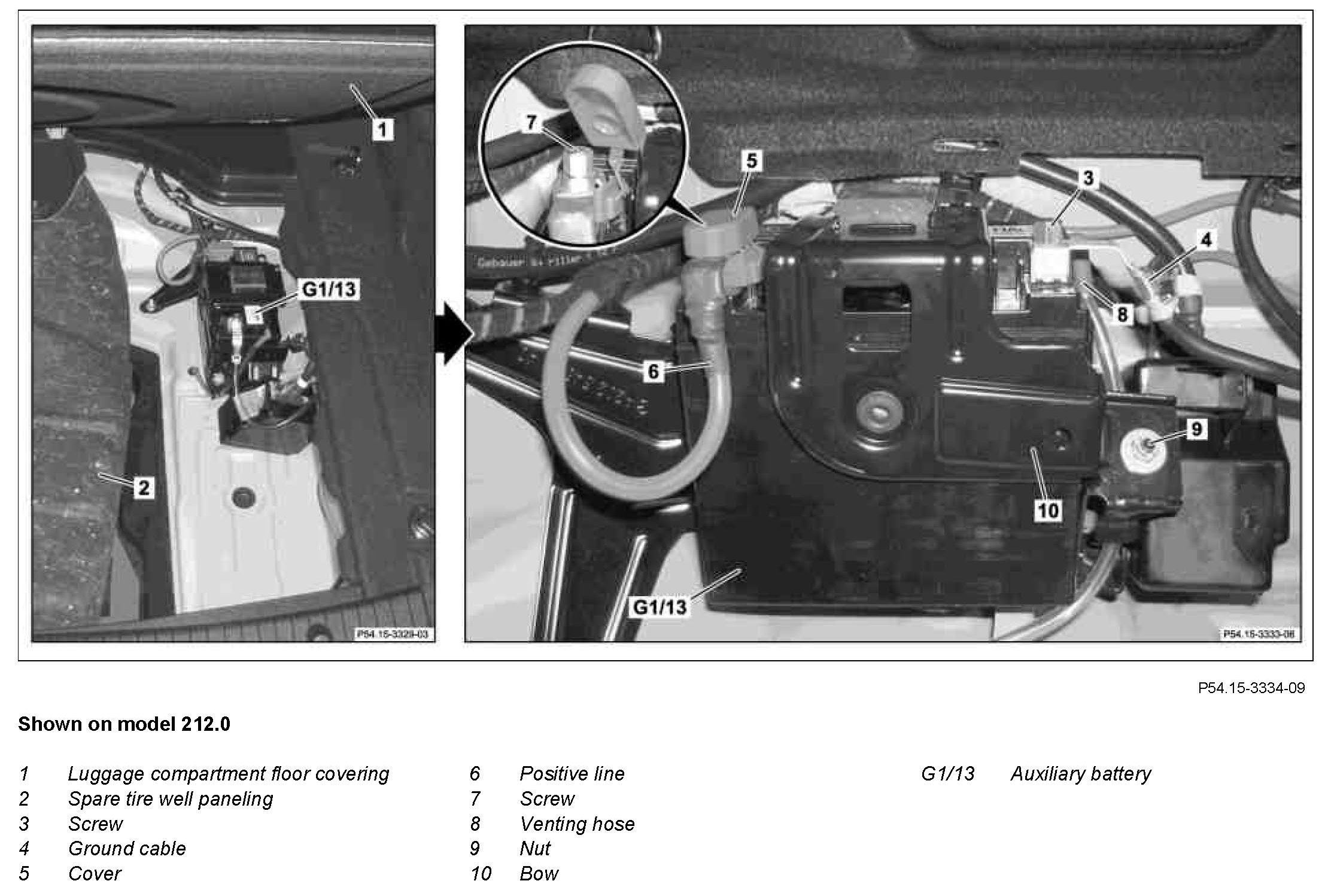

Component Identification:

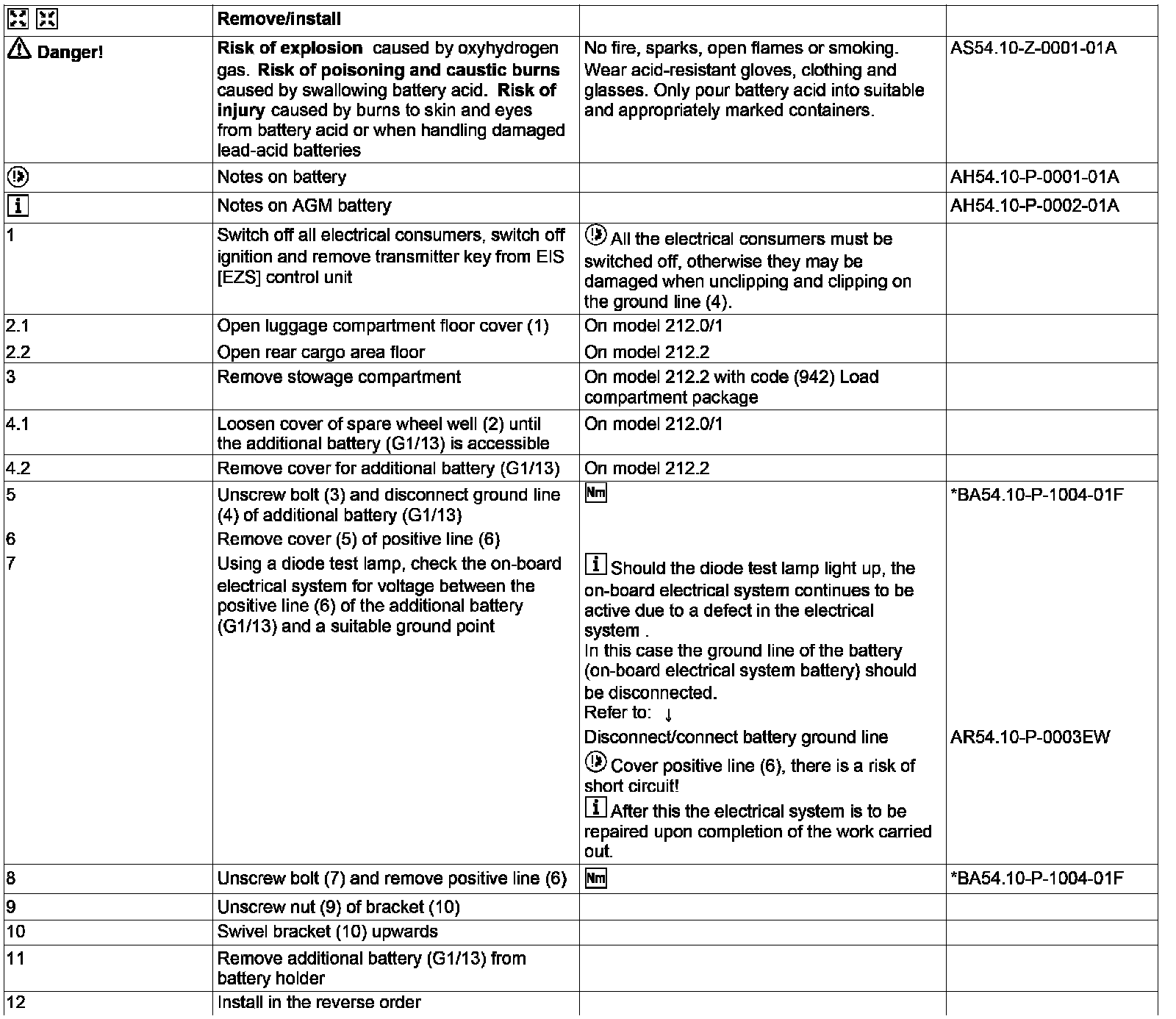

Steps 1-12:

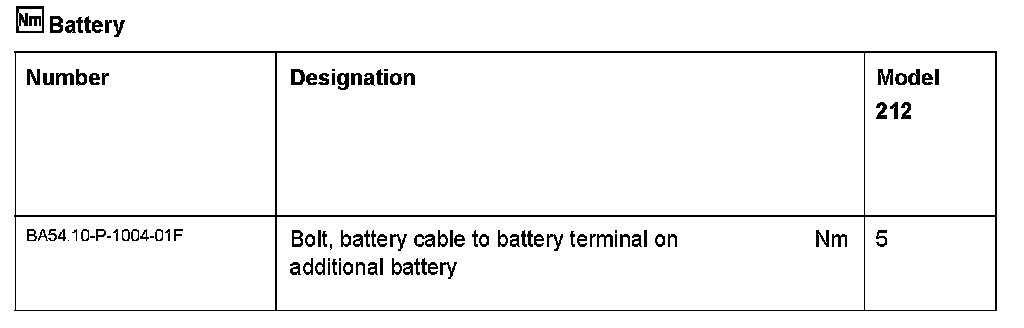

Battery:
