FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2011
>>
E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Battery
>>
Battery Cable
>>
Negative
>>
Service and Repair
Negative: Service and Repair
AR54.10-P-0003EW Disconnect/connect Battery Ground Line

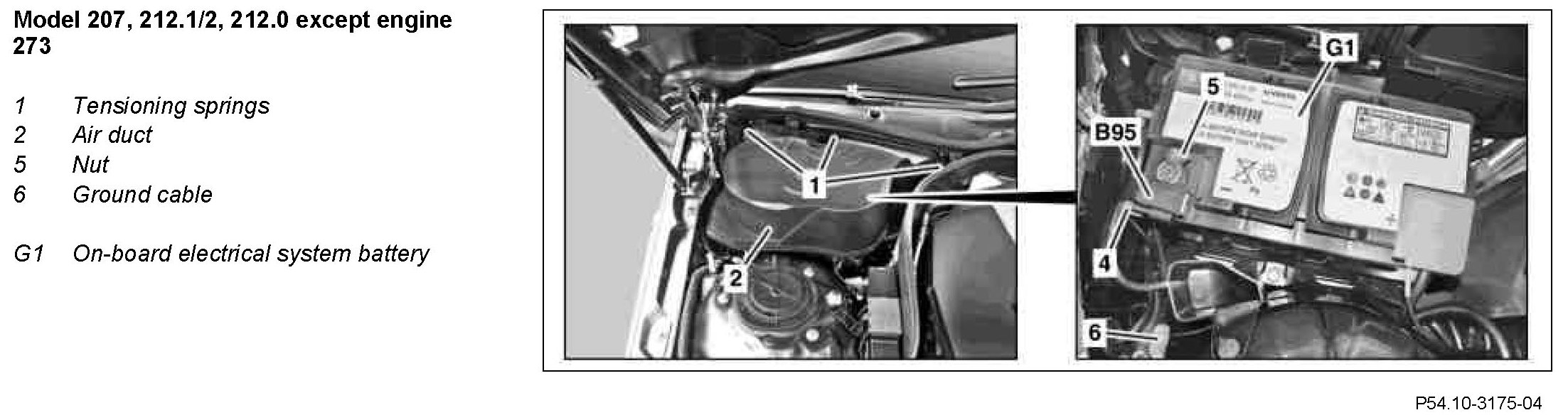

Component Identification:

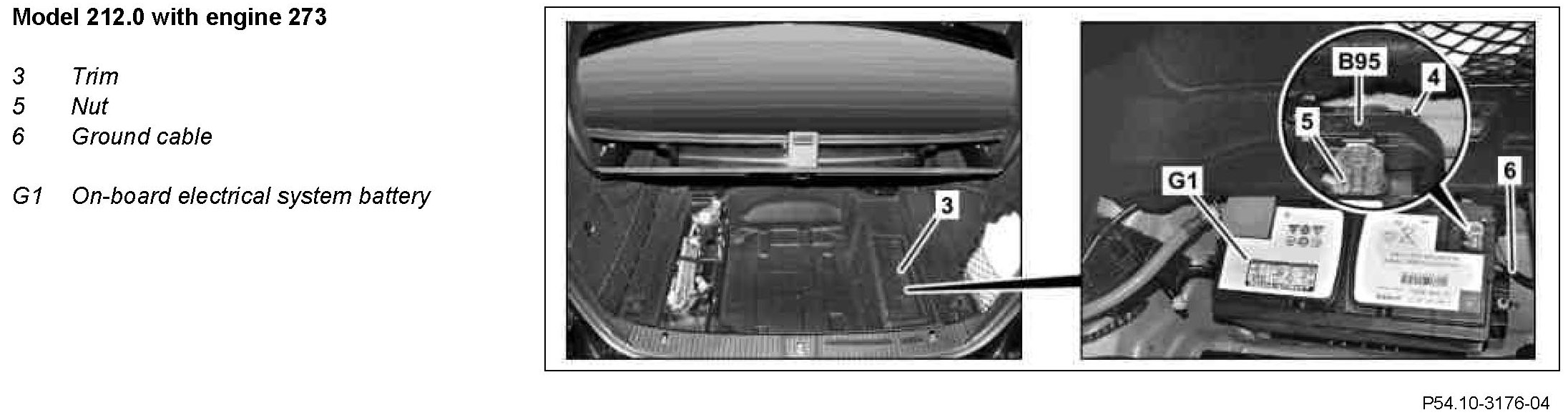

Component Identification:

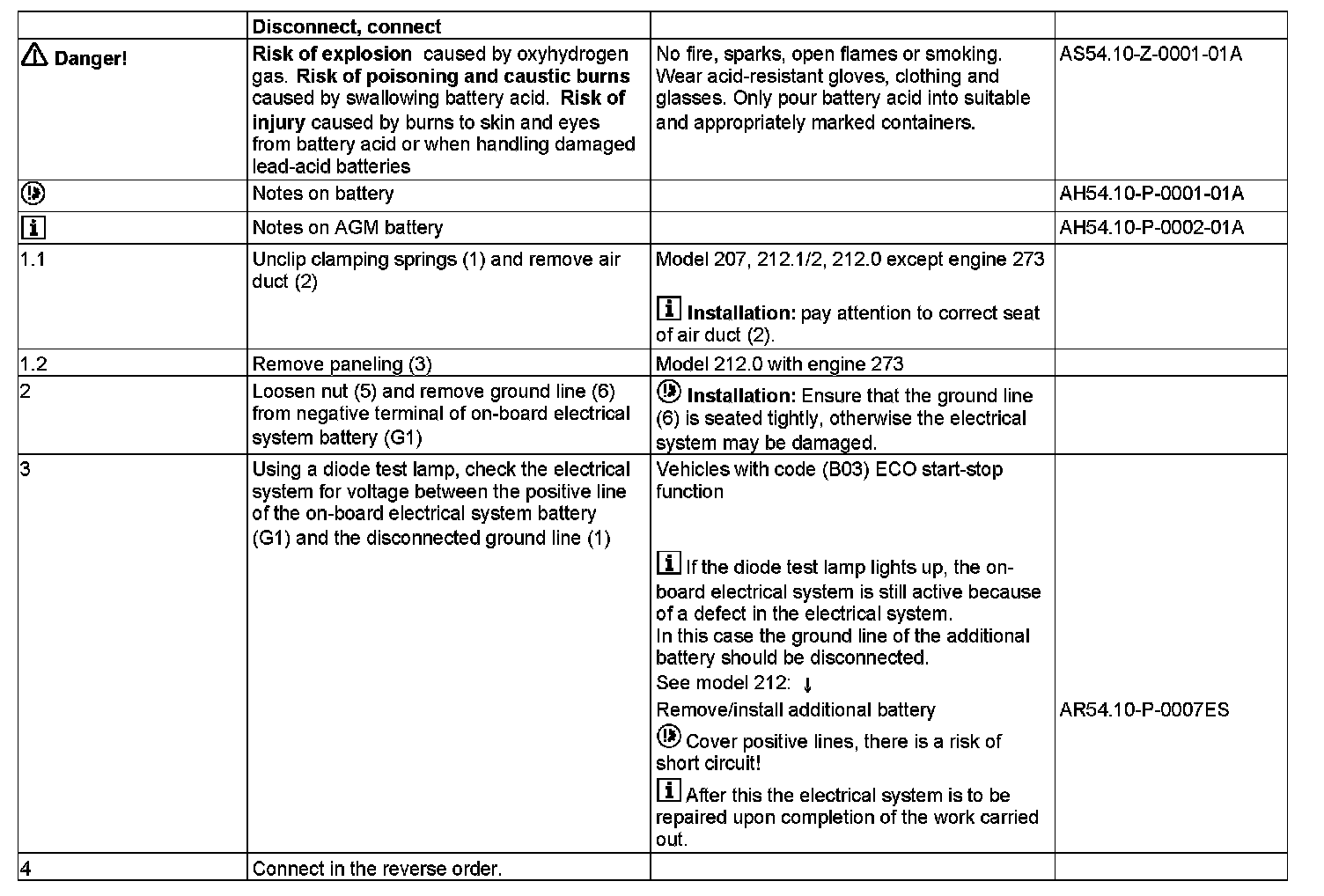

Steps 1-4:
