Vacuum Brake Booster

BE43.10-P-1000-01F Pneumatic brake booster test specifications

Modification Notes:

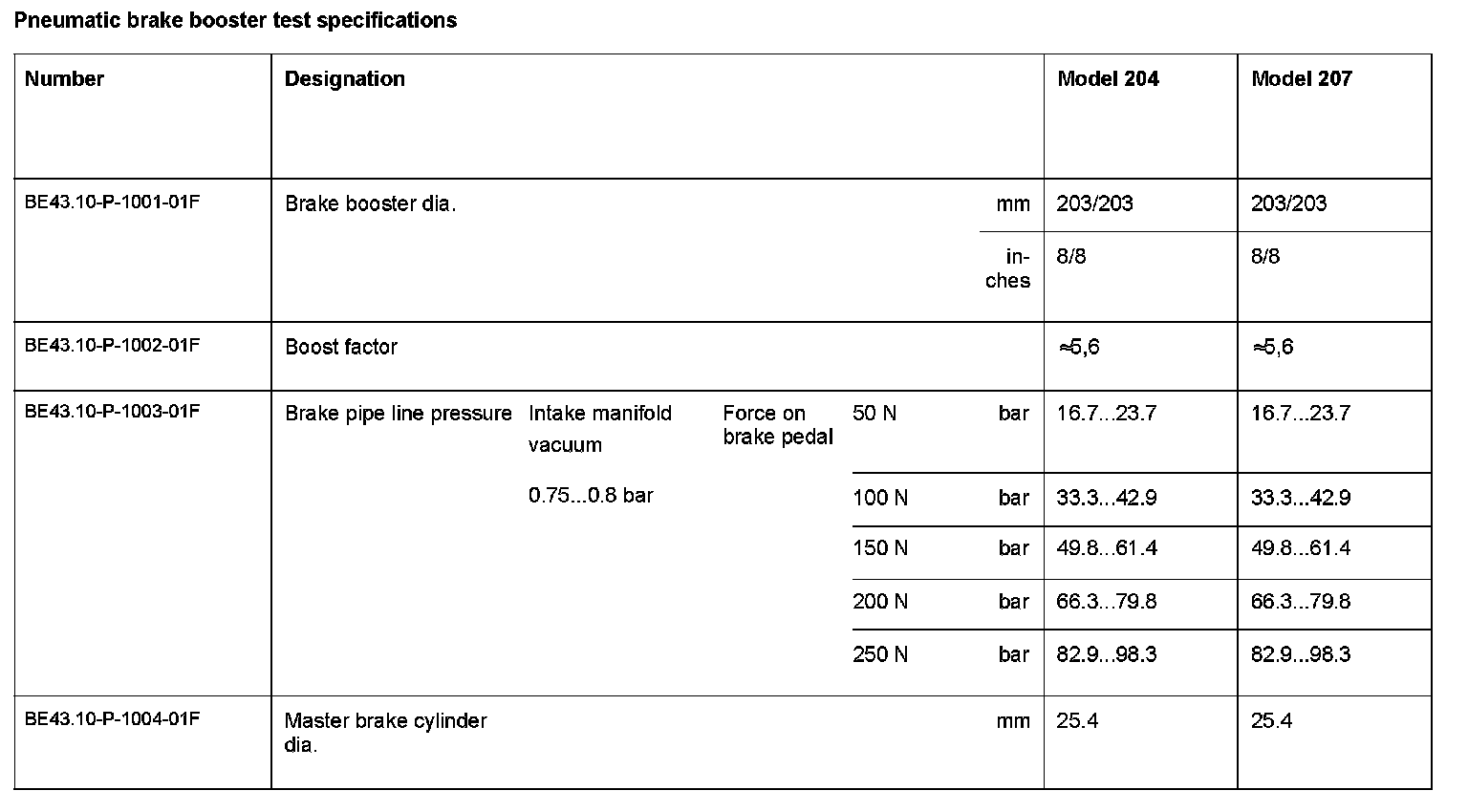

Pneumatic Brake Booster Test Specifications:

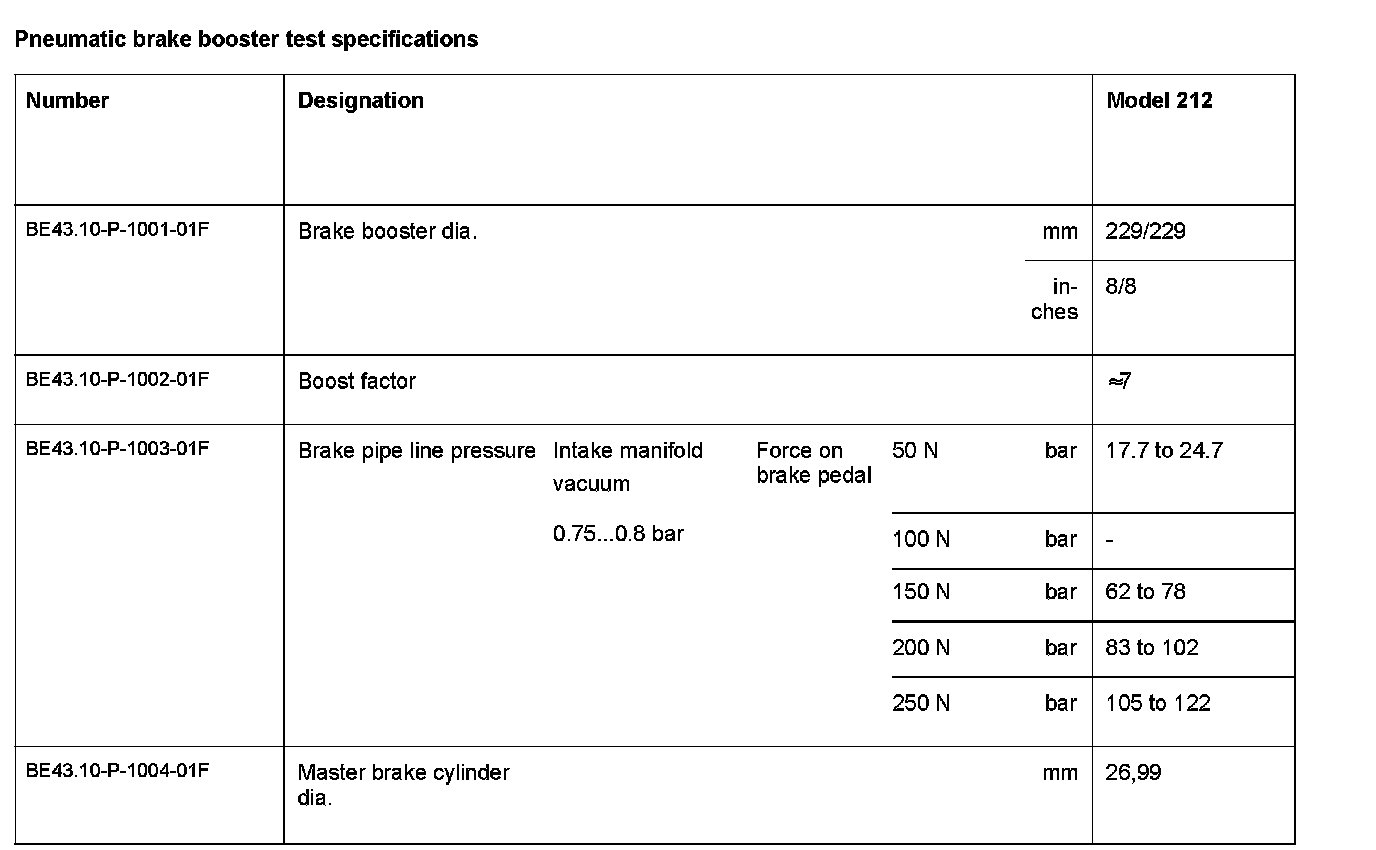

Pneumatic Brake Booster Test Specifications:
