Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> System Specifications

System Specifications

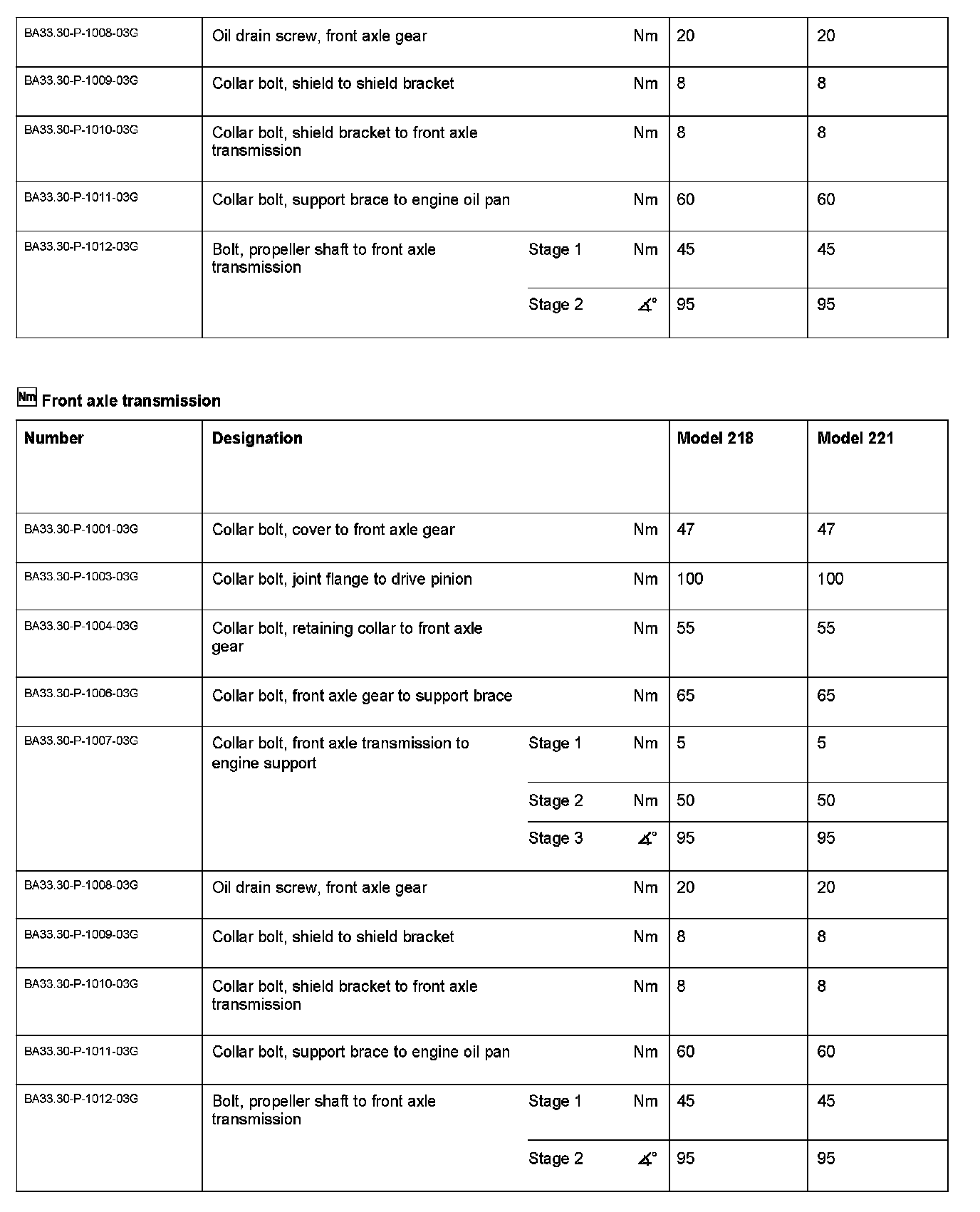

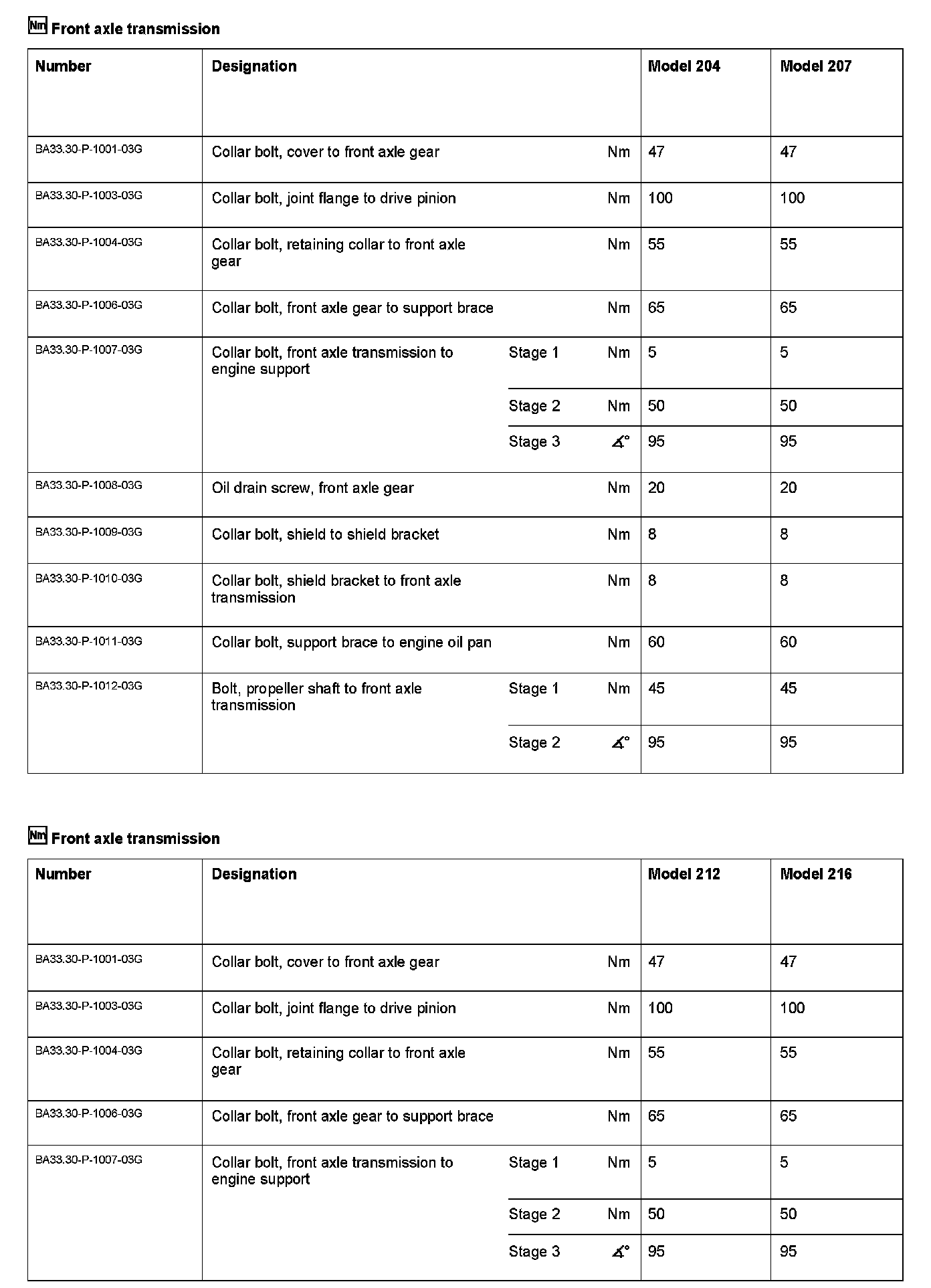

BA33.30-P-1000-03G Front Axle Transmission
Models 204, 207, 212, 216, 218, 221
