Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Clutch, M/T >> BA25.10-P-1000-01H Clutch

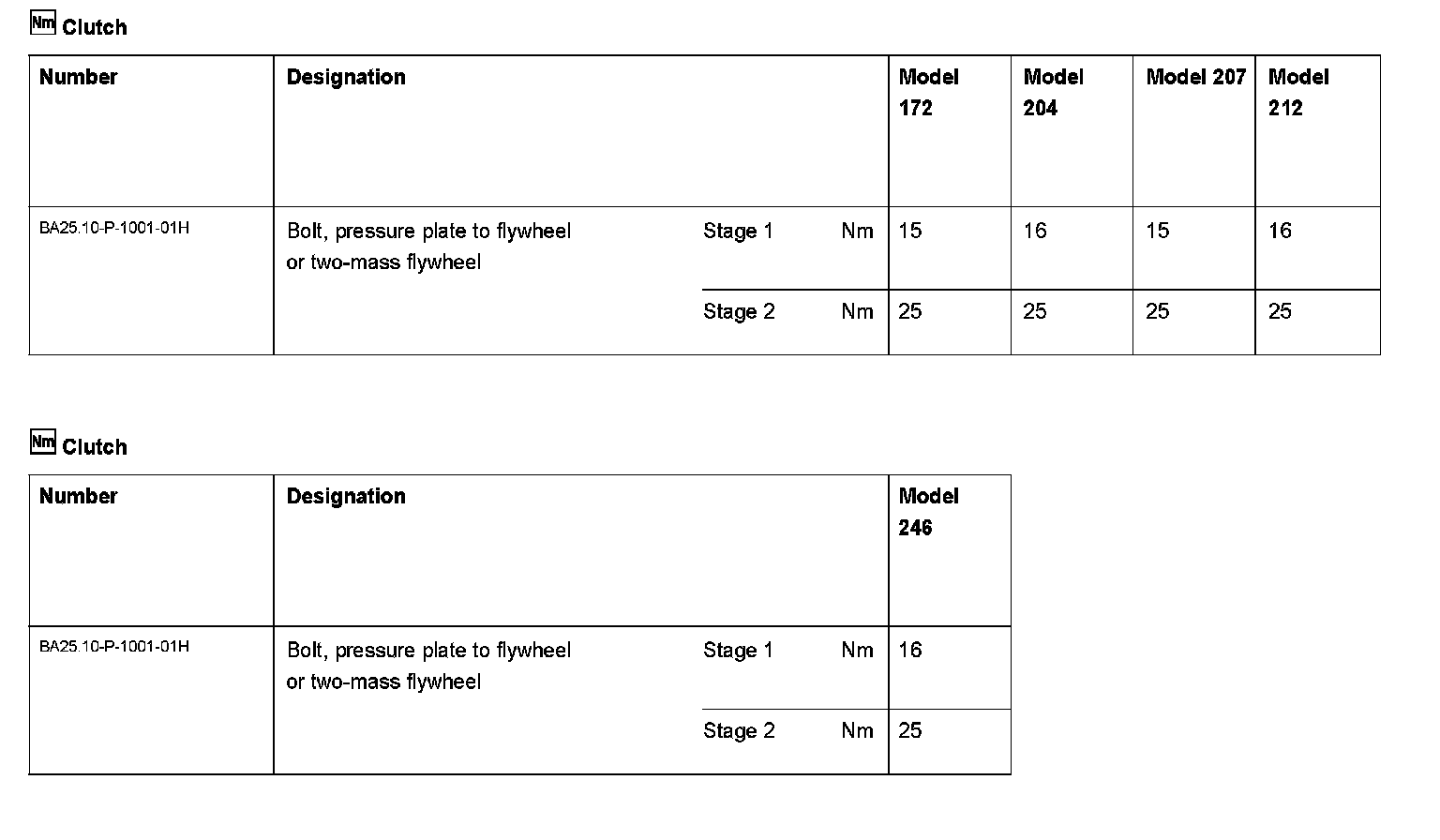

BA25.10-P-1000-01H Clutch



BA25.10-P-1000-01H Clutch
Model 172, 204, 207, 212, 246
