Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Fluid Pan, A/T

Fluid Pan, A/T

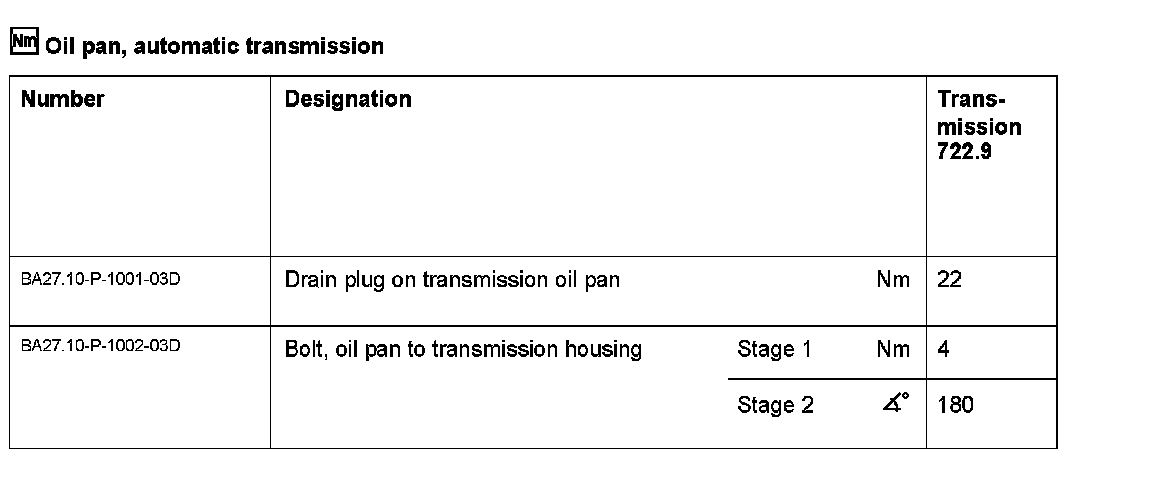

BA27.10-P-1000-03D Oil Pan, Automatic Transmission
Transmission 722.9
