Auxiliary Cabin Heater



BE83.70-P-1000-03E Test Data Of Heater Unit
- with Thermo Top V

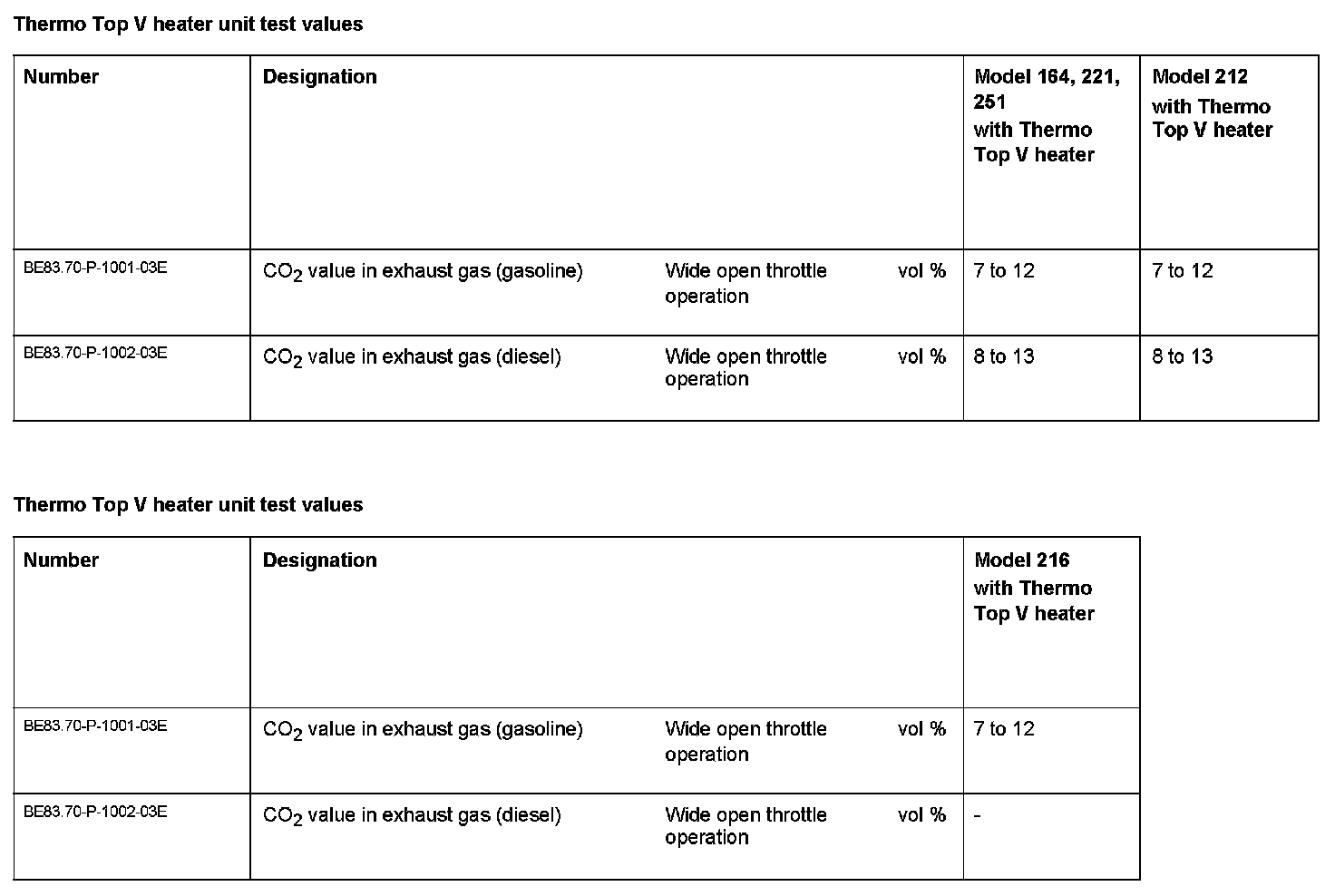

Thermo Top V heater unit test values


Thermo Top V Heater Unit Test Values:
