Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Drive Belts, Mounts, Brackets and Accessories >> Engine Mount >> BA22.10-P-1000-03E Engine Mount, Engine Support (Engine Side)

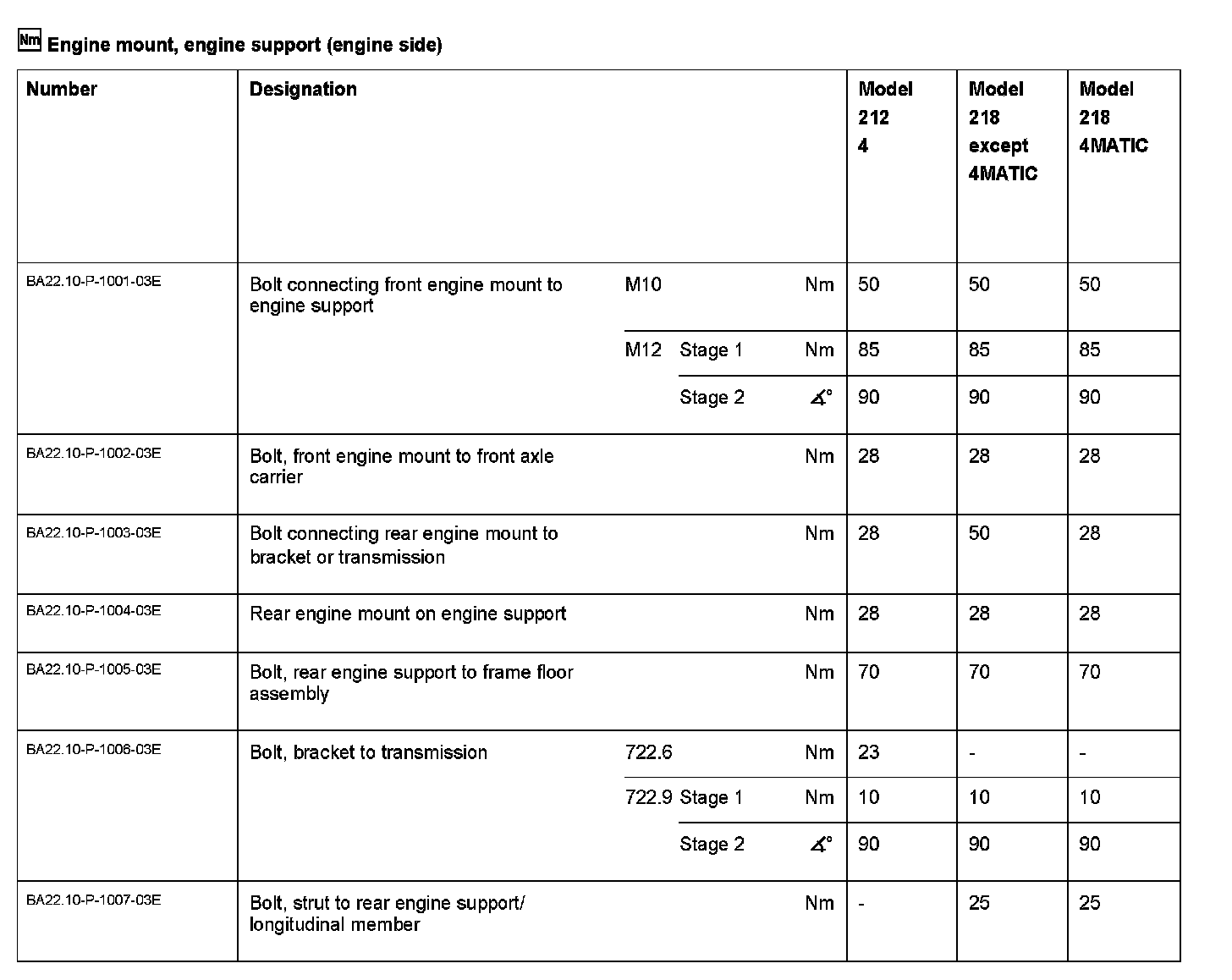

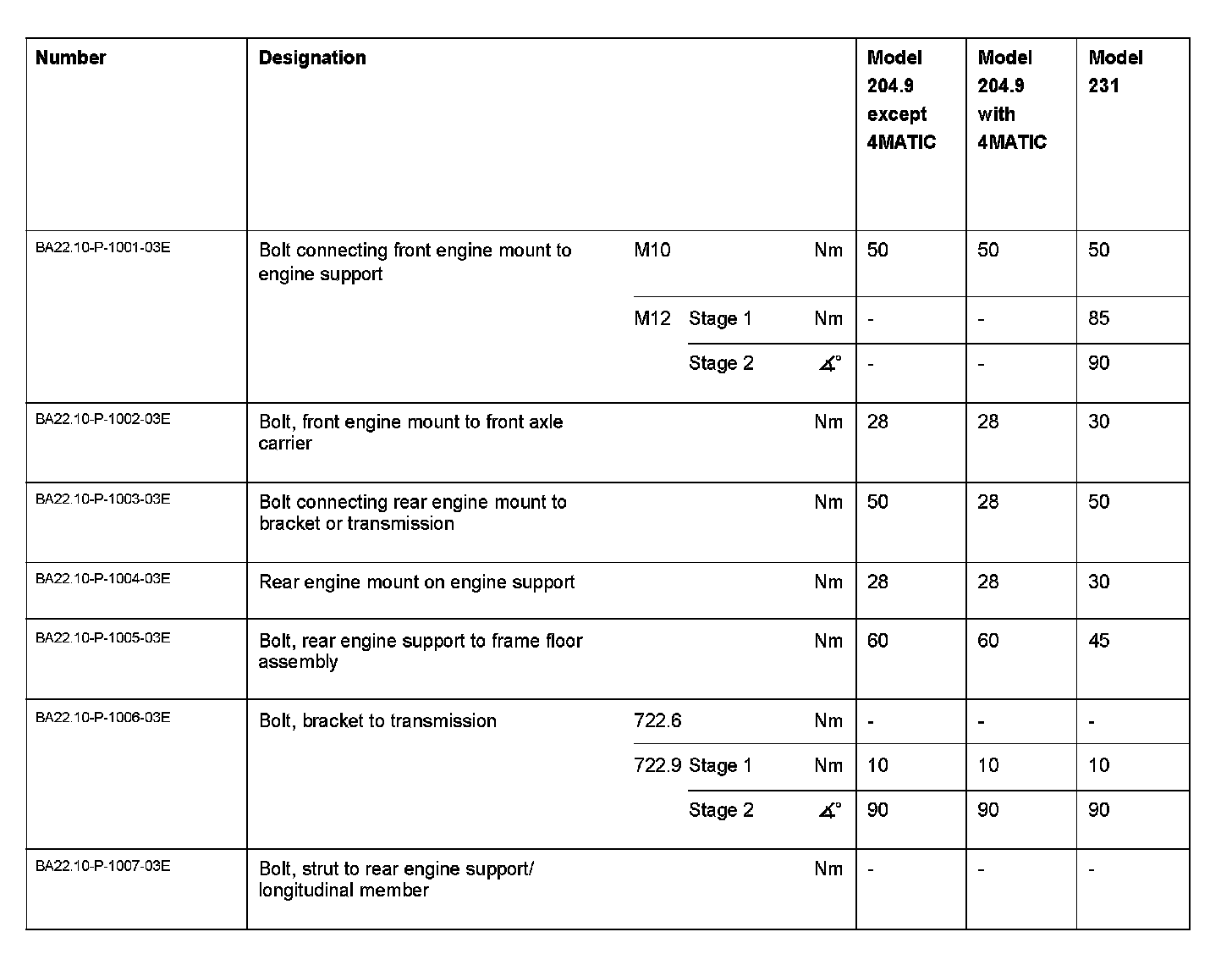

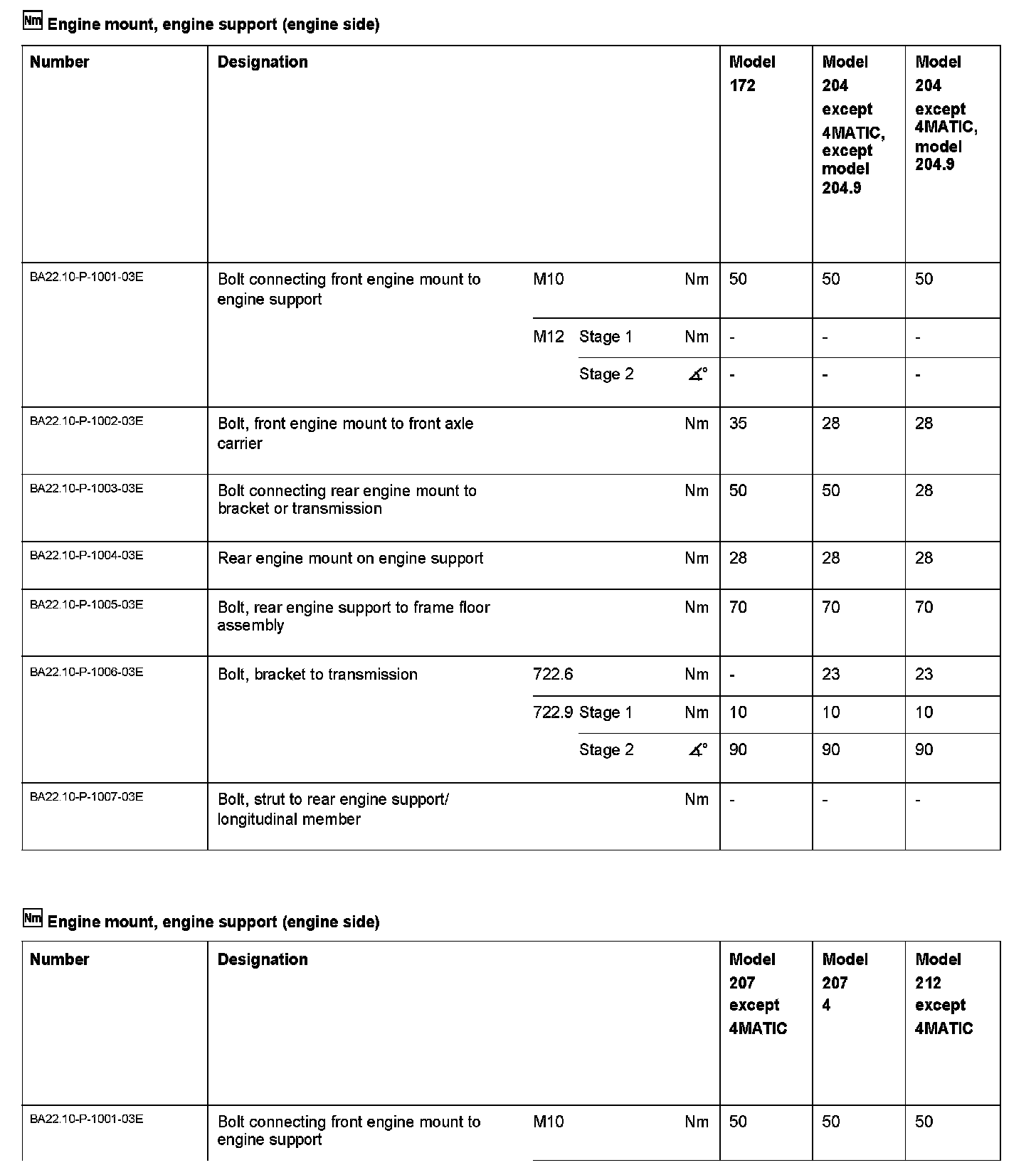

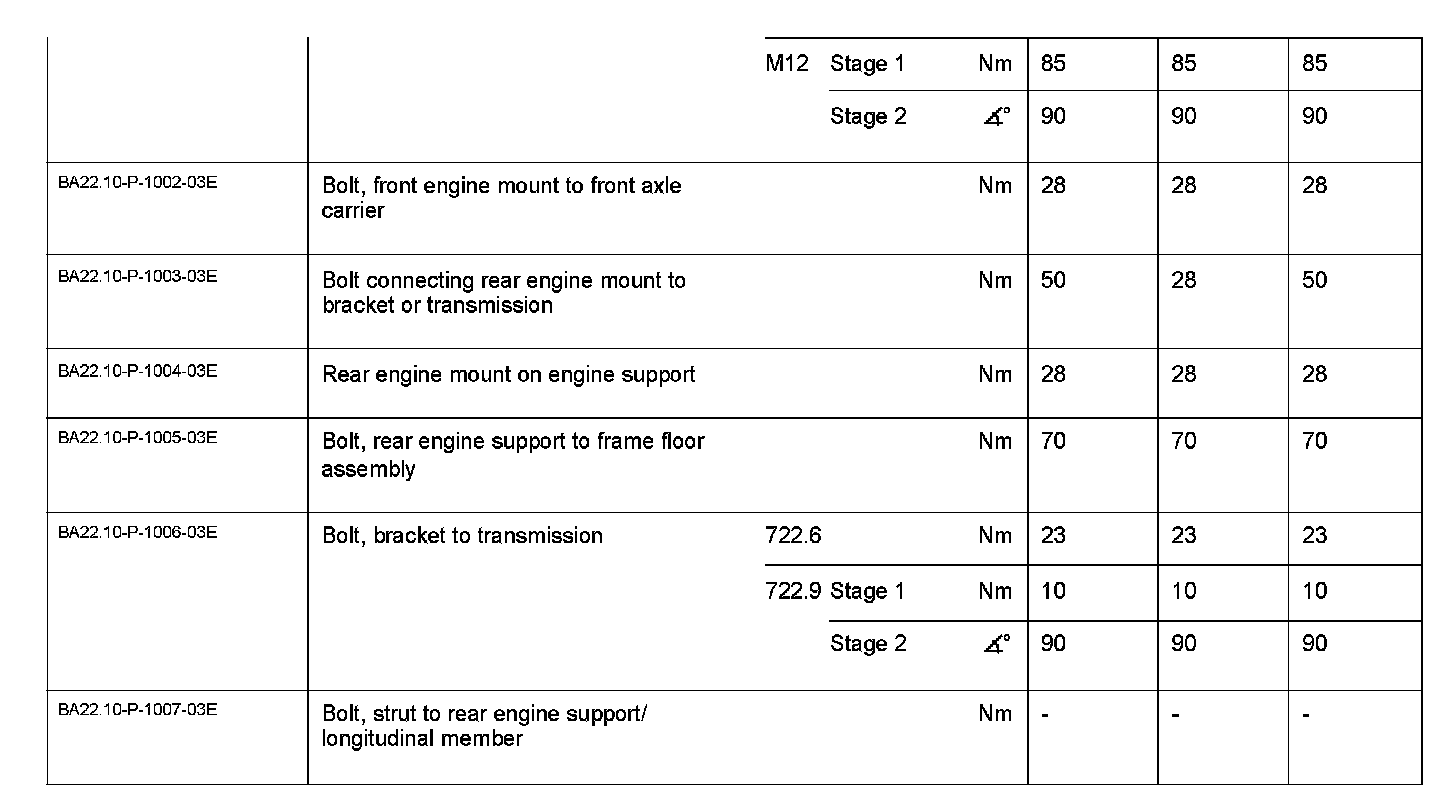

BA22.10-P-1000-03E Engine Mount, Engine Support (Engine Side)



BA22.10-P-1000-03E Engine Mount, Engine Support (Engine Side)
Models 172, 204, 207, 212, 218, 231
