Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> Rear Door

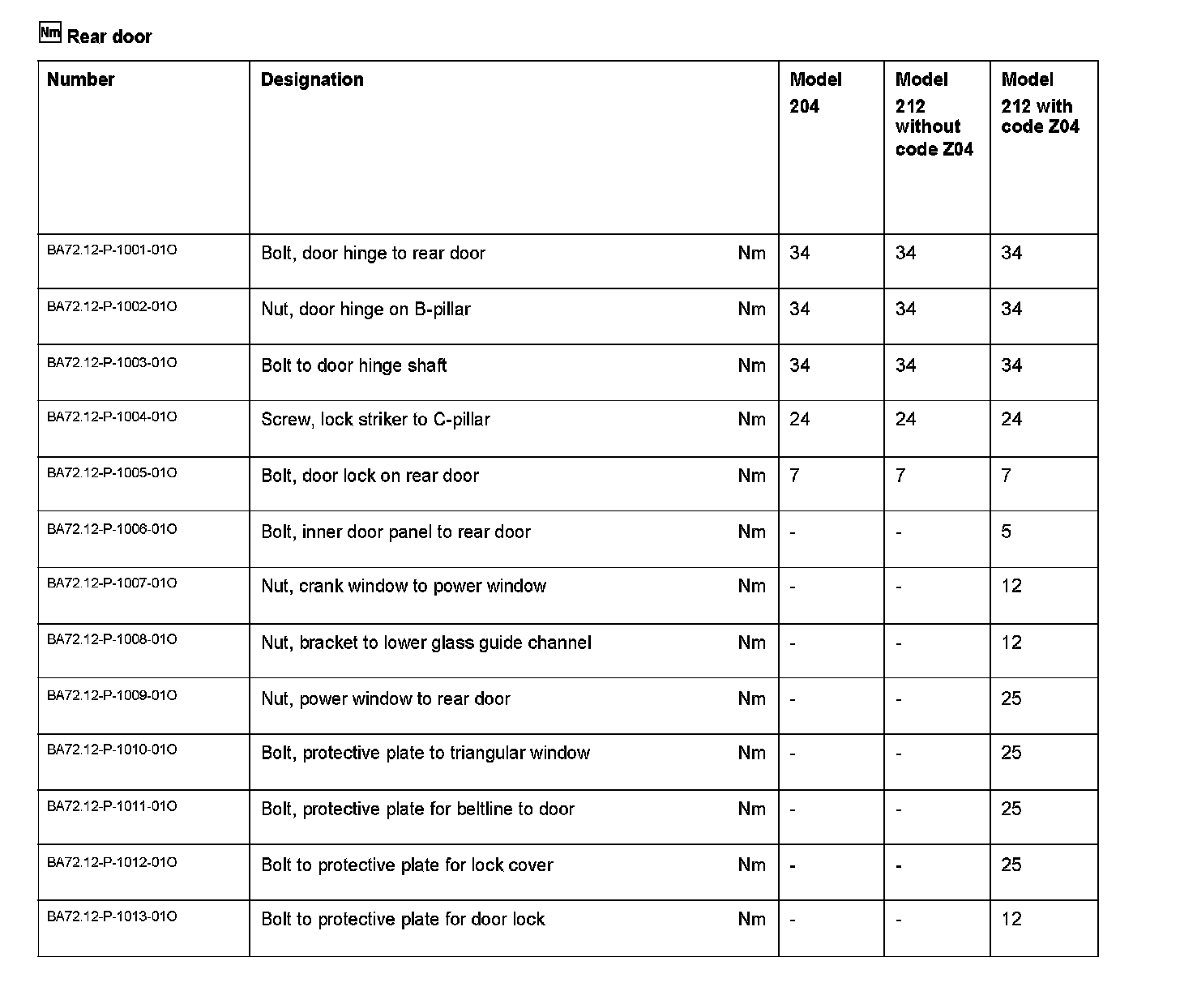

Rear Door



BA72.12-P-1000-01O Rear Door
Model 204, 212
