E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>
BE40.20-P-1000-07I Front Axle Toe
BE40.20-P-1000-07I Front Axle Toe
BE40.20-P-1001-07I Front axle toe

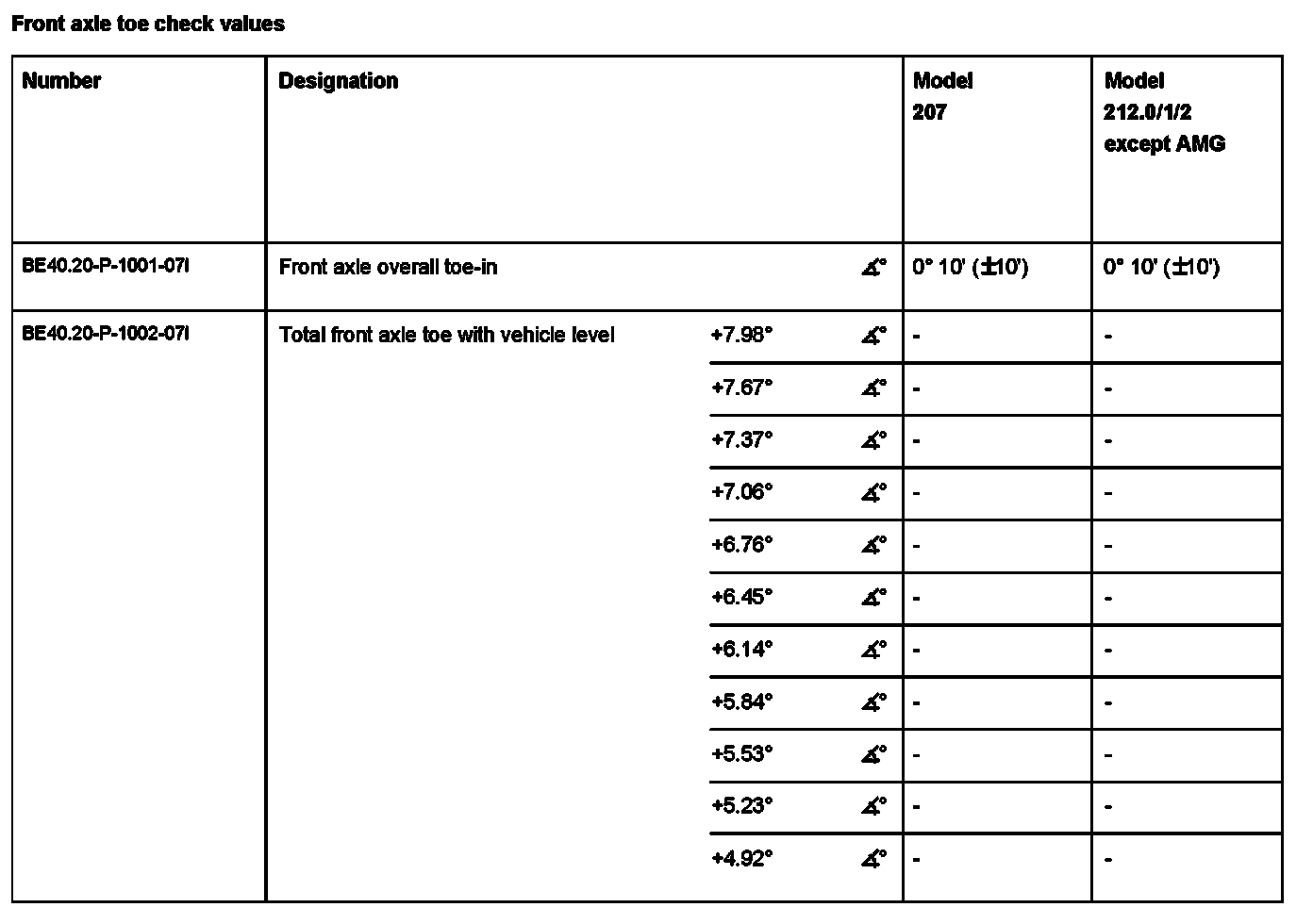

Front axle toe check values:

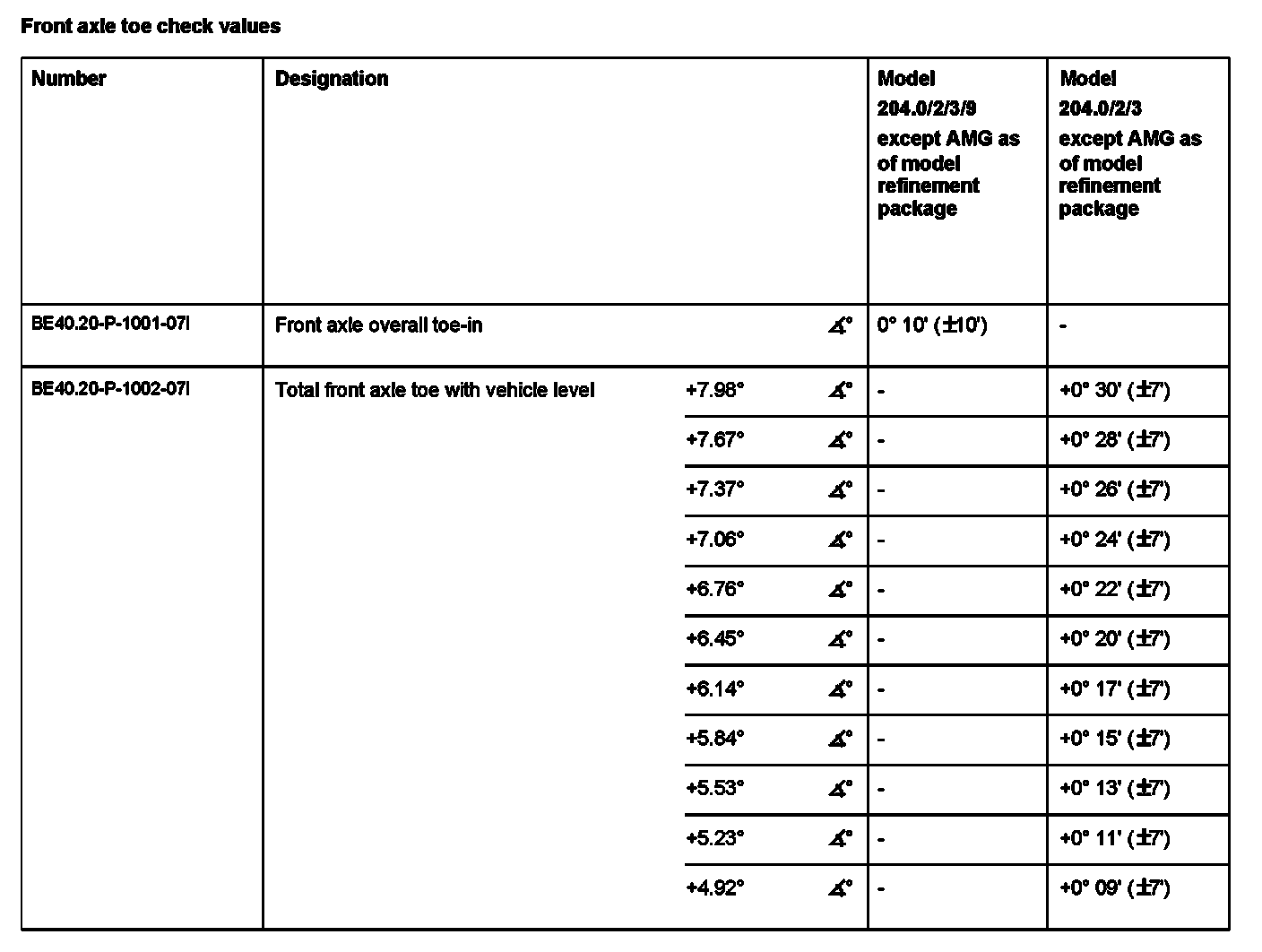

Front axle toe check values:
