AR91.60-P-0760CY Remove/Install Side Deployment Pressure Sensor

AR91.60-P-0760CY Remove/Install Side Deployment Pressure Sensor
MODEL 204.9, 212.0 /1 /2, 218.3

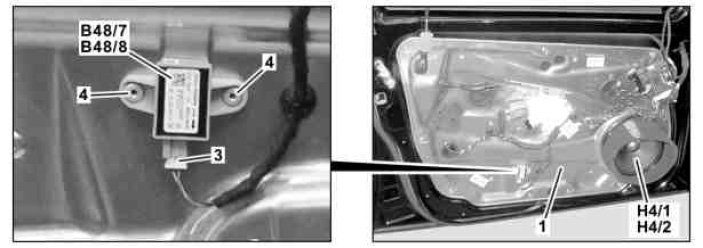

1 Front door door module
3 Electrical connector
4 Rivet

B48/7 Left front door pressure sensor
B48/8 Right front door pressure sensor
H4/1 Left front door speaker
H4/2 Right front door speaker





2 Rear door door module
5 Electrical connector
6 Rivet

B48/9 Left rear door pressure sensor (with code (293) Left and right rear sidebag)
B48/10 Right rear door pressure sensor (with code (293) Left and right rear sidebag)
