Fuel Gauge Sender: Service and Repair

AR47.10-P-7000EWA Remove/install Fuel Level Sensor
- MODEL 212, 218 with ENGINE 642, 651

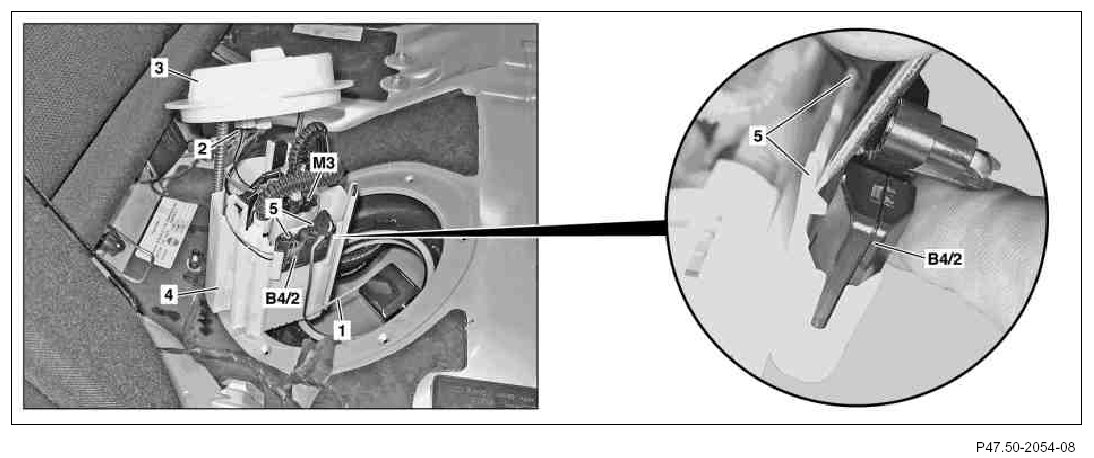

1 Float linkage
2 Electrical connector
3 Mounting cap
4 Splash bowl
5 Lock
B4/2 RH fuel tank fuel level indicator fill level sensor
M3 Fuel pump







6 Transfer unit
7 Float linkage
8 Electrical connector
9 Mounting cap
10 Lock
B4/1 LH fuel tank fuel level indicator fill level sensor














001 589 00 07 00, Claw-type wrench
