Refrigerant Pressure Sensor / Switch: Service and Repair
AR83.30-P-5430CW Remove/Install Refrigerant Pressure Sensor
Component Identification:

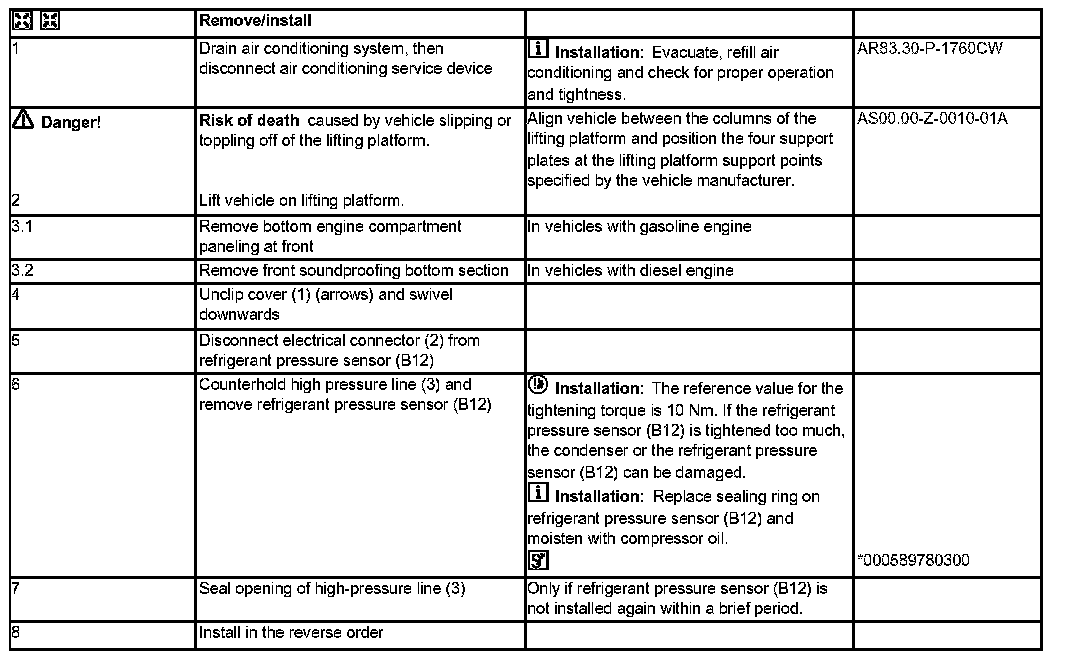

Steps 1 - 8:
Special Tools:
