AR54.65-P-0001EW Remove/Install Parktronic System (PTS) Sensors In Front Bumper



AR54.65-P-0001EW Remove/install Parktronic System (PTS) Sensors In Front Bumper
- with CODE (220) PARKTRONIC
- with CODE (230) Advanced Parking Guidance

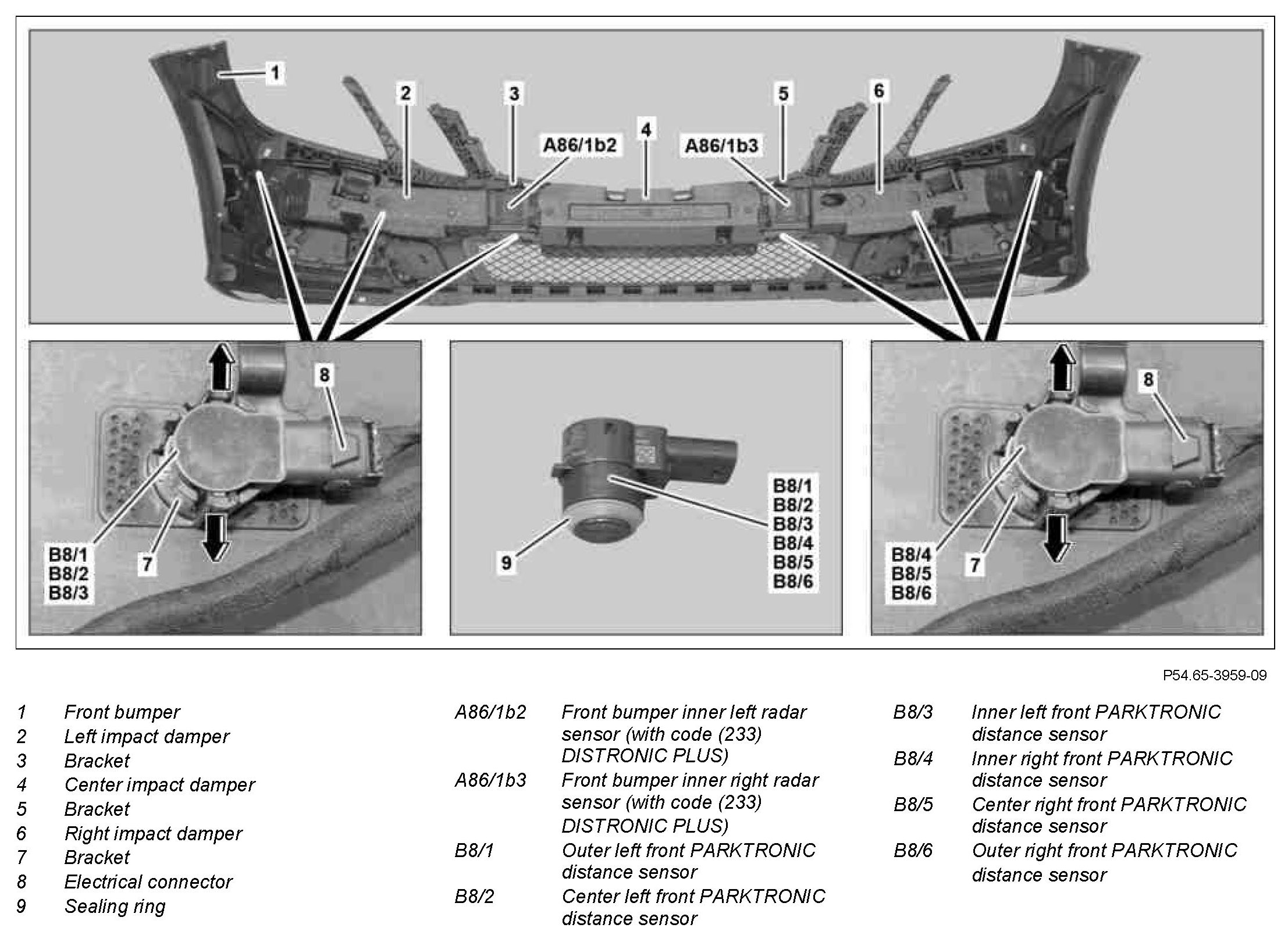

Component Identification:

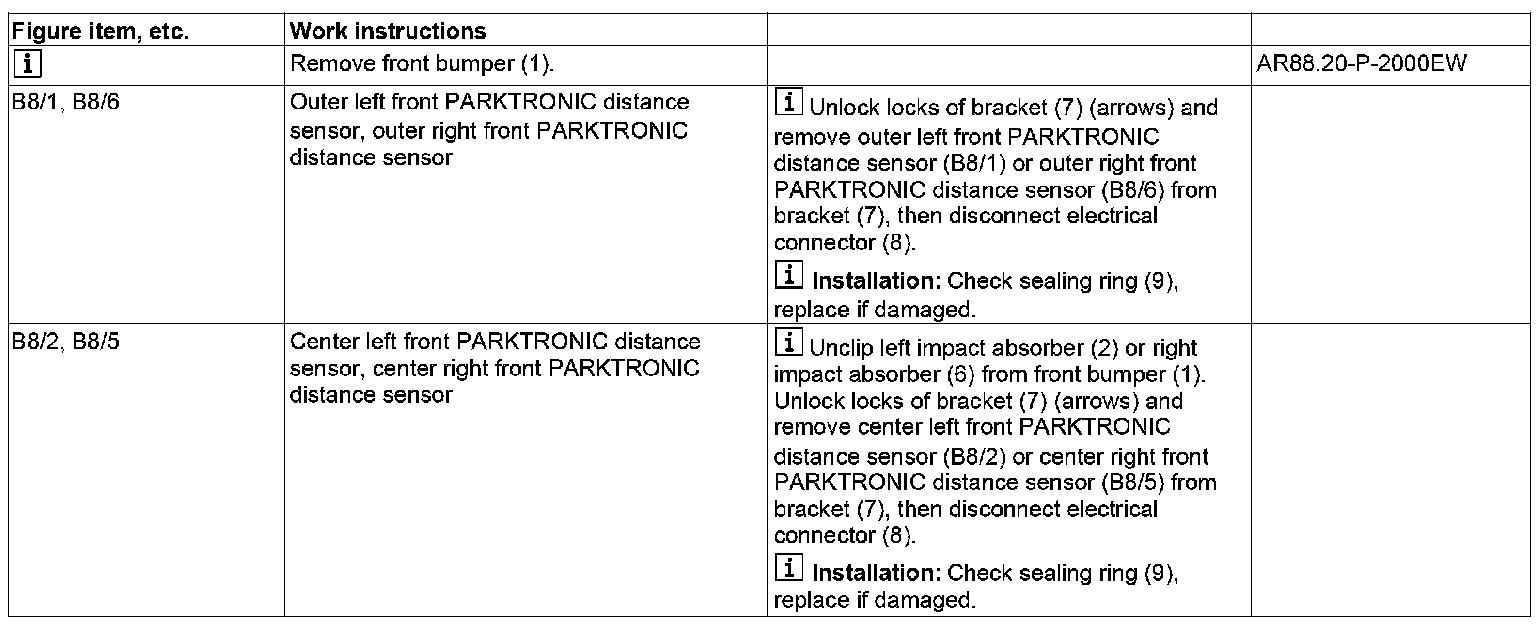

B8/1B8/6 - B8/2,B8/5:

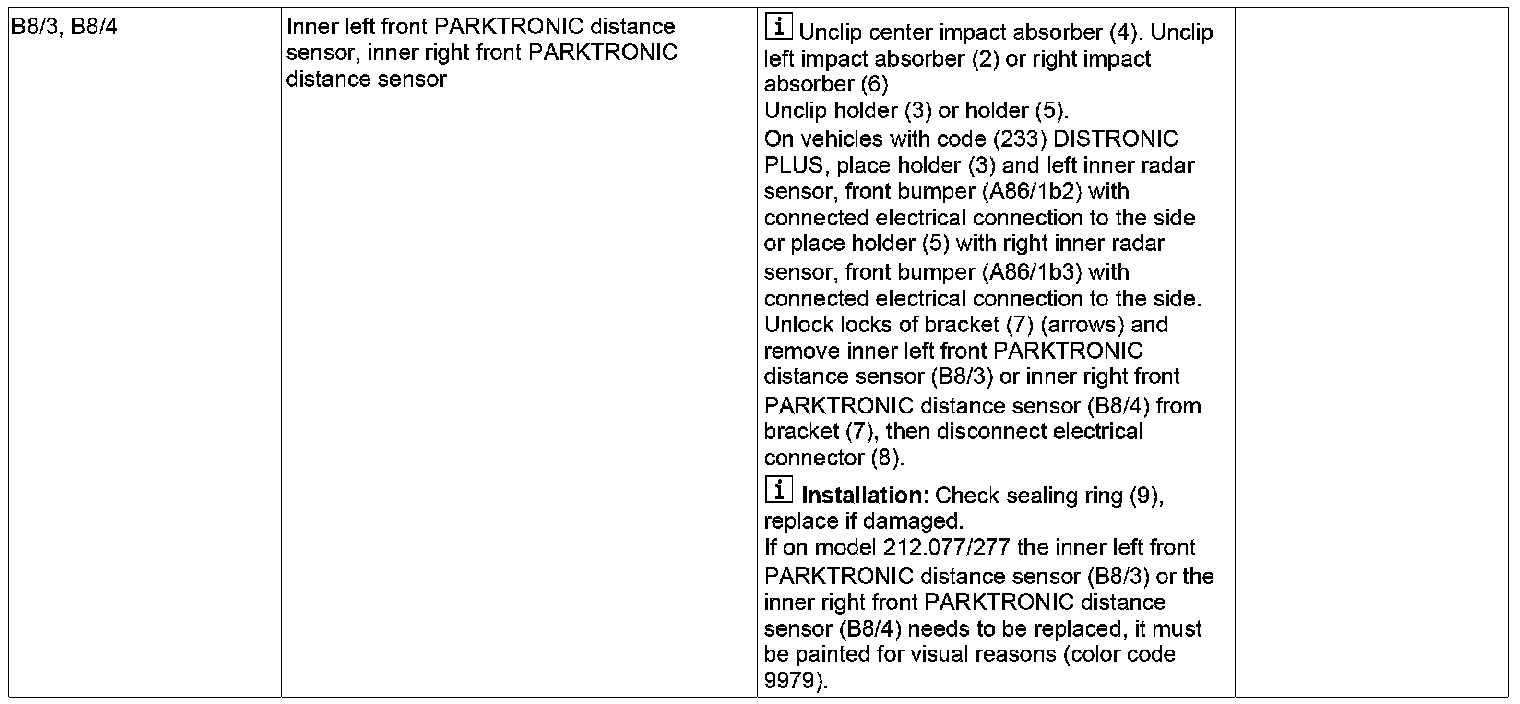

B8/3,B8/4:
