AR91.60-P-0750EW Remove/Install Frontal Acceleration Sensor
AR91.60-P-0750EW Remove/Install Frontal Acceleration Sensor
AR91.60-P-0750EW Remove/Install Frontal Acceleration Sensor

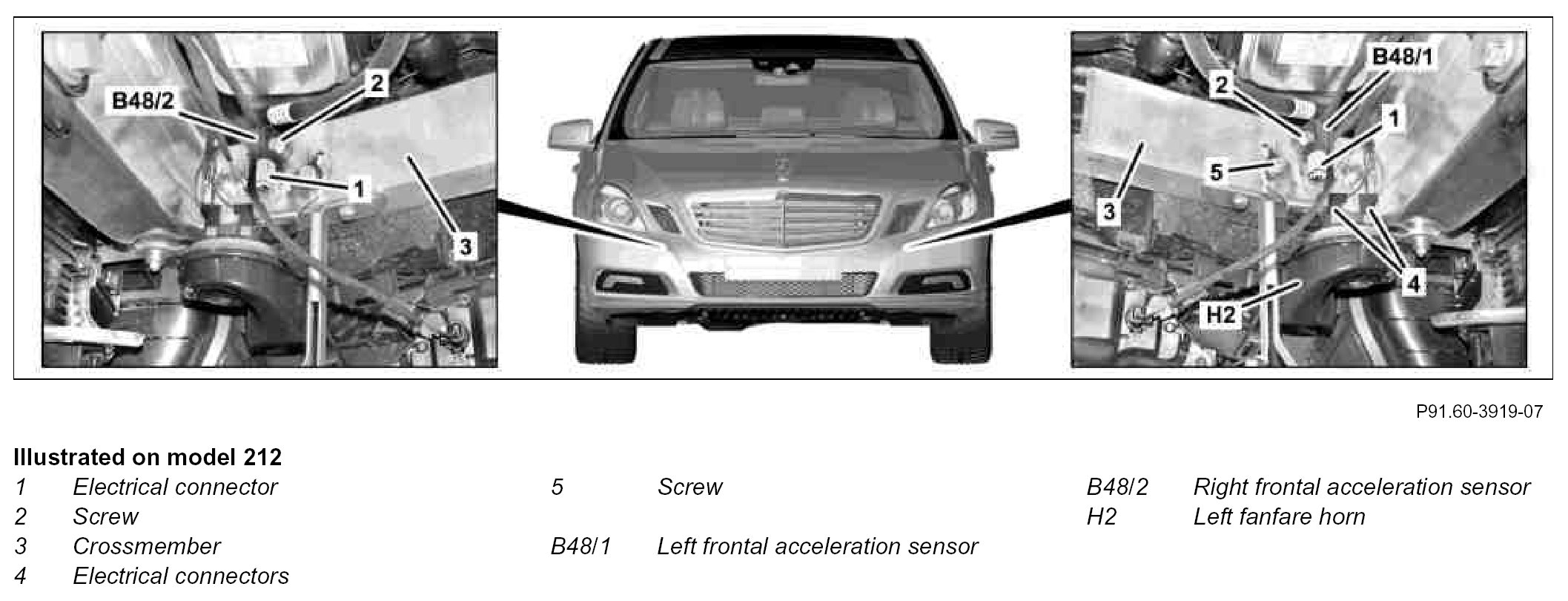

Component Identification:

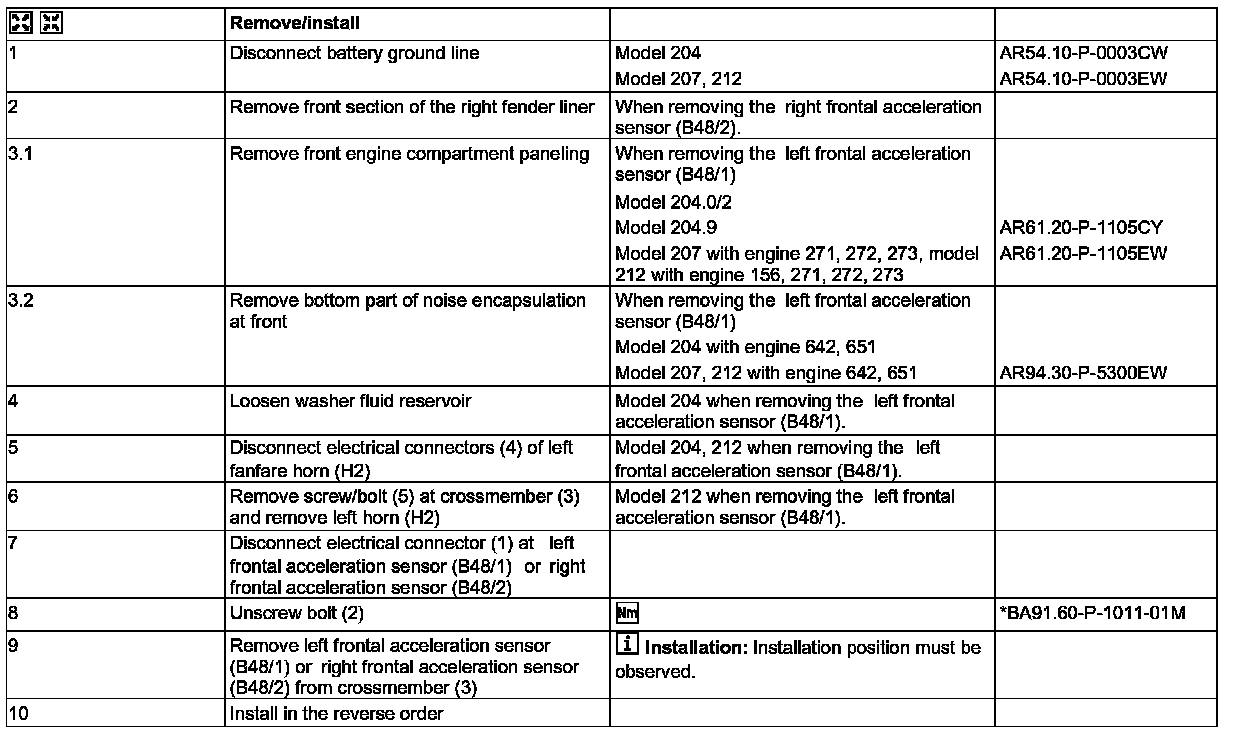

Steps 1 - 10:
Airbag:
