AR91.40-P-0683CW Remove, Replace and Install Rear Center Seat Belt

AR91.40-P-0683CW Remove, Replace and Install Rear Center Seat Belt
MODEL 204.0, 212.0
- with CODE (287) Through-loading feature
MODEL 204.2 /9, 212.2

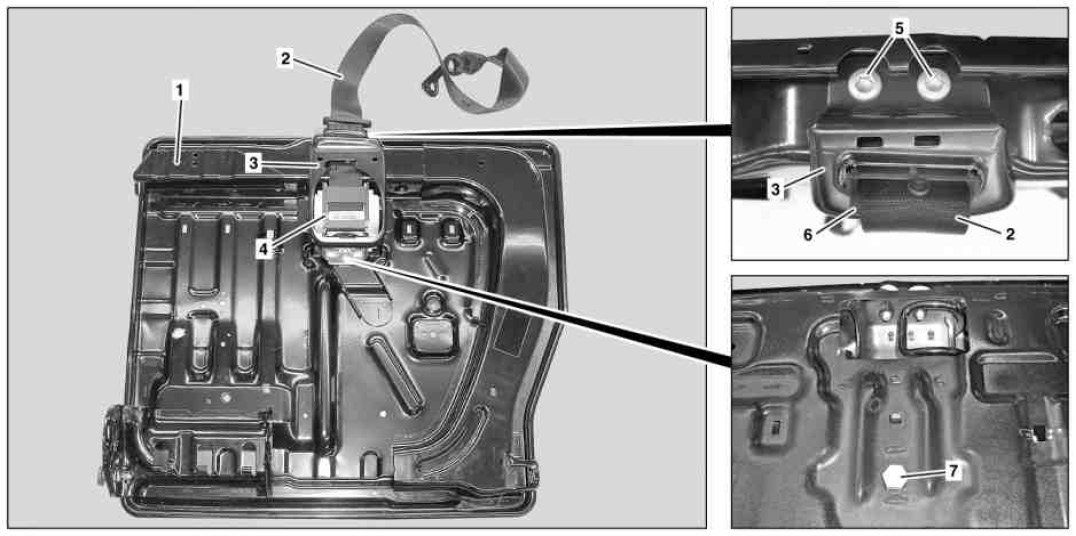

Illustrated on model 204.0

1 Backrest frame
2 Seat belt
3 Reinforcement
4 Automatic belt retractor
5 Bolts
6 Seat belt guide
7 Screw
