AR91.40-P-0681EW Remove/Install Rear Seat Belts

AR91.40-P-0681EW Remove/install Rear Seat Belts

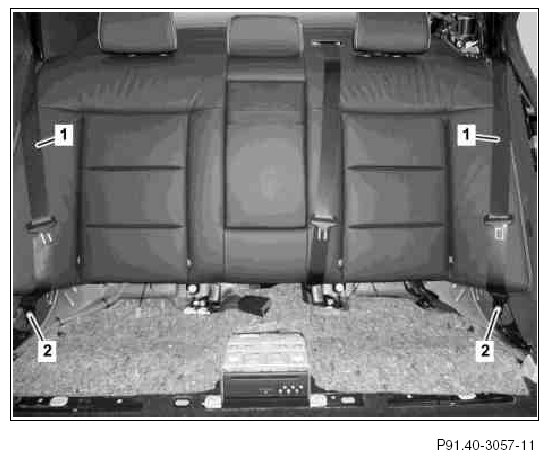

Shown on vehicle without code (224) Design individual rear seat system







1 Seat belt
2 Screw

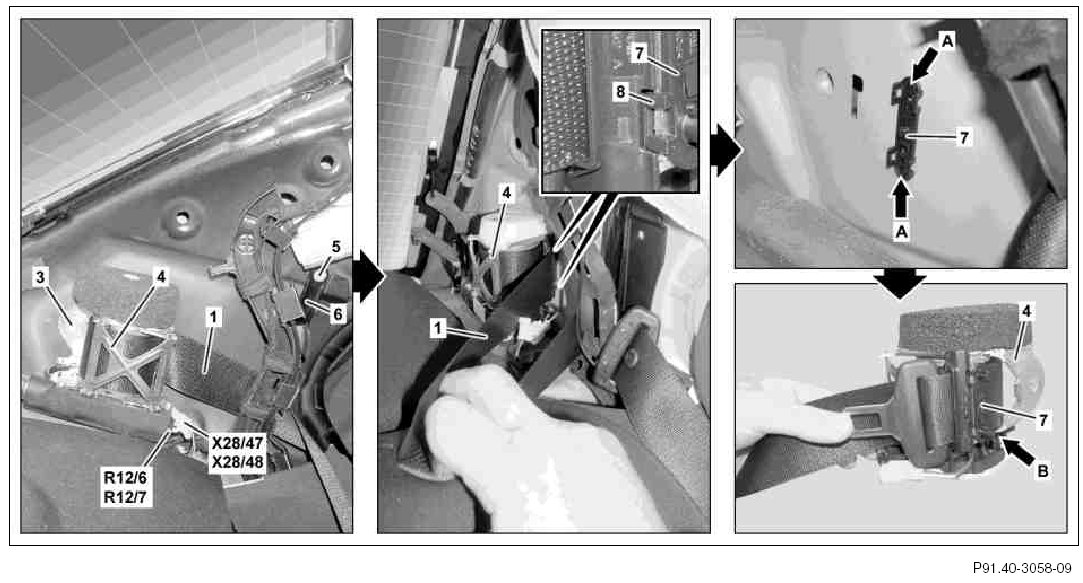

1 Seat belt
3 Screw
4 Automatic belt retractor
5 Screw
6 Belt guide
7 Bracket
8 Catch hook
R12/6 Left rear emergency tensioning retractor squib
R12/7 Right rear emergency tensioning retractor squib
X28/47 Left rear emergency tensioning retractor squib electrical connector
X28/48 Right rear emergency tensioning retractor squib electrical connector













203 589 04 33 00, Removal lever
