Home >> Mercedes Benz >> 2011 >> E 350 BLUETEC (212.024) V6-3.0L DSL Turbo (642.850) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt >> Service and Repair >> AR91.40-P-0630CW Remove/Install Seat Belt With Emergency Tensioning Retractor

AR91.40-P-0630CW Remove/Install Seat Belt With Emergency Tensioning Retractor



AR91.40-P-0630CW Remove/Install Seat Belt With Emergency Tensioning Retractor

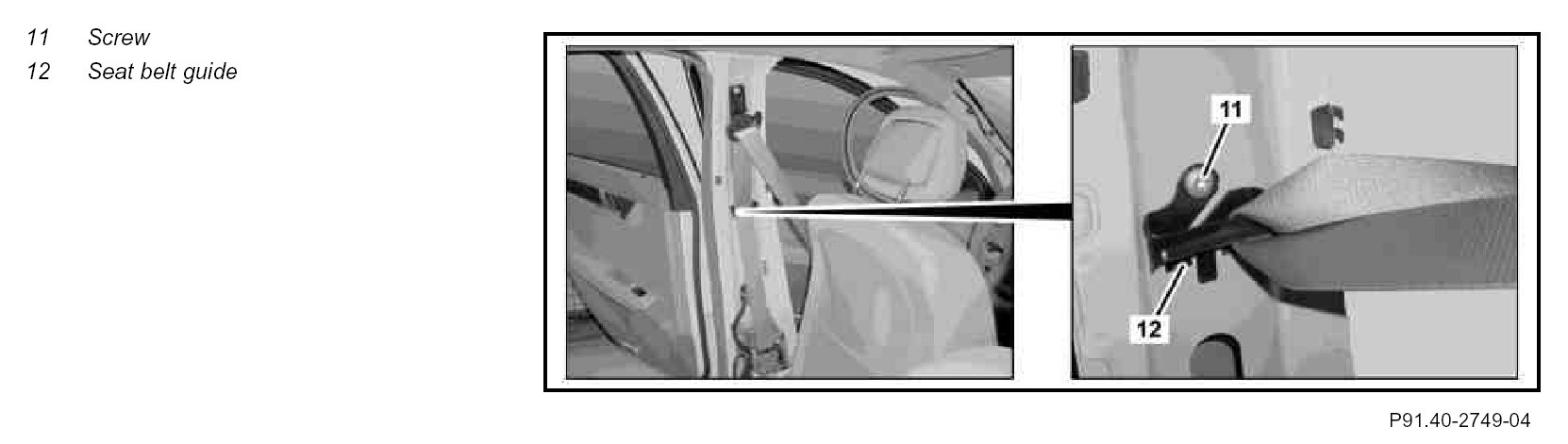

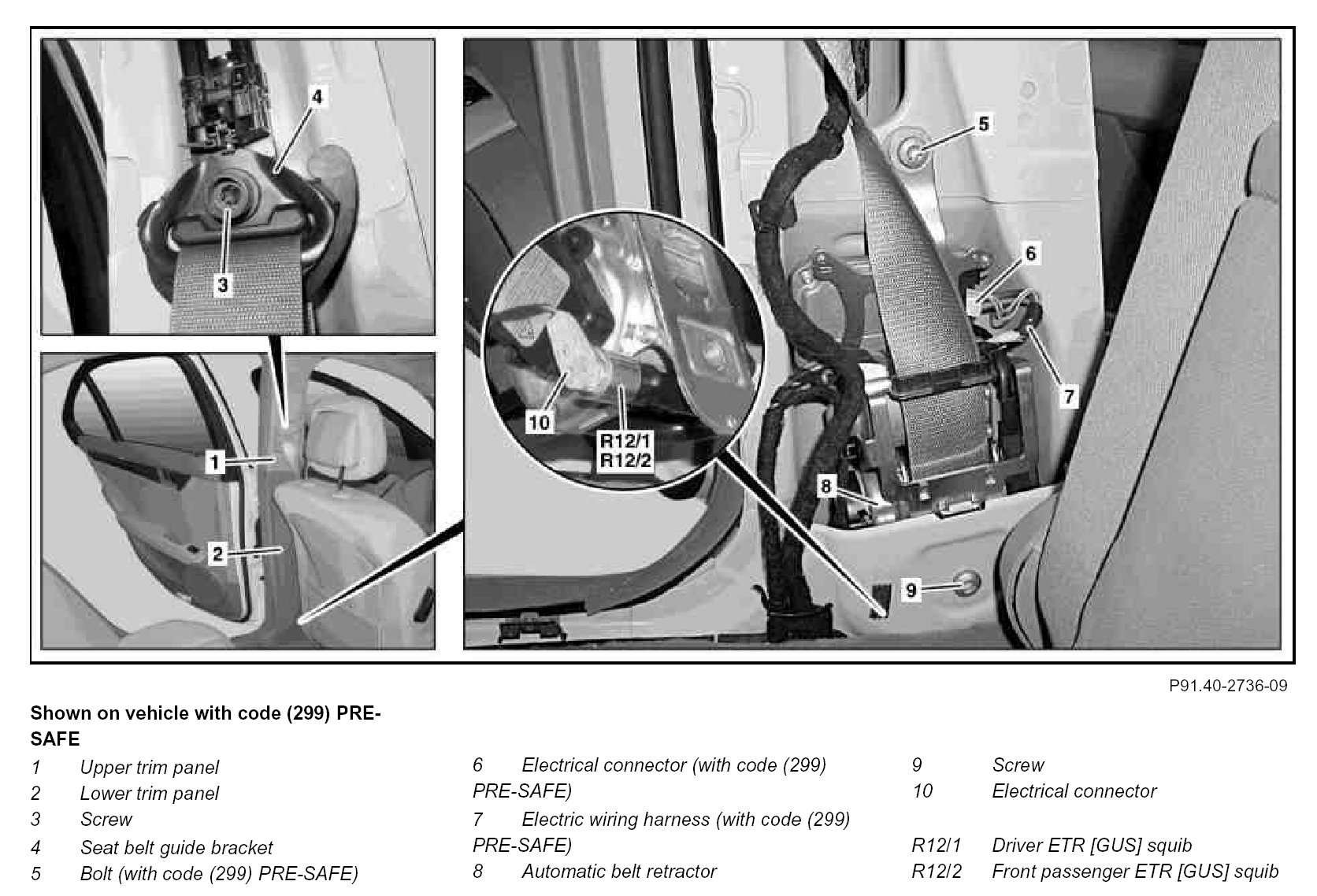

Component Identification:




Component Identification:

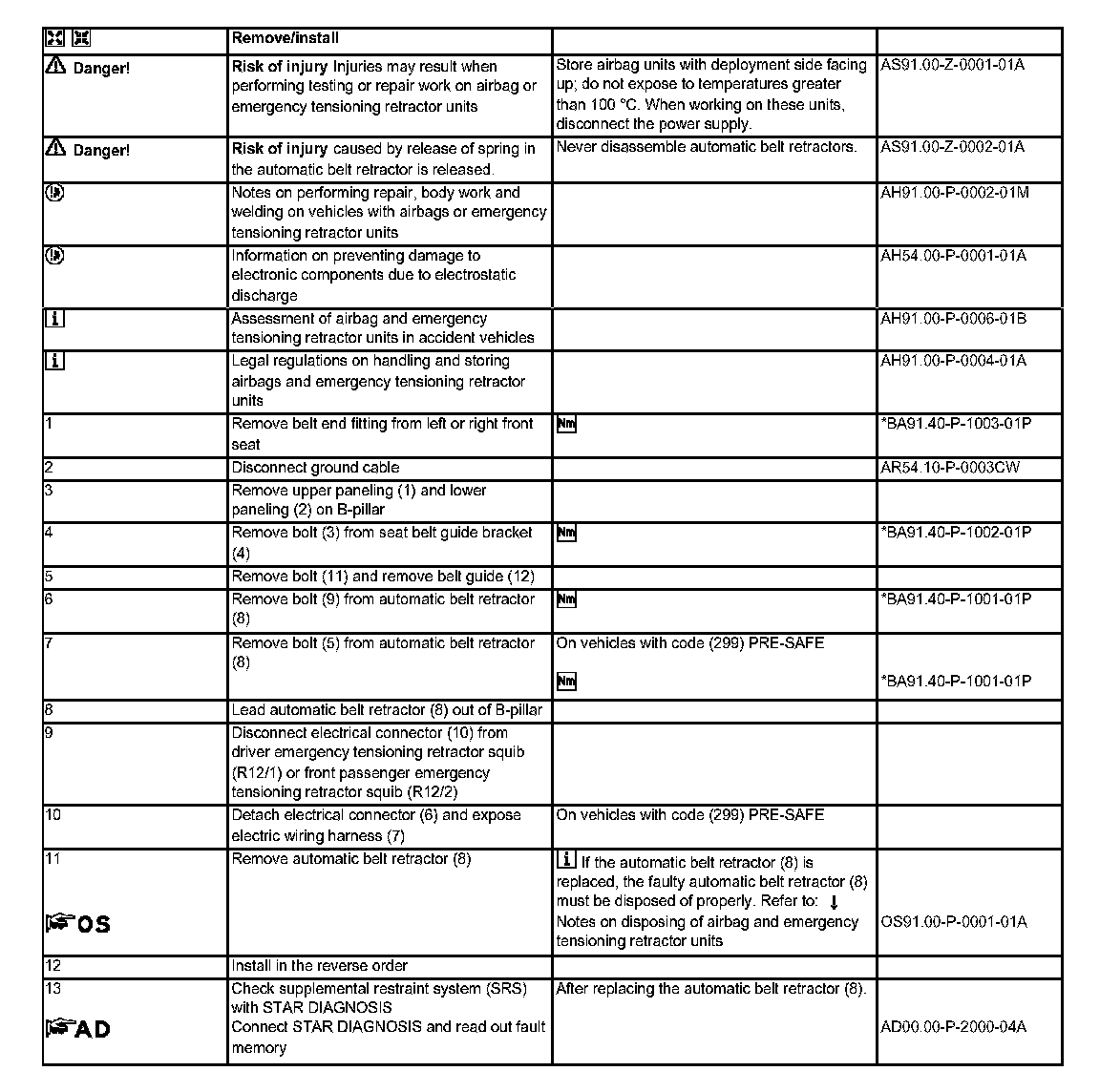

Steps 1 - 13:

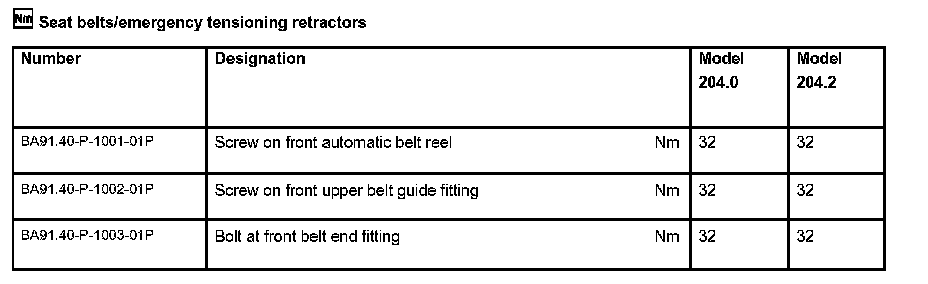

Seat Belts/Emergency Tensioning Retractors:
