AR91.40-P-1516EW Remove/Install Rear Seat Belt Buckle



AR91.40-P-1516EW Remove/Install Rear Seat Belt Buckle

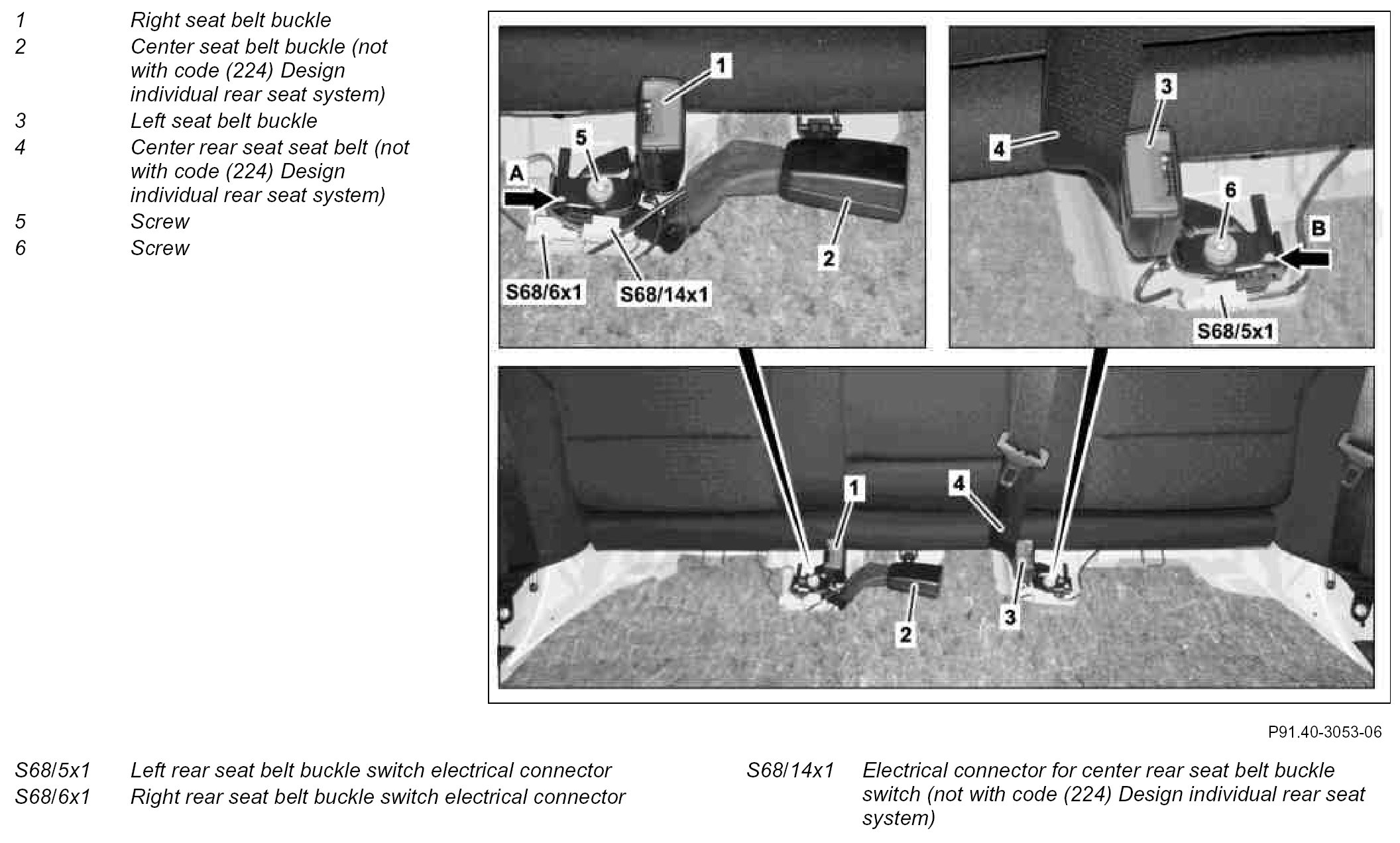

Component Identification:




Modification Notes:

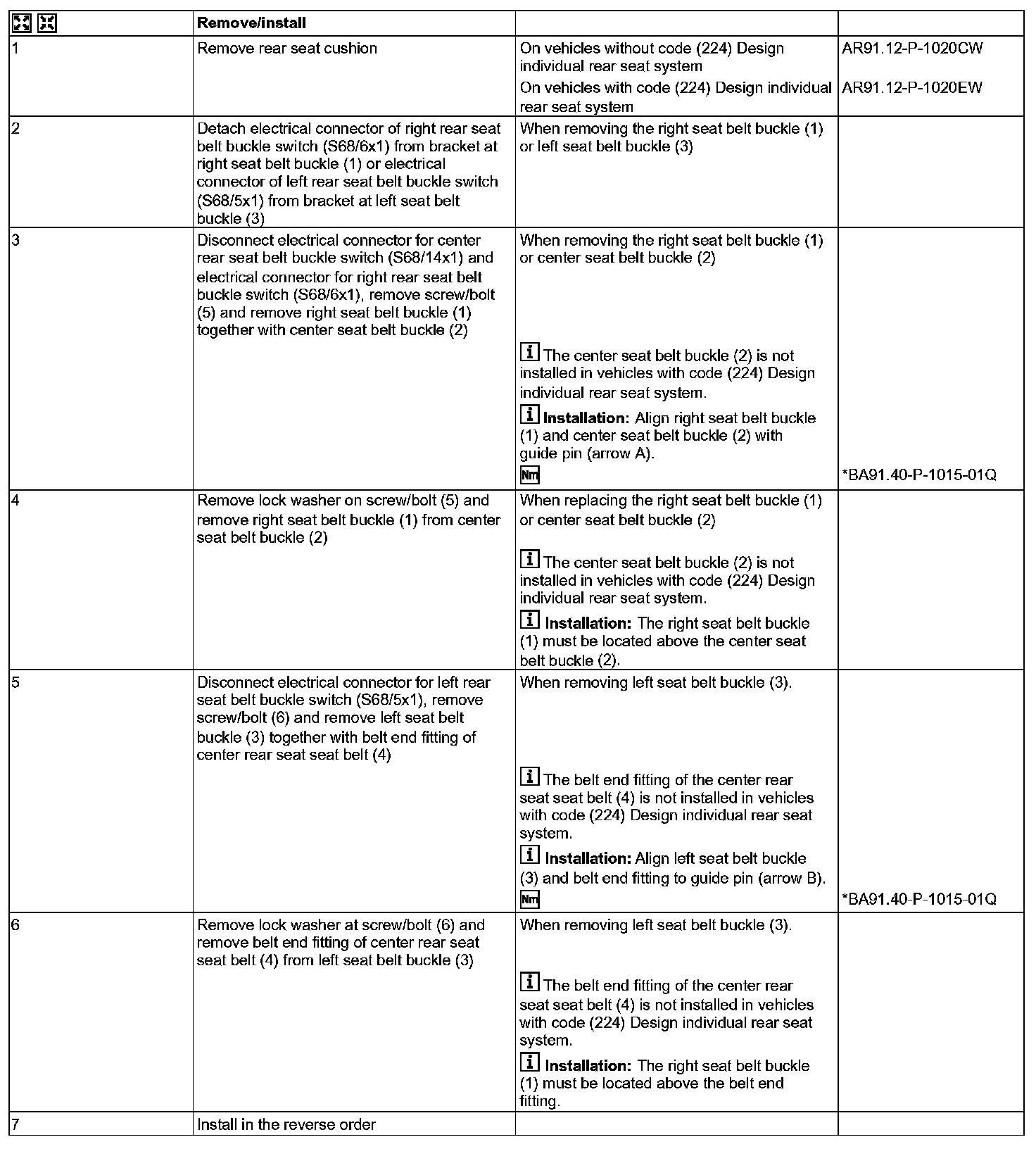

Steps 1 - 7:

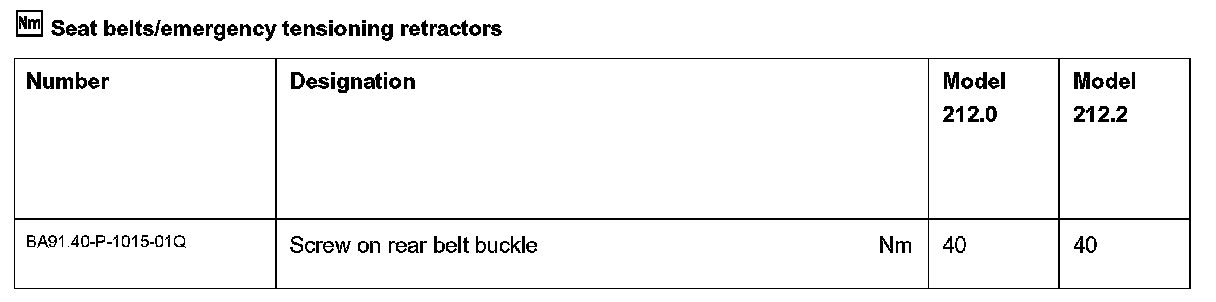

Seat Belts/Emergency Tensioning Retractors:
