AR91.60-P-0950EX Remove/Install Pedestrian Protection Sensor



AR91.60-P-0950EX Remove/Install Pedestrian Protection Sensor
- with CODE (U60) Pedestrian protection
- Sensor at front crossmember

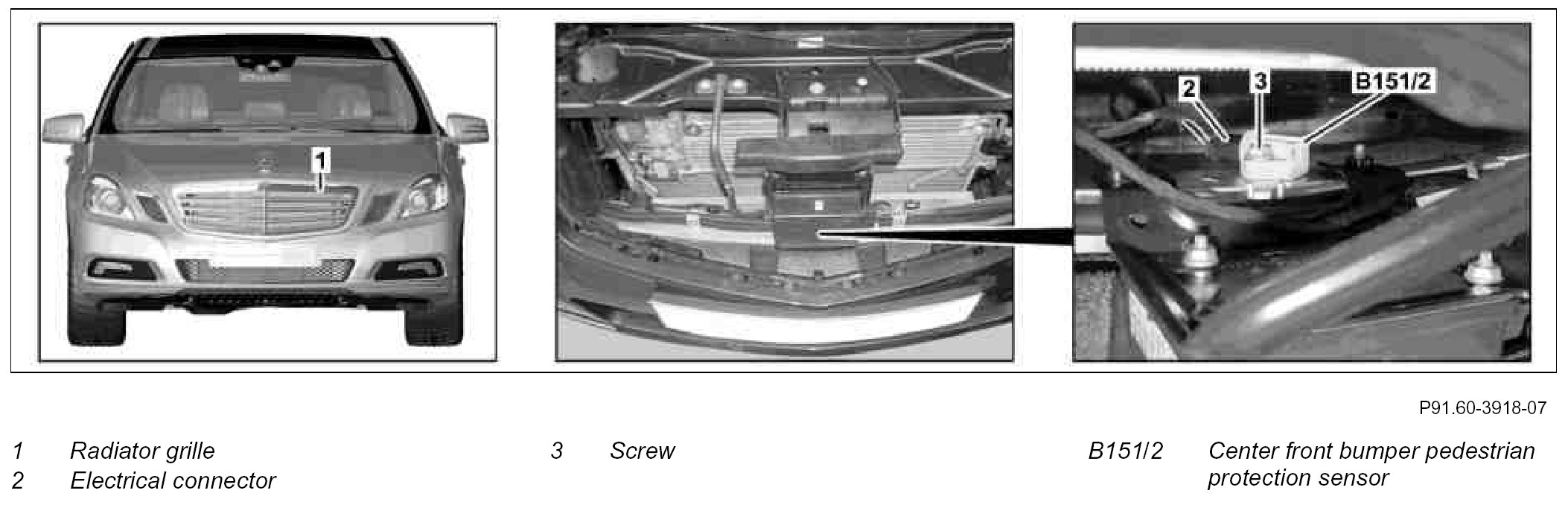

Component Identification:

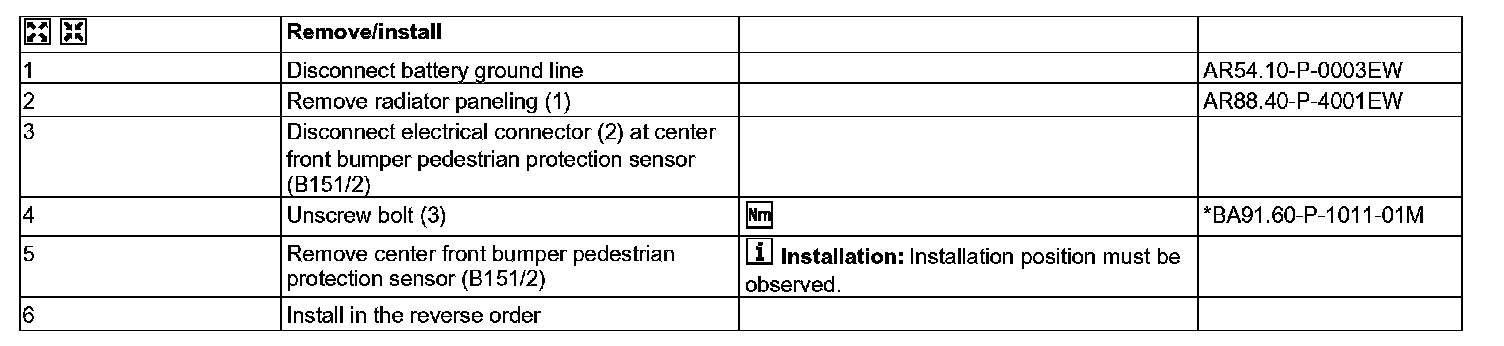

Steps 1 - 6:

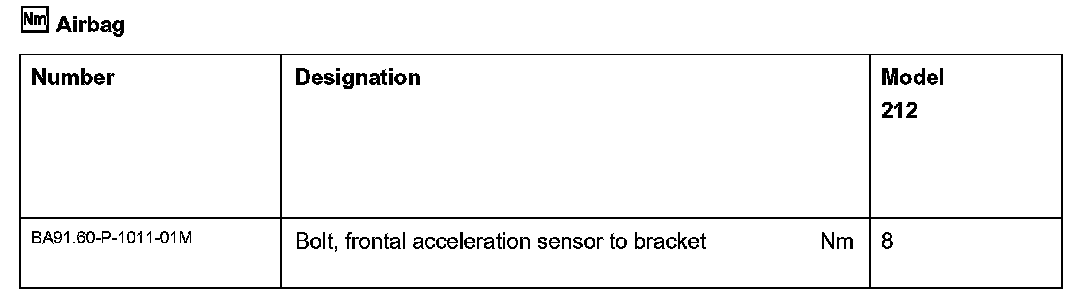

Airbag:
