AR91.60-P-0950EW Remove/Install Pedestrian Protection Sensor



AR91.60-P-0950EW Remove/Install Pedestrian Protection Sensor
- with CODE (U60) Pedestrian protection
- Sensors at front bumper

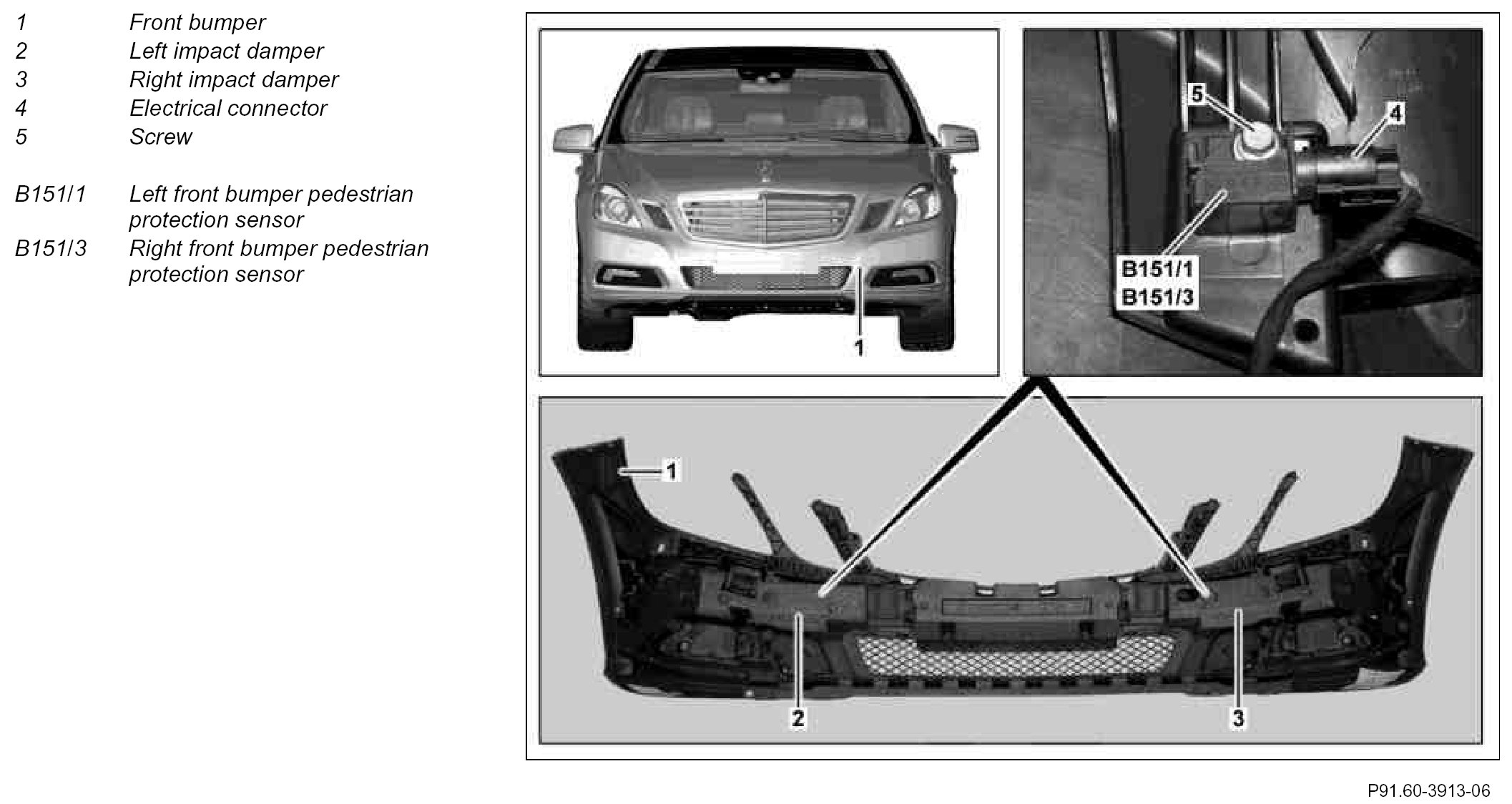

Component Identification:

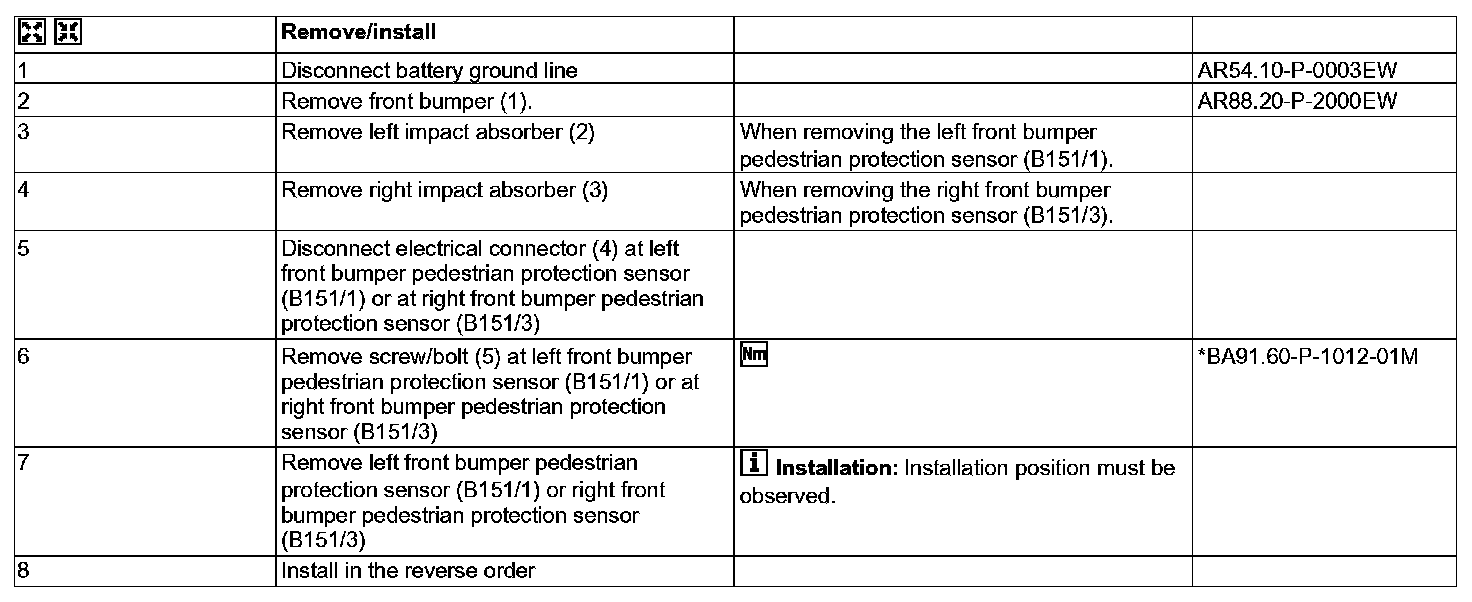

Steps 1 - 8:

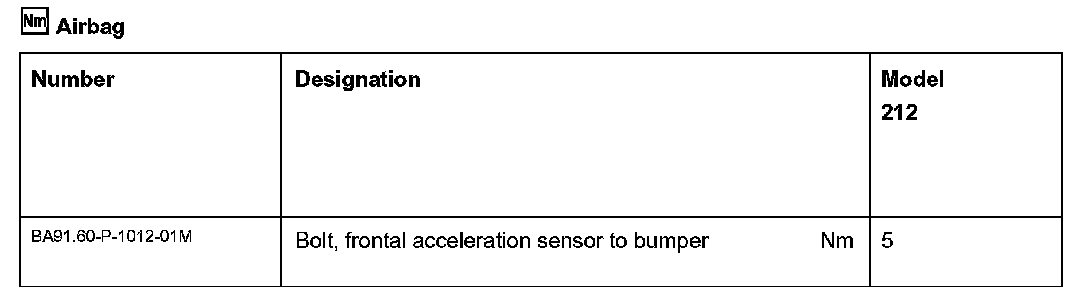

Airbag:
