AR91.60-P-0920EW Remove/Install Engine Hood Clamping Lever



AR91.60-P-0920EW Remove/Install Engine Hood Clamping Lever
- with CODE (U60) Pedestrian protection

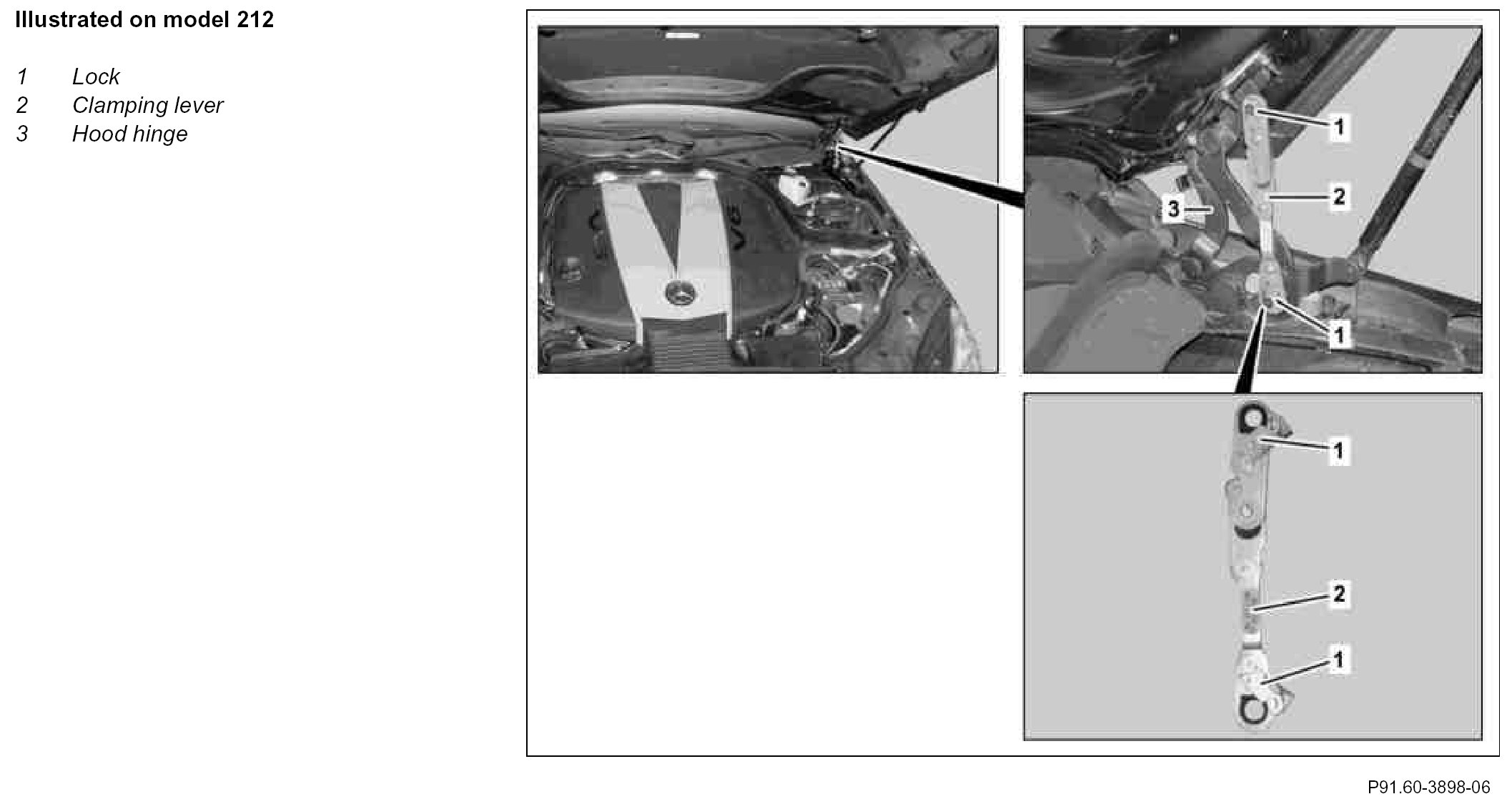

Component Identification:

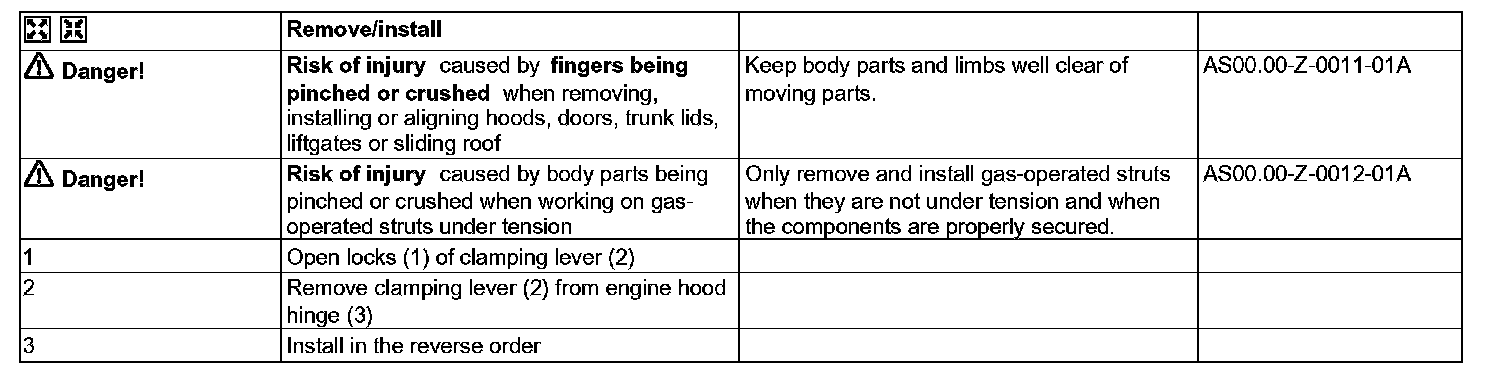

Steps 1 - 3:
